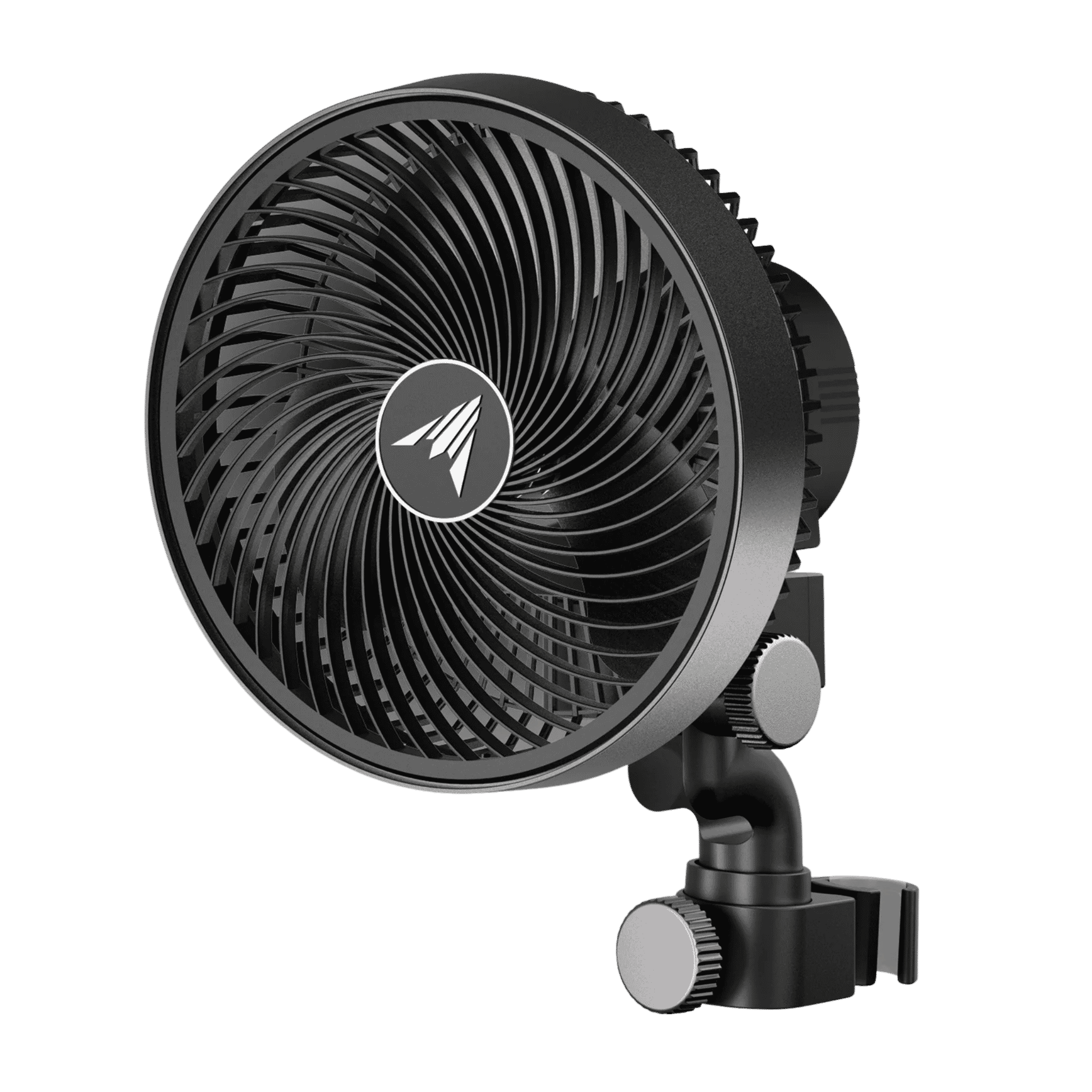

AC Infinity CLOUDRAY S6 — 6-inch Oscillating EC Clip Fan with IP54 Rating for Grow Tents
AC Infinity CLOUDRAY S6 specifications — airflow speed range & power ratings
AC Infinity CLOUDRAY S9 — 9-inch Oscillating EC Clip Fan with IP54 Rating for Grow Tents
AC Infinity CLOUDRAY S9 specifications — airflow speed range & power ratings

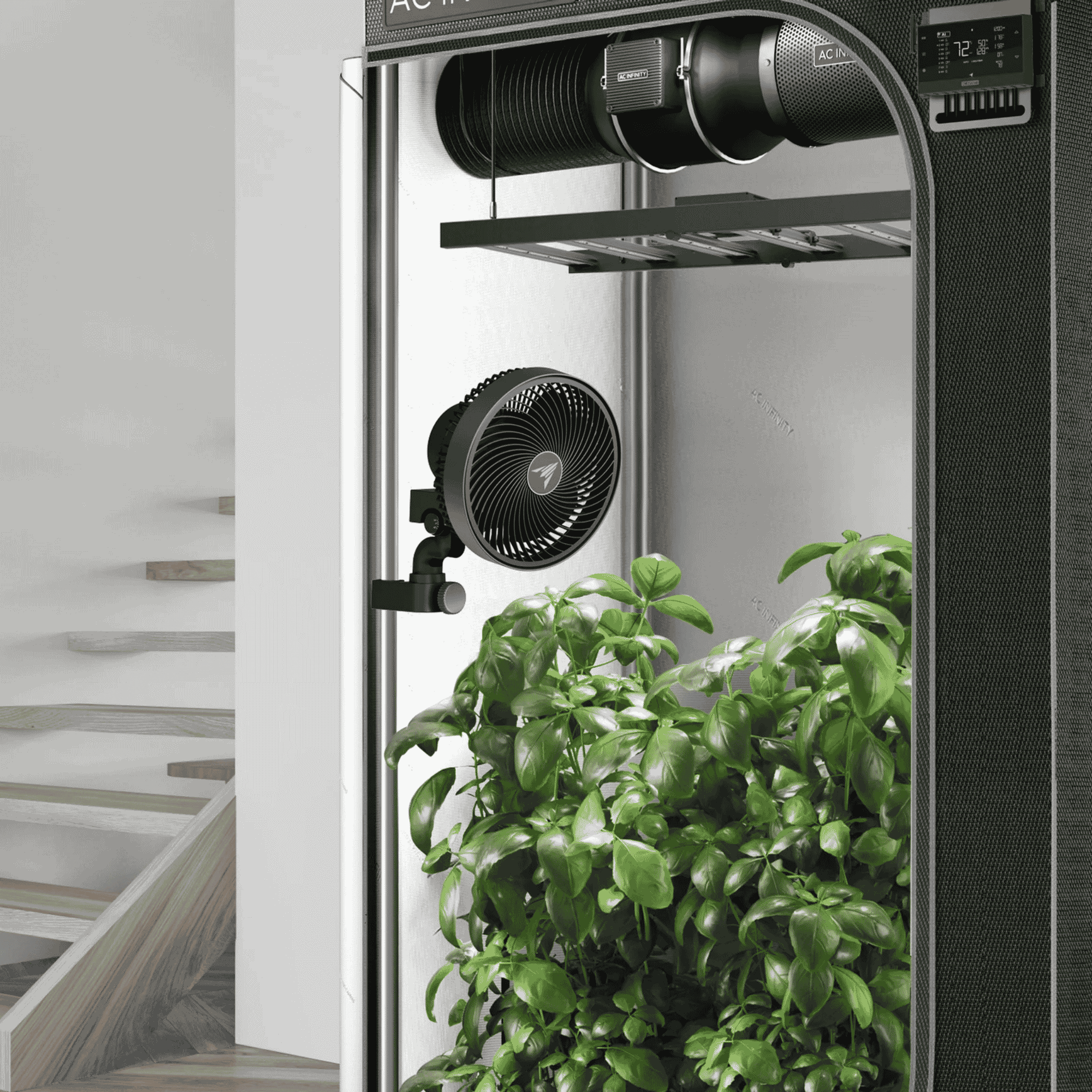

AC Infinity CLOUDRAY S concept art — oscillating clip fan in grow tent plant circulation
AC Infinity CLOUDRAY S4 compact circulator — small footprint for tight grow tent corners
AC Infinity CLOUDRAY S as circulator — directional airflow to strengthen plant stems
AC Infinity CLOUDRAY S customisable oscillation — programmable sweep angles & speeds
AC Infinity CLOUDRAY S dependable — long-life EC motor with dual ball bearings
AC Infinity CLOUDRAY S robust build — reinforced housing for 24-hour continuous duty
AC Infinity CLOUDRAY S robust build — IP54-rated for humid grow environments

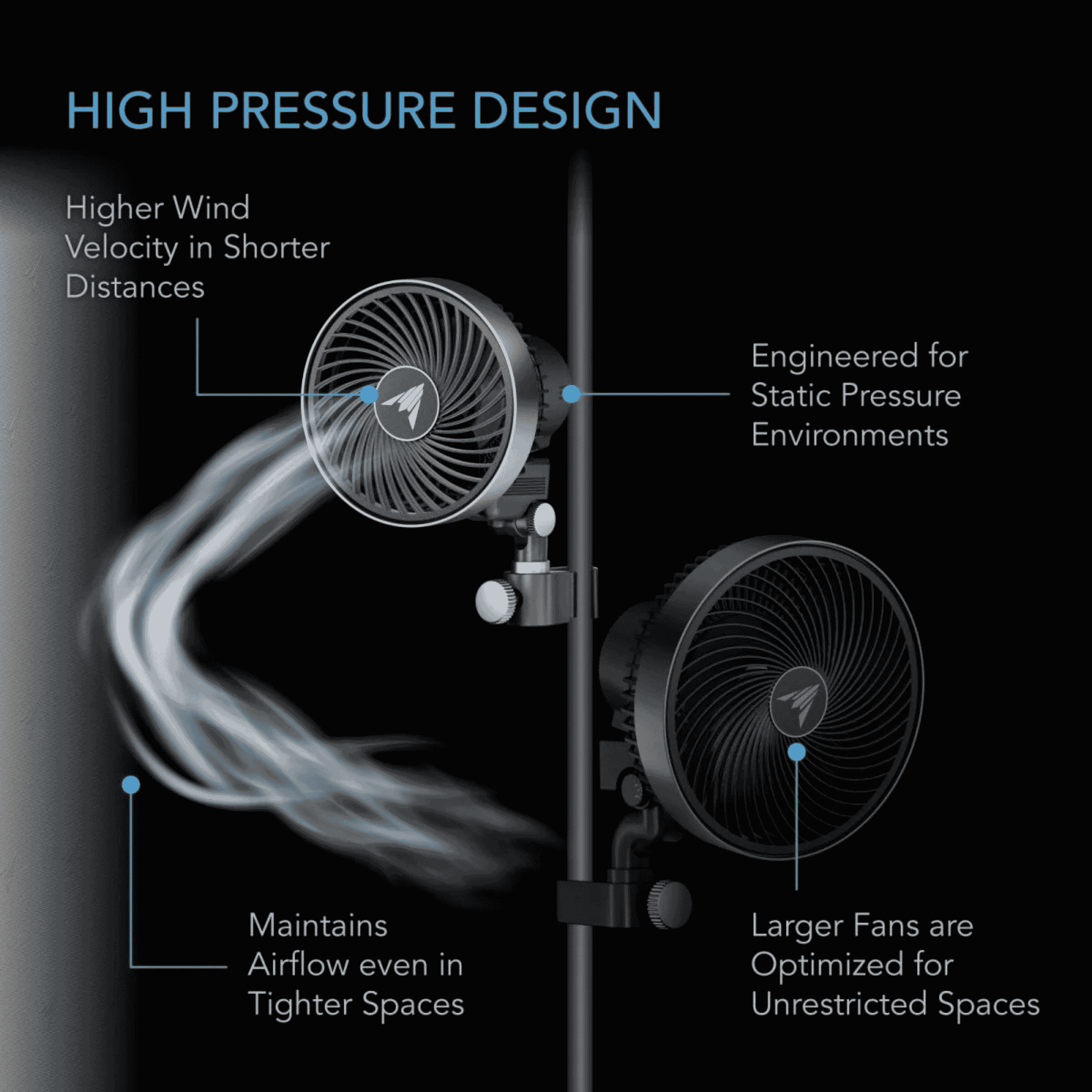

AC Infinity CLOUDRAY S high pressure — strong static pressure for ducted application
AC Infinity CLOUDRAY S tailored airflow — 10-speed PWM control for precise circulation
chevron_leftchevron_right

AC Infinity Cloudray S Oscillating Axial Clip Fan

$114.99
$114.99
Tax included. Shipping calculated at checkout.

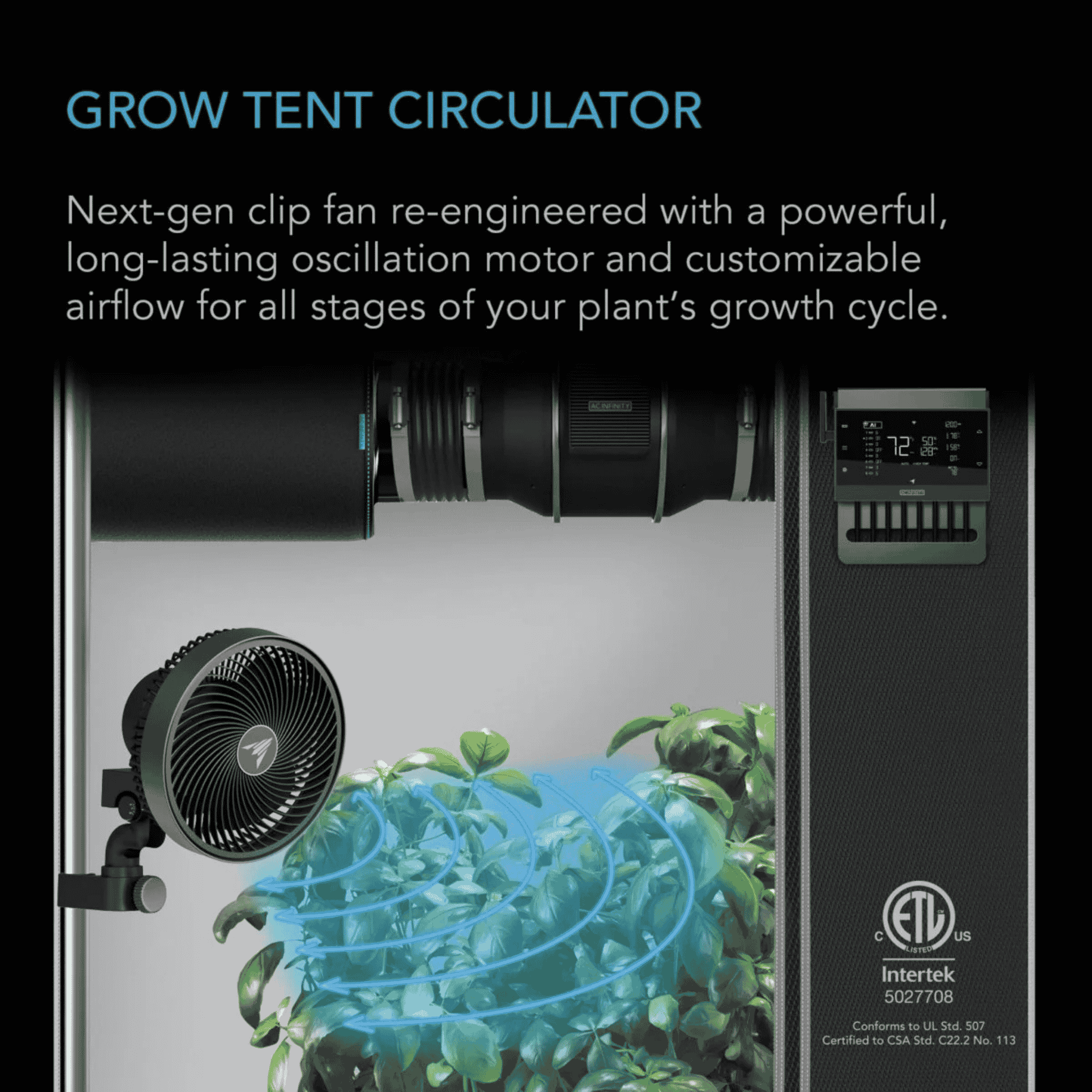

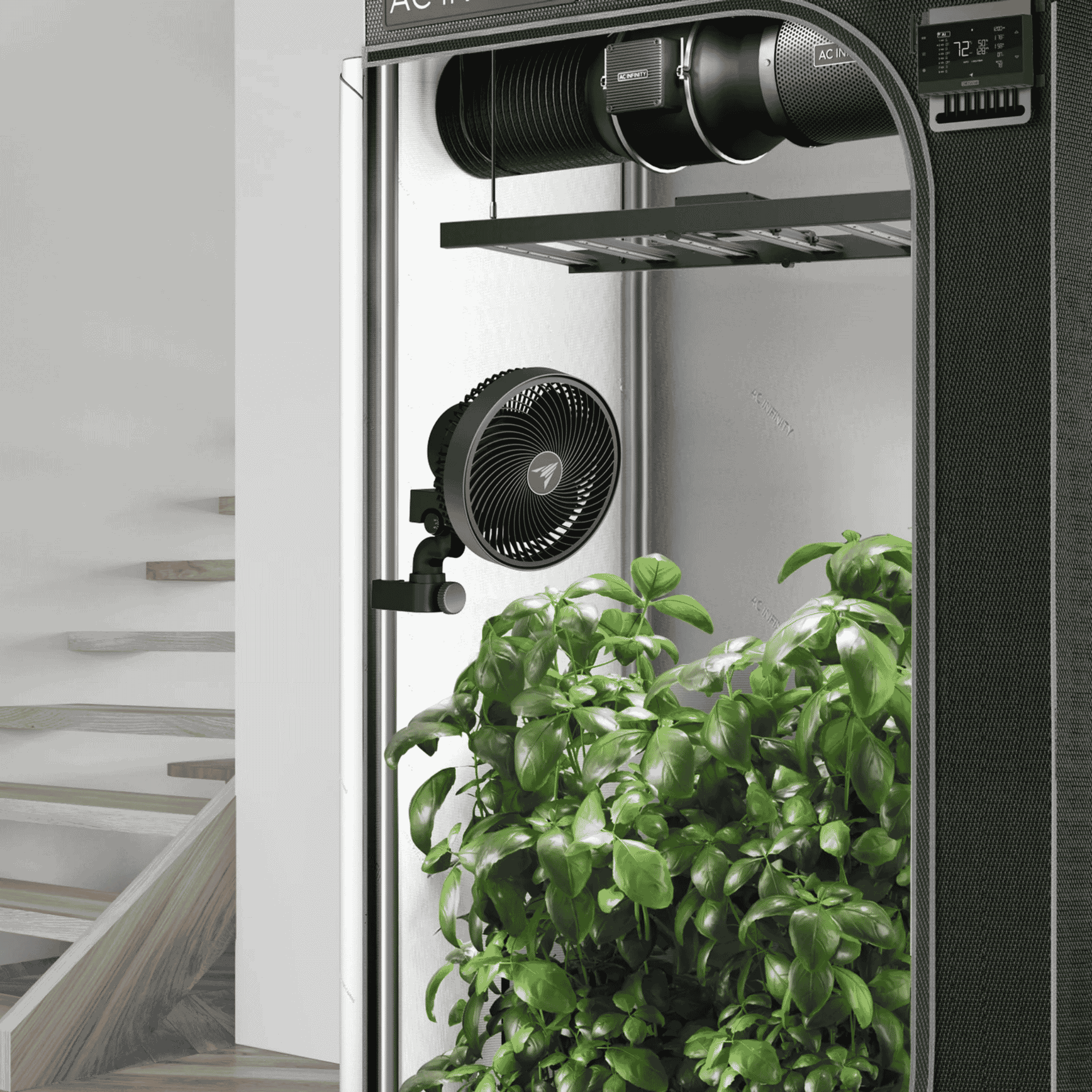

The AC Infinity CLOUDRAY S is an oscillating clip fan designed for targeted air circulation in grow rooms, grow tents, and indoor gardening spaces. Built around a long-life EC motor with dual ball bearings and an IP54 rating, the CLOUDRAY S delivers reliable performance during continuous 24-hour operation in the high humidity and temperature extremes common in active grow environments. Its compact metal grip clip uses a vice grip-like design to secure tightly onto tent poles of any thickness without slipping, and can be mounted right-side up or upside down for flexible positioning.

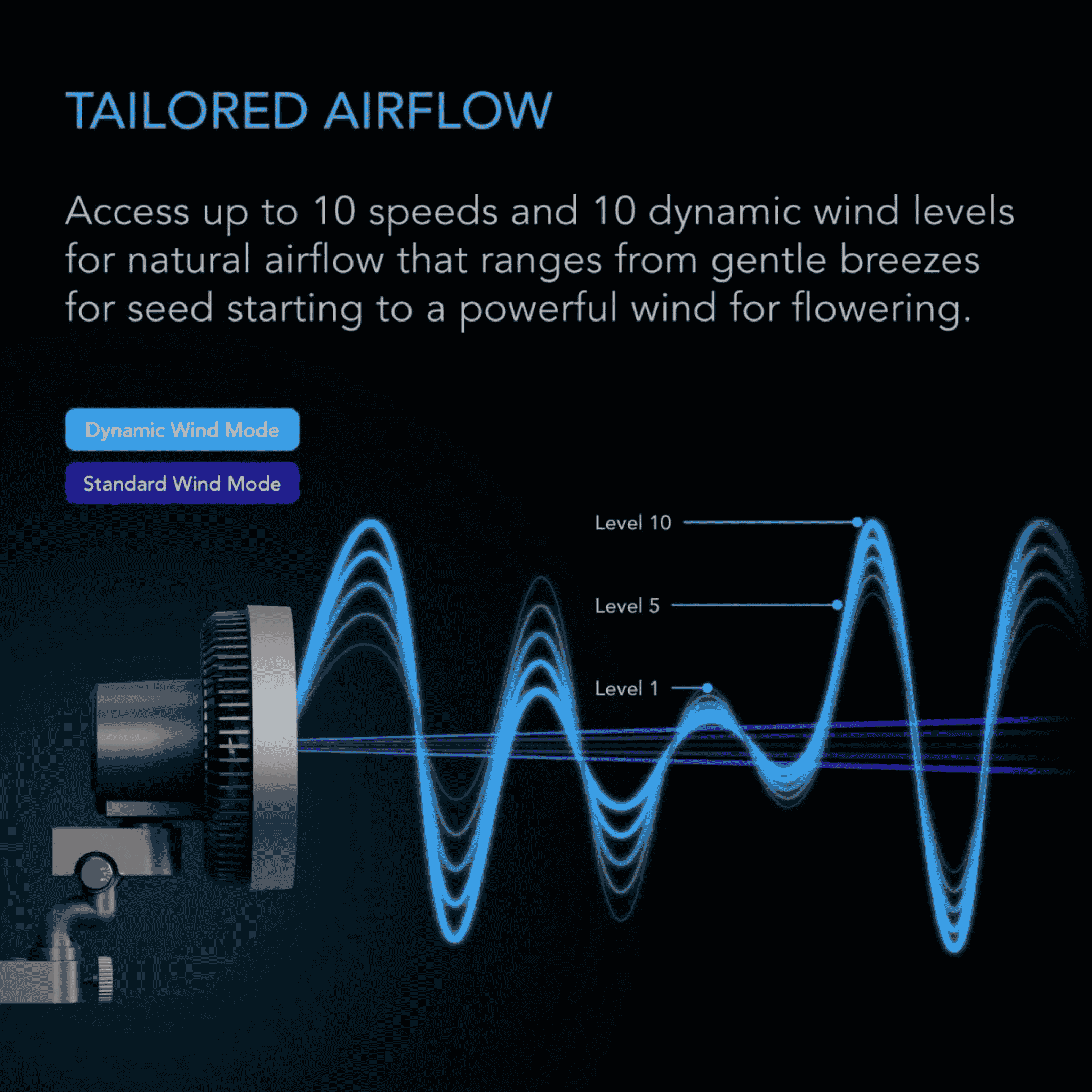

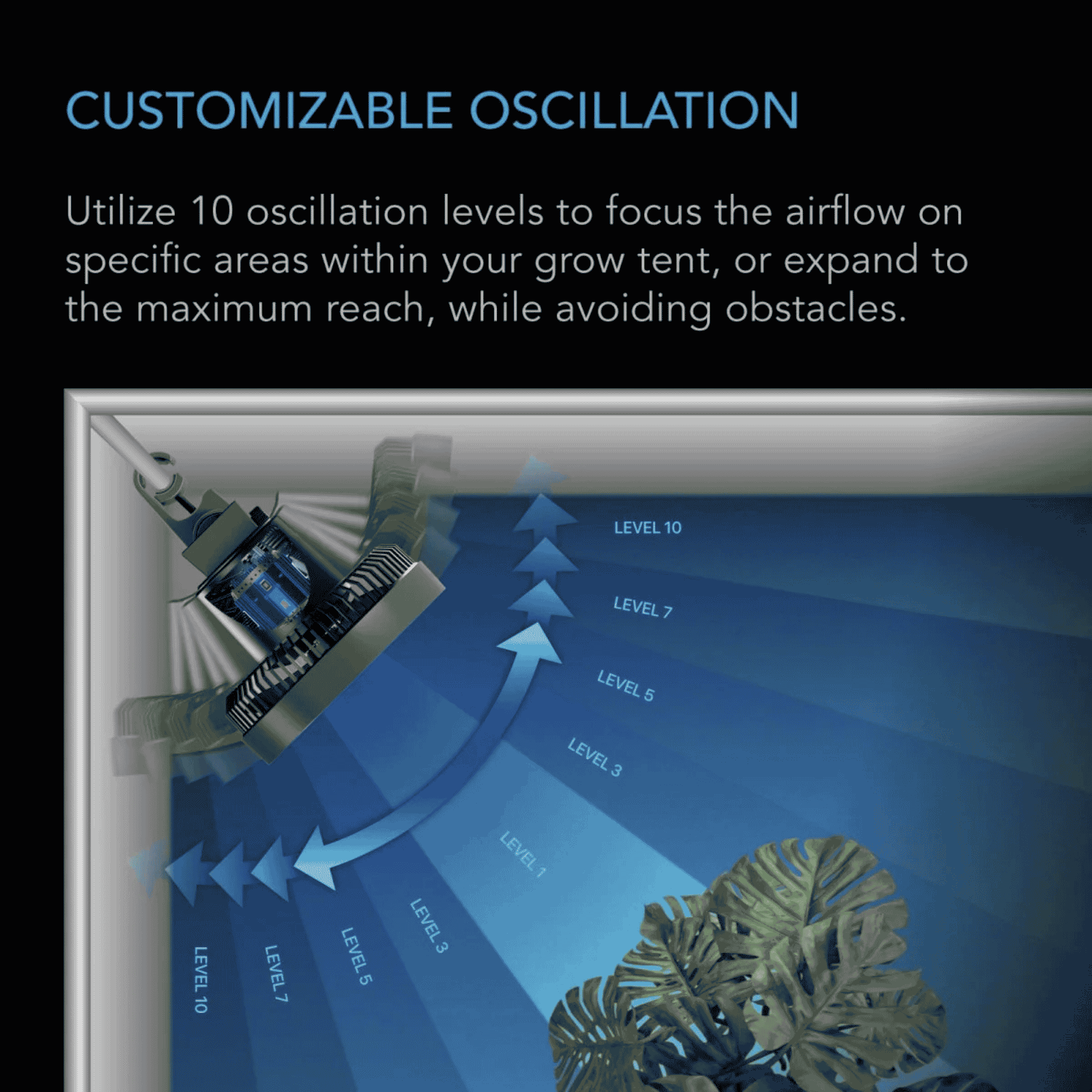

Airflow is fully customisable across three dimensions. Ten speed levels control output intensity, ten dynamic wind modes vary airflow between levels to simulate the natural, irregular breezes of an outdoor environment, and ten oscillation levels determine the arc of movement from a focused narrow beam through to the widest possible coverage across the canopy. The fan head tilts and rotates across a 90° oscillation range and 55° tilt angle to reach any zone within the grow space without hitting tent walls or nearby equipment.

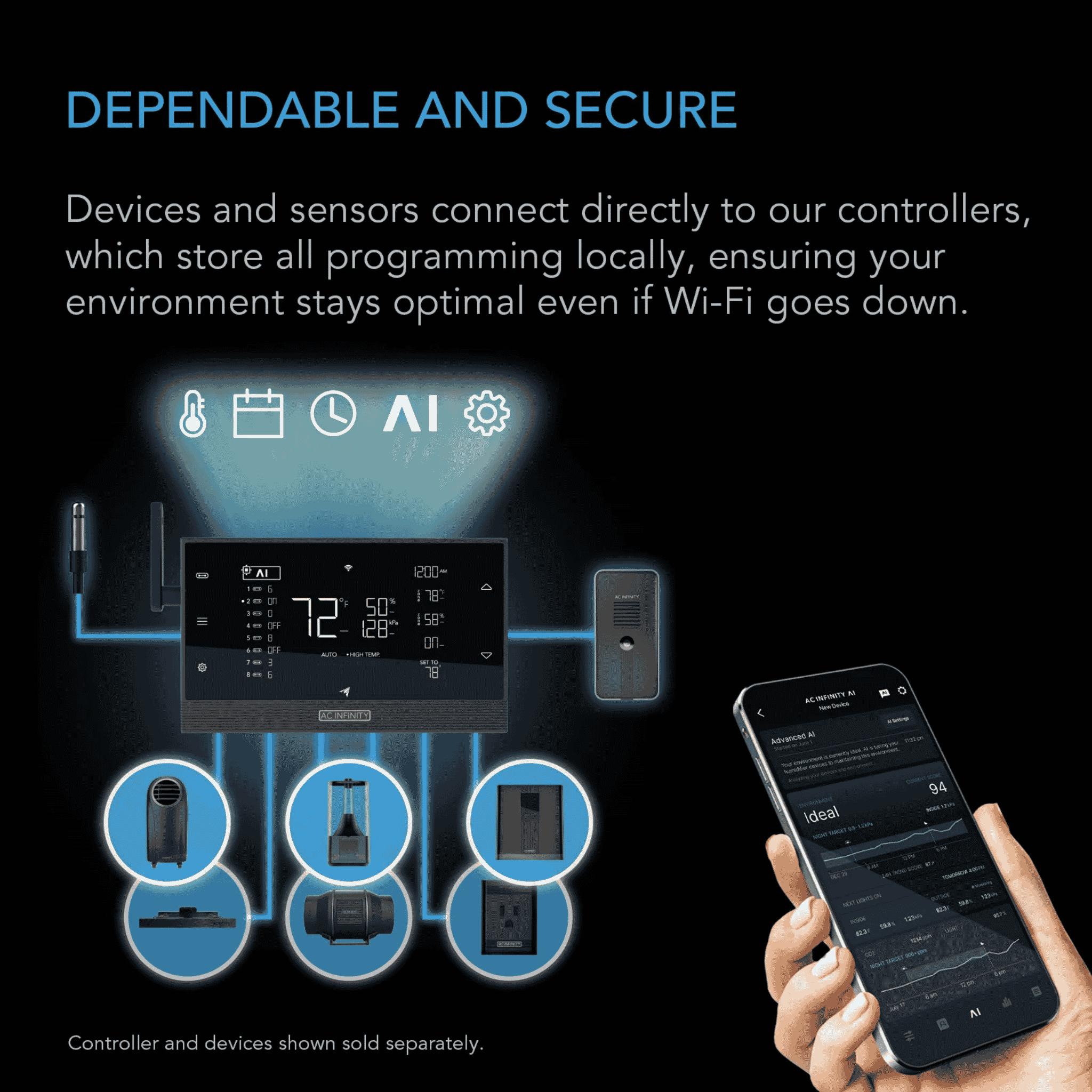

The CLOUDRAY S connects to any AC Infinity UIS controller via the included UIS extension cord, enabling climate triggers, timers, grow cycles, scheduling, and WiFi app control without any programming built into the fan itself. When connected alongside a CLOUDLINE fan and IONFRAME light, the CLOUDRAY S becomes part of a fully integrated, app-managed growing environment. For a grower looking to strengthen airflow through a dense canopy mid-tent without running additional ducting, positioning a pair of CLOUDRAY S fans at different heights and oscillation ranges achieves precise, targeted circulation with minimal space usage.

Dynamic Airflow Control
Dynamic Airflow Control
10 speeds, 10 wind modes, and 10 oscillation levels for personalised canopy circulation.
IP54 Heavy-Duty Build
IP54 Heavy-Duty Build
Brushless EC motor with carbon steel gears rated for continuous 24-hour operation.
UIS Compatible
UIS Compatible
Connects to UIS controllers for climate triggers, timers, and WiFi app automation.

An oscillating clip fan with 10 speeds, 10 dynamic wind modes, and 10 oscillation levels, IP54-rated for continuous operation in demanding grow environments.
Size
Quantity

CancelSold out

Pickup currently unavailable at
Cart icon Free delivery — on all orders over $499!
verifiedVerified by Hydro Oasis
Security Secure checkout  with Afterpay American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

AC Infinity Cloudray S Oscillating Axial Clip Fan

$114.99
$114.99

Key HighlightsKey Highlights

  • 10 speed levels, 10 dynamic wind modes, and 10 oscillation levels for fully customisable canopy circulation
  • Dynamic wind modes vary airflow between levels to simulate natural outdoor breezes
  • IP54-rated housing withstands high humidity and temperature for continuous 24-hour operation

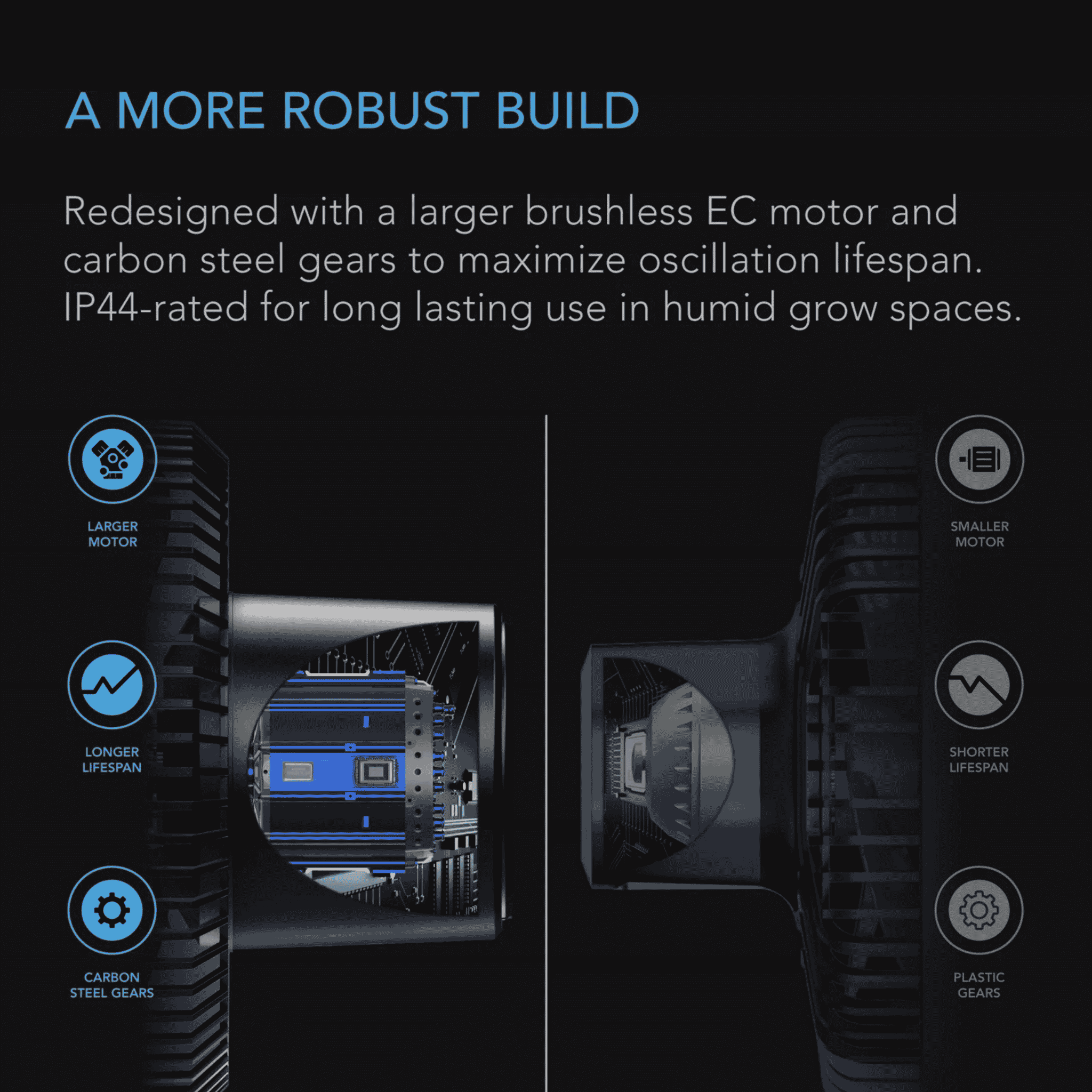

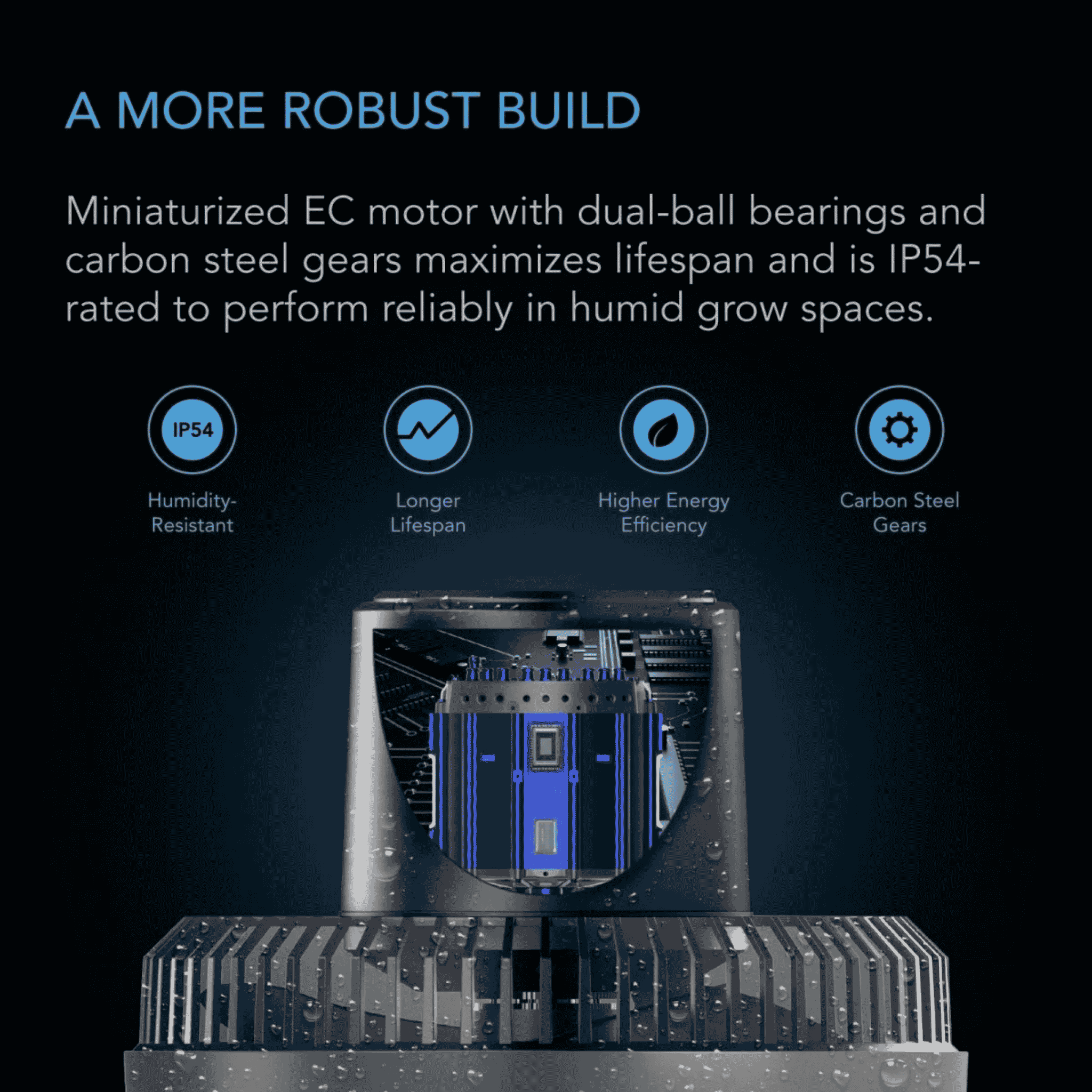

  • Brushless EC motor with carbon steel gears and dual ball bearings for long-term reliability
  • Fan head tilts upward 30° and downward 40° for precise zone targeting
  • Metal grip clip uses a vice grip-like design for secure mounting on tent poles of any thickness
  • Mounts right-side up or upside down for flexible positioning
  • UIS compatible via included UIS extension cord for climate triggers, timers, and WiFi app control
  • ETL certified (certificate #5027708) for electrical appliance safety
  • 2-year warranty

Directions for UseDirections for Use

  1. Twist to remove the knob from the grip clip.
  2. Position the grip clip on a tent pole or suitable anchor point.
  3. Slide the fan's clamp neck into the grip clip and tighten the knob firmly until the fan is held securely. The clip can be mounted right-side up or upside down.
  4. Adjust the fan head tilt angle: the head pivots upward 30° and downward 40° to direct airflow toward the desired zone.
  5. Plug the power cord into a standard power outlet.
  6. Press the speed button to cycle through speed levels 1–10.
  7. Pressing past 10 returns the fan to 0 (off).
  8. Press the oscillation button to activate automatic oscillation.
  9. Press again to cycle through the 10 oscillation levels, from a narrow focused arc to the widest coverage range.
  10. Press the dynamic wind mode button to cycle through the 10 wind modes, which vary airflow intensity between levels to simulate natural outdoor breezes.
  11. To connect the CLOUDRAY S to a UIS controller, plug the included UIS extension cord into the fan's UIS port and connect the other end to an available port on the controller. The fan can then be managed via the controller's programming and the AC Infinity app.
    Note: the CLOUDRAY S does not support daisy-chaining between units. Multiple fans connect individually to separate UIS controller ports.
  12. Clean the fan blades and housing periodically with a damp cloth to maintain airflow output.

Technical SpecificationsTechnical Specifications

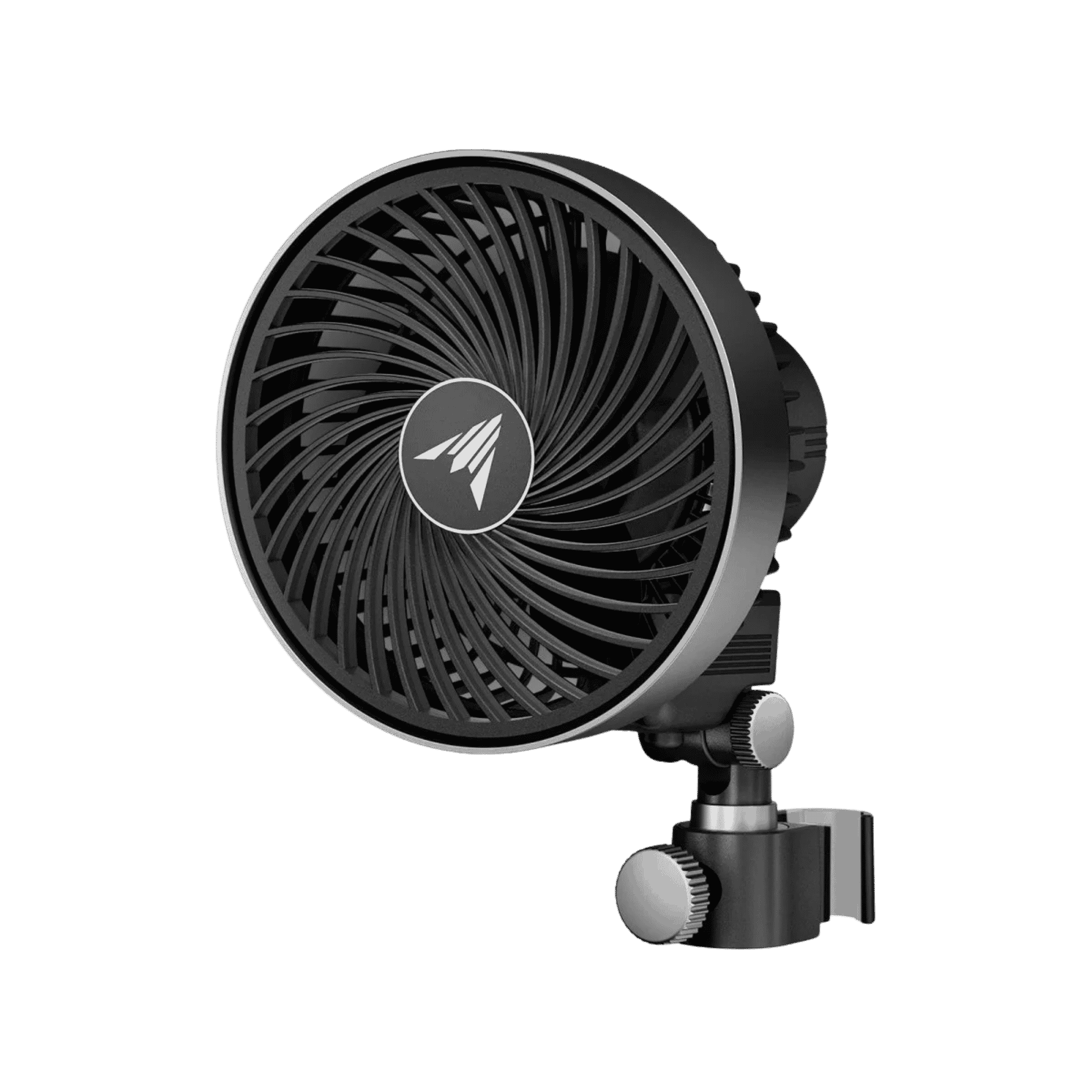

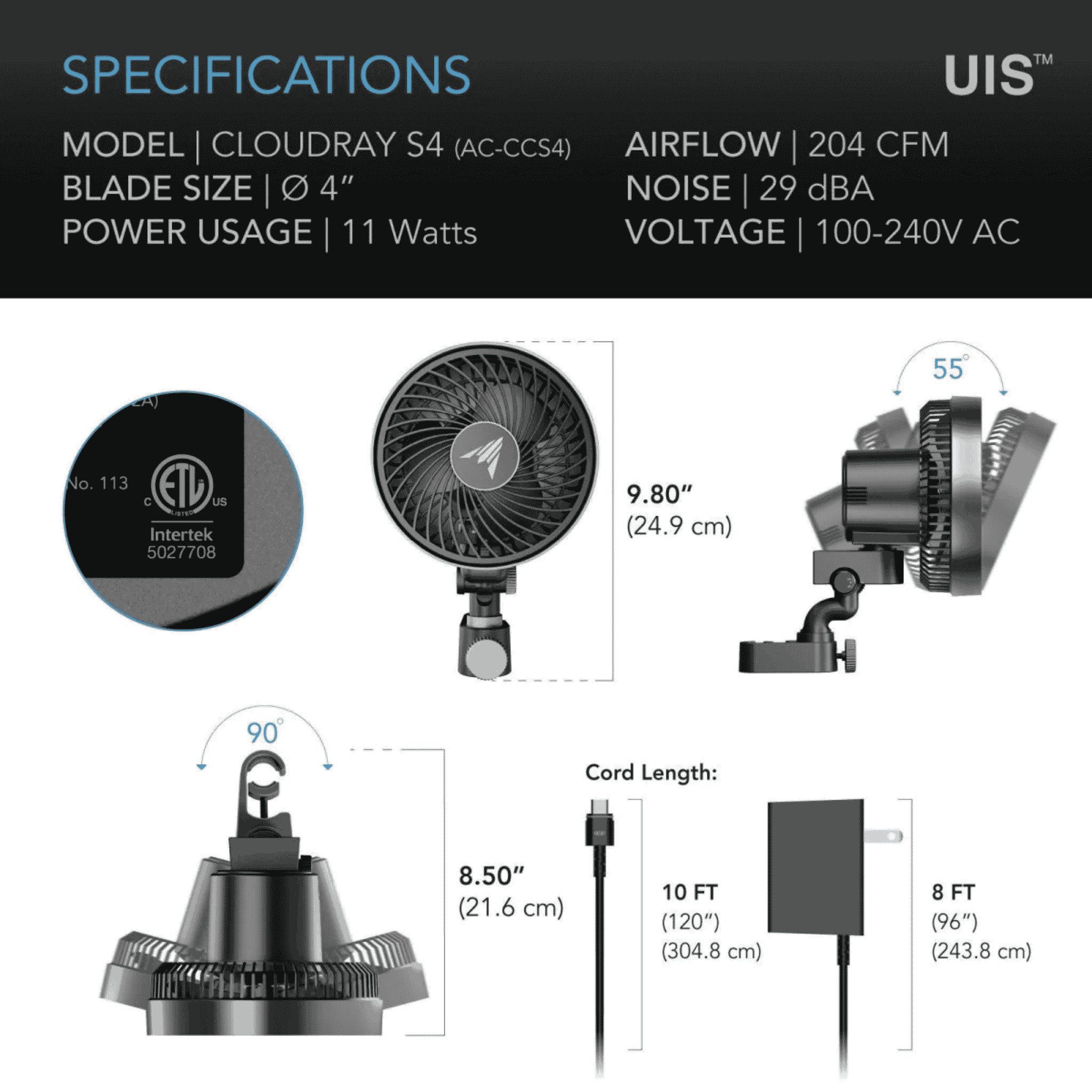

AC Infinity CLOUDRAY S4

  • Product Model: AC-CCS4
  • UPC Code: 819137025066
  • Impeller Size: 100 mm (4")
  • Total Dimensions: 24.7 × 30.0 cm (9.73" × 11.82")
  • Cord Length: 243.8 cm (96 in / 8 ft)
  • Motor: Miniaturised EC
  • Maximum Airflow: 347 m³/h (204 CFM)
  • Noise: 29 dBA
  • Static Pressure: 23 Pa
  • Power: 11 W
  • Current: 0.16 A

AC Infinity CLOUDRAY S6

  • Product Model: AC-CCS6
  • UPC Code: 819137022423
  • Impeller Size: 165 mm (6.5")
  • Total Dimensions: 22.2 × 26.6 cm (8.74" × 10.47")
  • Cord Length: 243.8 cm (96 in / 8 ft)
  • Motor: Brushless EC with carbon steel gears
  • Maximum Airflow: 553 m³/h (325 CFM)
  • Noise: 31 dBA
  • Static Pressure: 25 Pa
  • Power: 12 W
  • Current: 0.14 A

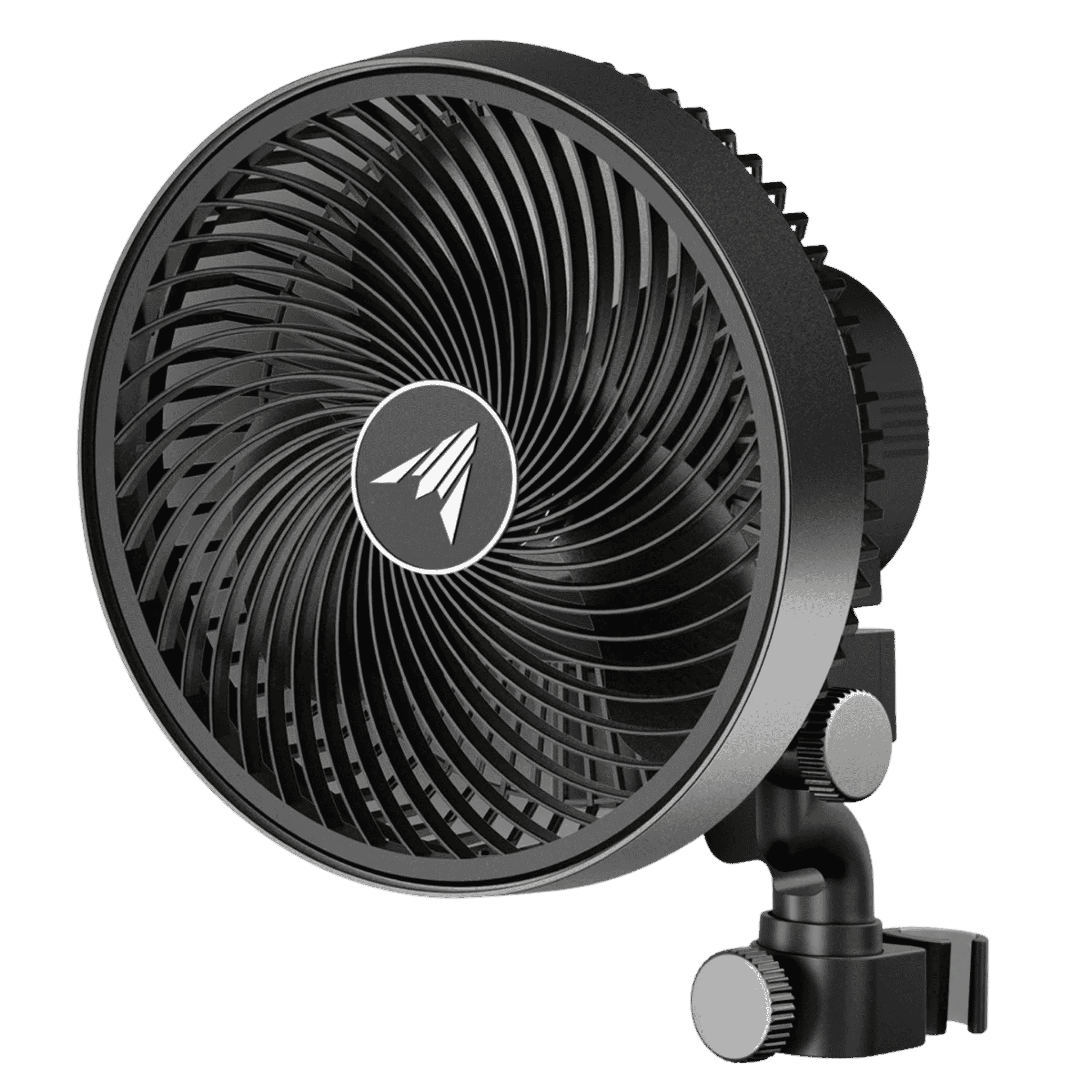

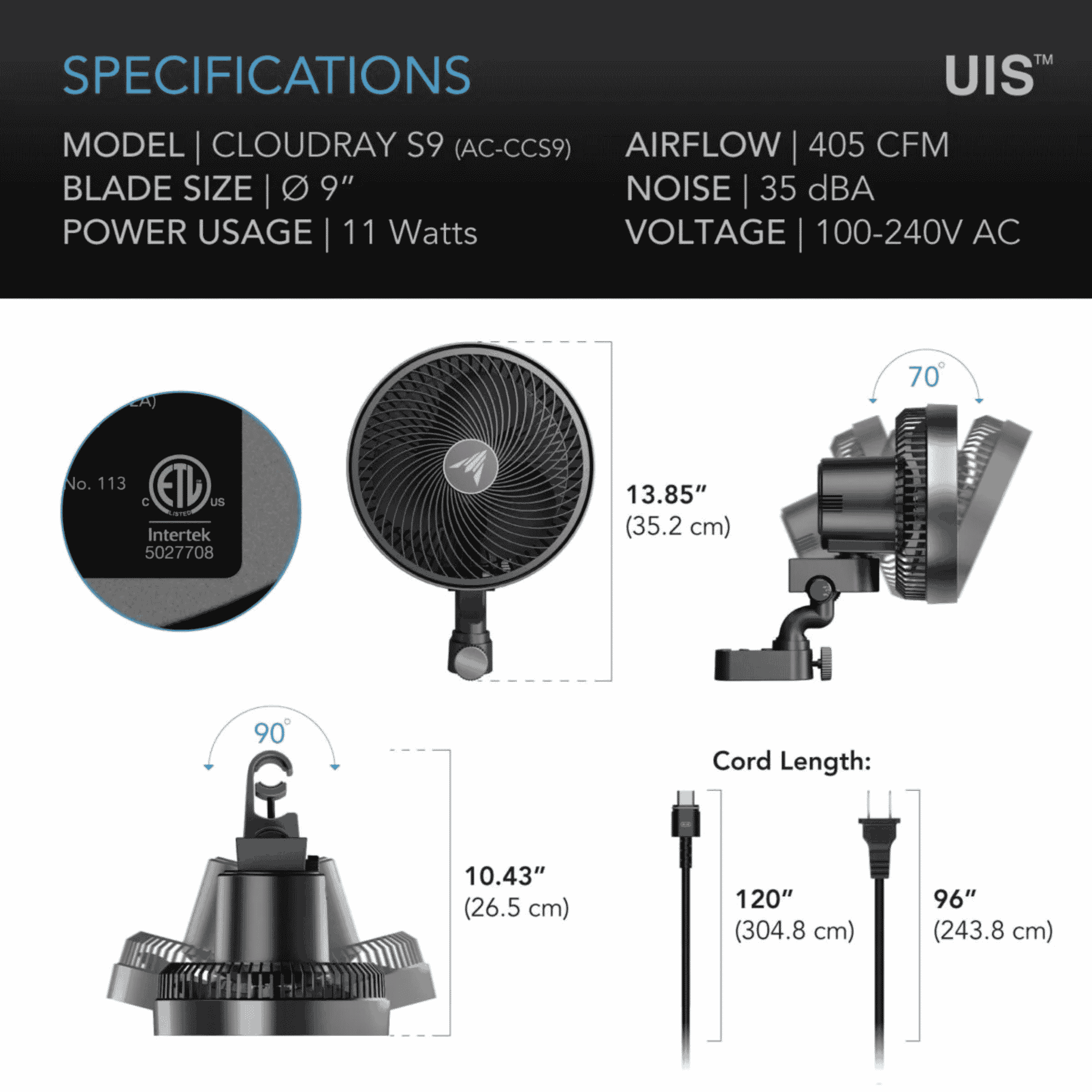

AC Infinity CLOUDRAY S9

  • Product Model: AC-CCS9
  • UPC Code: 819137022461
  • Impeller Size: 229 mm (9")
  • Total Dimensions: 26.5 × 35.2 cm (10.43" × 13.85")
  • Cord Length: 243.8 cm (96 in / 8 ft)
  • Motor: Brushless EC with carbon steel gears
  • Maximum Airflow: 688 m³/h (405 CFM)
  • Noise: 35 dBA
  • Static Pressure: 25 Pa
  • Power: 11 W
  • Current: 0.15 A

All Models

  • Speed Settings: 10
  • Dynamic Wind Modes: 10
  • Oscillation Levels: 10
  • Rotation Range: 90°
  • Tilt Angle: 55°
  • Bearings: Dual Ball
  • IP Rating: IP54
  • Operating Voltage: 100–240V AC
  • Operating Humidity: 35–85% RH
  • Operating Temperature: 0°–60°C (32°–140°F)
  • Life Expectancy: 67,000 hours
  • Continuous Operation: 24 hours per day
  • Mounting: Horizontal or Vertical
  • ETL Certified: Yes (Certificate #5027708)
  • UIS Compatible: Yes, via included UIS extension cord
  • Includes: Fan, grip clip, UIS extension cord, cable ties (×4), cable mount (×1)
  • Warranty: 2 years
