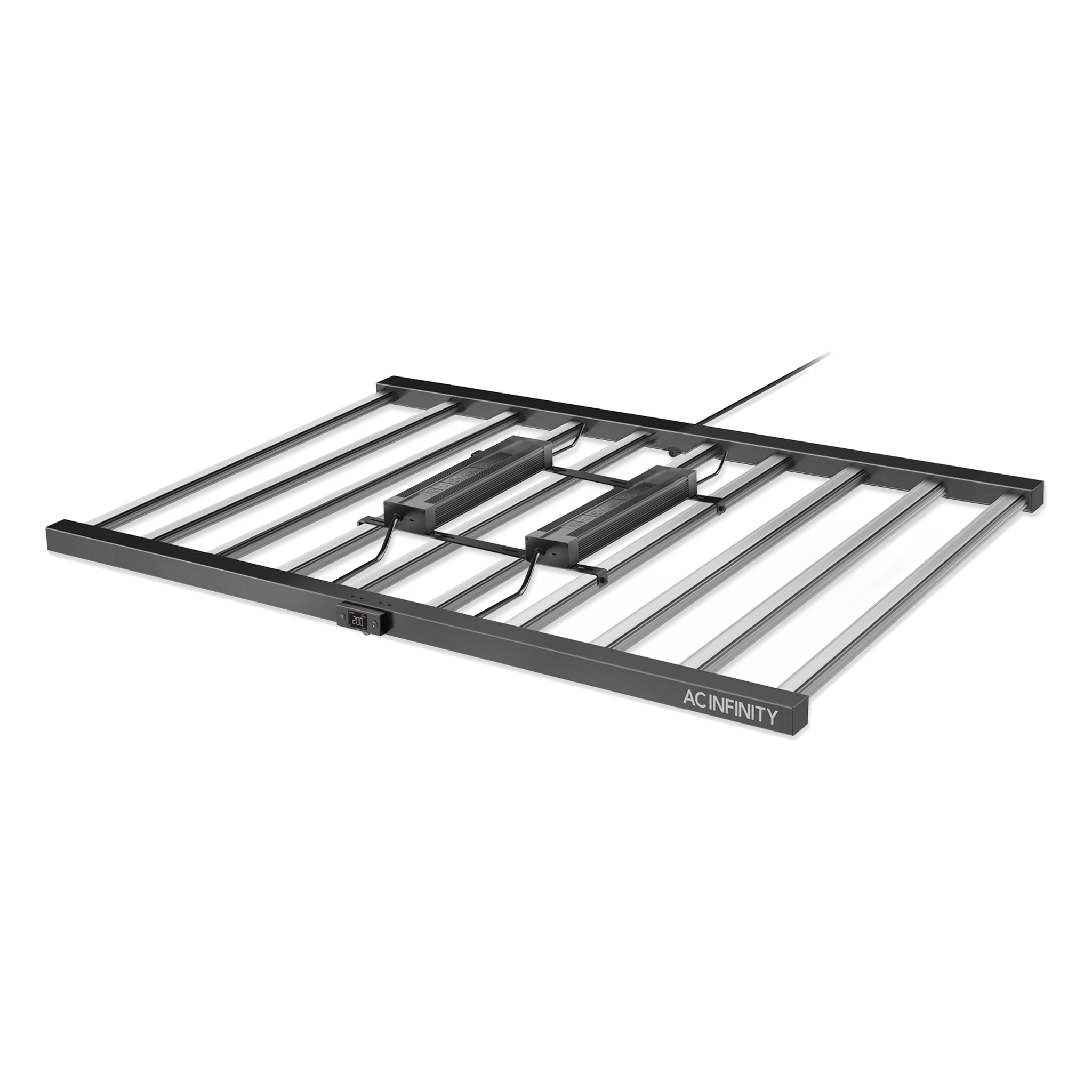

AC Infinity Ionframe EVO10 LED
At the top of the IONFRAME EVO family sits the AC Infinity Ionframe EVO10 LED, a 1000 W commercial-density panel that AC Infinity positions for sealed rooms running supplemental CO2. It flowers the largest canopy in the series, 183 x 183 cm (6 x 6 ft), and vegs 213 x 213 cm (7 x 7 ft), on the same 112 x 113 cm frame as the AC Infinity Ionframe EVO8 LED; the difference between the two is the 1022 extra diodes packed into an identical footprint.
Those 3710 diodes break down into 2360 Samsung LM301H EVO whites at 3000K, 1200 at 5000K, 10 Seoul 395 nm UV, 130 OSRAM 660 nm red and 10 OSRAM 730 nm far red; the 130-diode red channel is by far the deepest red loading in the series, with the next closest model carrying 88. AC Infinity quotes the family's highest output at up to 2146 PPFD alongside the platform's 3.14 µmol/J single-diode efficacy, both published without a stated measurement height. The housing is sealed to IP65, rated 0 to 60°C (32 to 140°F) and 35 to 85% RH with a 50,000 hour life expectancy, and its passive-cooled removable driver accepts a full-range 100-277V AC, 50/60 Hz input.
The panel measures 112.0 x 113.0 x 8.6 cm (44.09 x 44.48 x 3.38 in), hangs from four corner anchors on the included wire hangers and rope clips, and stays at least 30 cm (1 ft) above plants. In sealed rooms holding CO2 at 1200 ppm and above, the rating is 152 x 152 cm (5 x 5 ft), which is precisely where AC Infinity aims this model; no 183 cm square tent exists in the range, so it more often hangs in open rooms or paired inside an AC Infinity Cloudlab 816 Grow Tent 1.52 x 3.04 x 2.03 m. The included schedule controller runs ten intensity levels and sunrise/sunset ramps, a UIS controller extends that to whole-room automation, and a pair of AC Infinity Grow Room Glasses is a sensible addition at this output. Its 3710-diode array lets one hanging point flower a 6 x 6 canopy that would otherwise take two mid-sized panels.
NOTE: this is a high-output grow light. Never look directly at the diodes while the fixture is running, and consider rated eye protection when working under it at full intensity. Per the manufacturer's manual: do not hardwire the fixture, do not operate it in wet, flammable or explosive atmospheres, unplug it before installing, servicing or moving it, and do not rely on programmed on/off schedules as the sole means of cutting power.
Deepest Red Loading
Carries the heaviest OSRAM 660 nm red channel in the whole IONFRAME EVO series.
Largest Coverage
Flowers 183 x 183 cm and vegs 213 x 213 cm, the biggest canopy in the family.
Commercial Density
Rated for sealed grow rooms running supplemental CO2 at 1200 ppm and above.
Back-Order
Free delivery:
on all orders over
$499!
2 Years warranty · 30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
AC Infinity Ionframe EVO10 LED
Key Highlights
expand_more
- 3710 diodes and up to 2146 PPFD (manufacturer rated), both the highest in the IONFRAME EVO family
- Flowers 183 x 183 cm (6 x 6 ft) and vegs 213 x 213 cm (7 x 7 ft), the largest coverage in the series
- Rated 152 x 152 cm (5 x 5 ft) in sealed rooms running CO2 at 1200 ppm and above, its intended role
- 130 x OSRAM 660 nm red diodes, the deepest red loading in the family; the next closest model carries 88
- Same 112 x 113 cm frame as the EVO8 with 1022 more diodes packed in

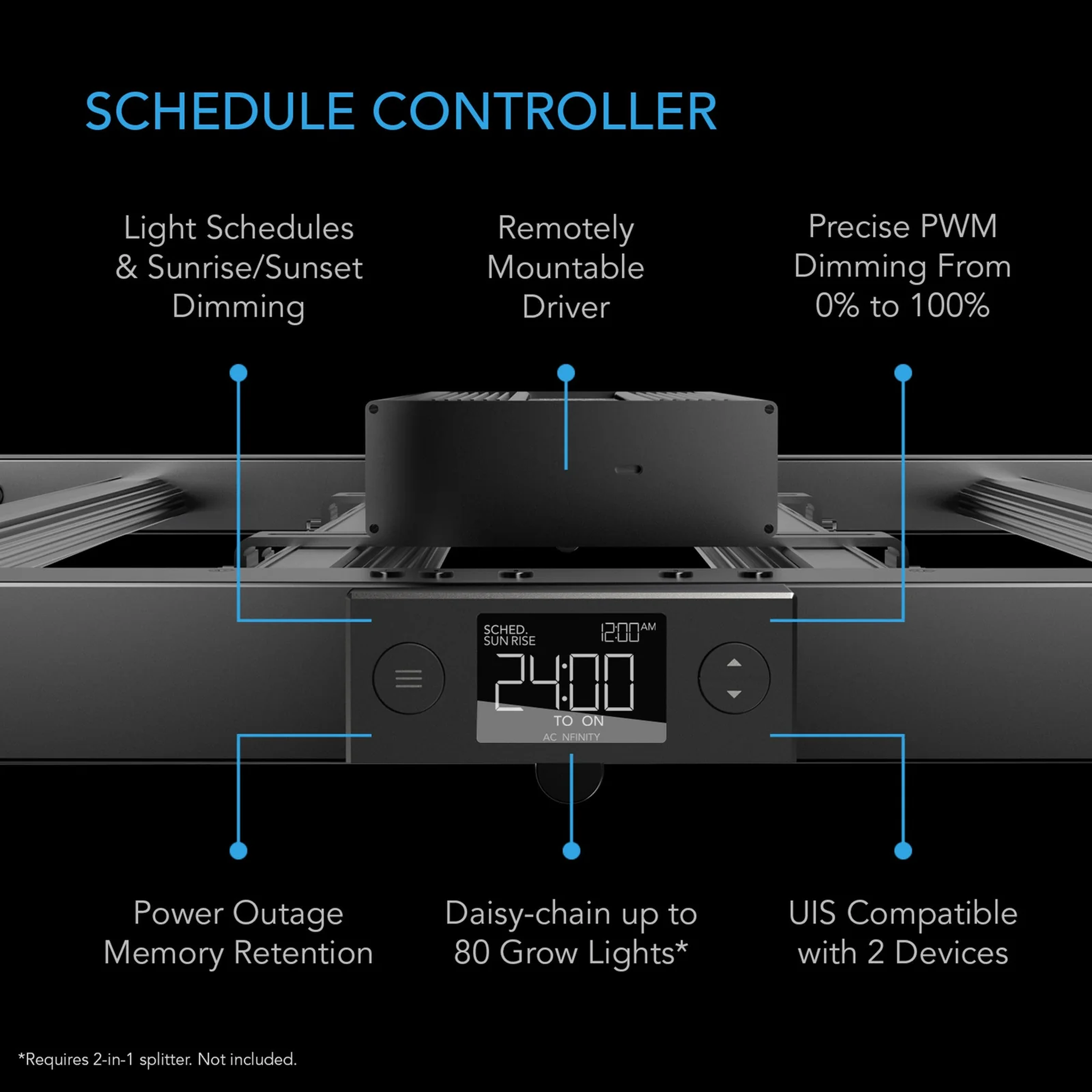

- Included schedule controller: ten intensity levels, sunrise/sunset ramps and a battery-backed clock
- IP65-sealed housing with a full-range 100-277V AC, 50/60 Hz removable driver
- 2 year manufacturer warranty and 50,000 hour rated life
Directions for Use
expand_more
- Suspend the panel by its four corner anchors, clipping the included stainless steel wire hangers and carabiners to overhead supports; use the rope clips where a lower hang is needed.
- Keep no less than 30 cm (1 ft) between the diodes and the canopy.
- Position the removable driver on the frame, on a wall via the included brackets, or outside the grow space on its extension cord.
- Connect the schedule controller with an included UIS cord; it mounts by magnet to the frame, by screw to a wall, or onto a controller mounting plate (plate sold separately).
- Work from the manual's intensity guide: 40% for seedlings, 80% in veg, 100% in flower.
- Set the daily on/off cycle or a sunrise/sunset ramp of up to six hours; a battery backup carries the clock through power loss.

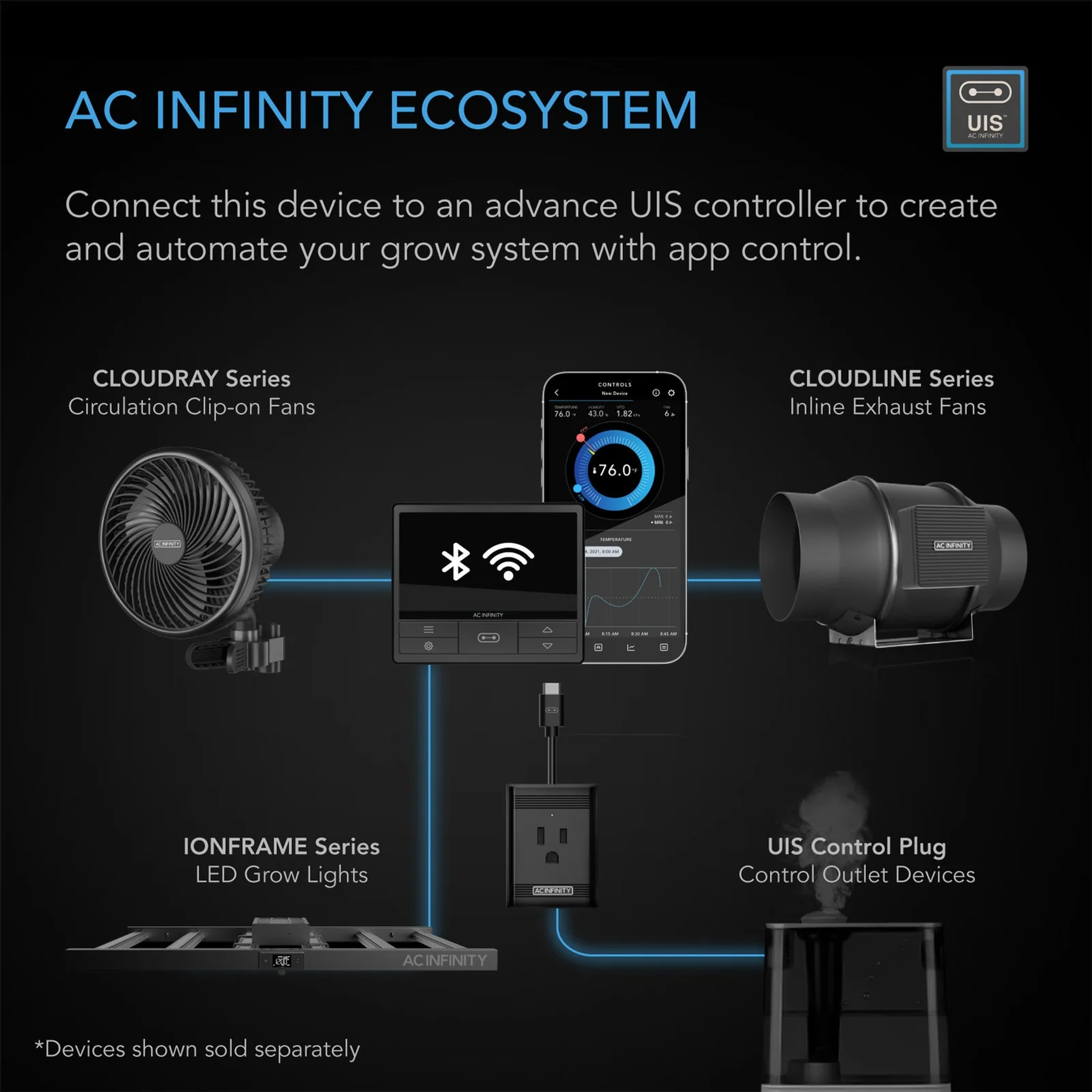

- For CO2-enriched rooms and whole-room automation, run the light from a UIS controller such as the Ai+ (sold separately) and chain additional same-series lights via a daisy-chain adapter.
Technical Specifications
expand_more
- Product Model: AC-IF10K
- UPC Code: 819137024083
- Wattage: 1000 W
- Total Diodes: 3710 (2360 x 3000K and 1200 x 5000K Samsung LM301H EVO; 10 x Seoul 395 nm UV; 130 x OSRAM 660 nm red; 10 x OSRAM 730 nm far red)

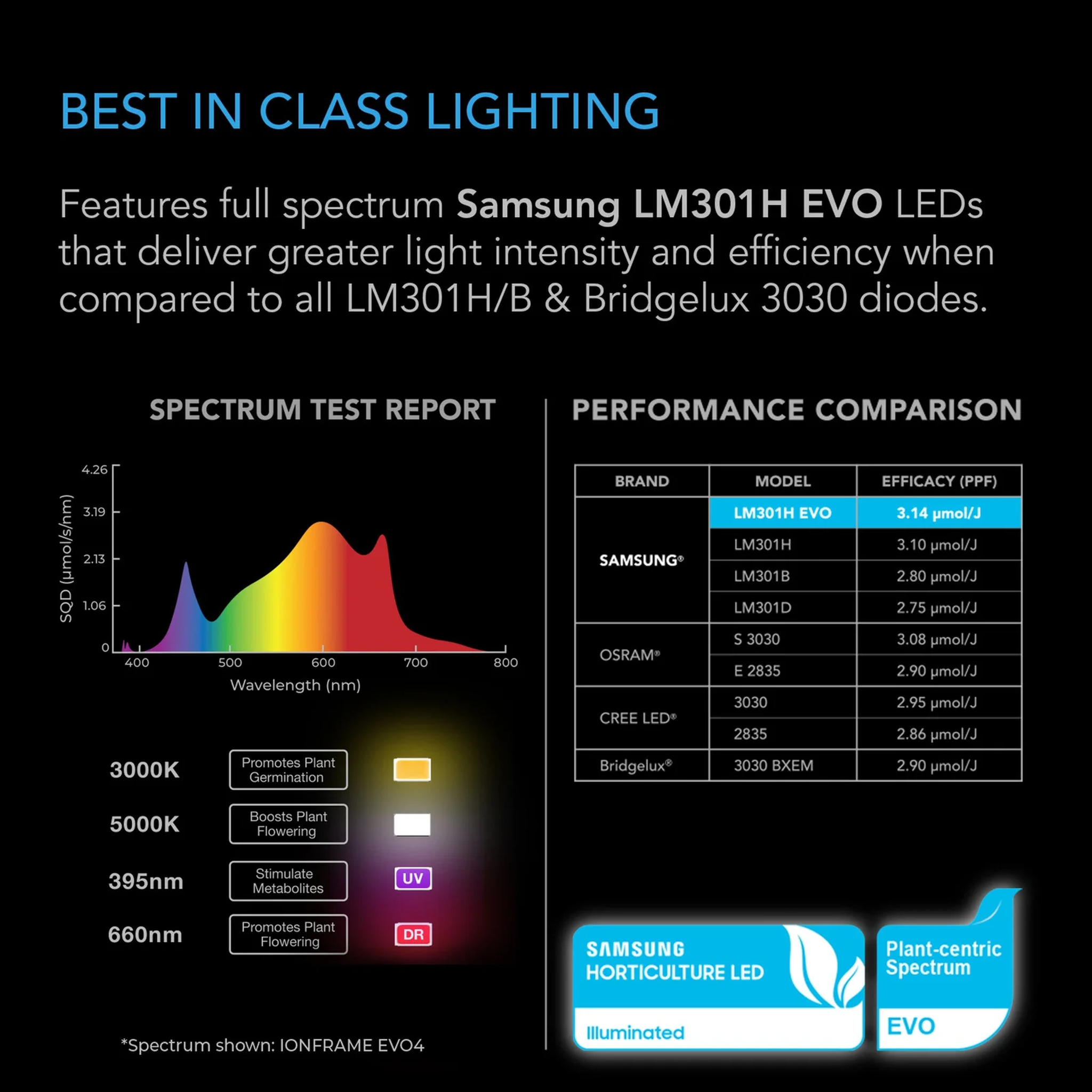

- Spectrum: Full spectrum: 395 nm, 3000K, 5000K, 660 nm, 730 nm

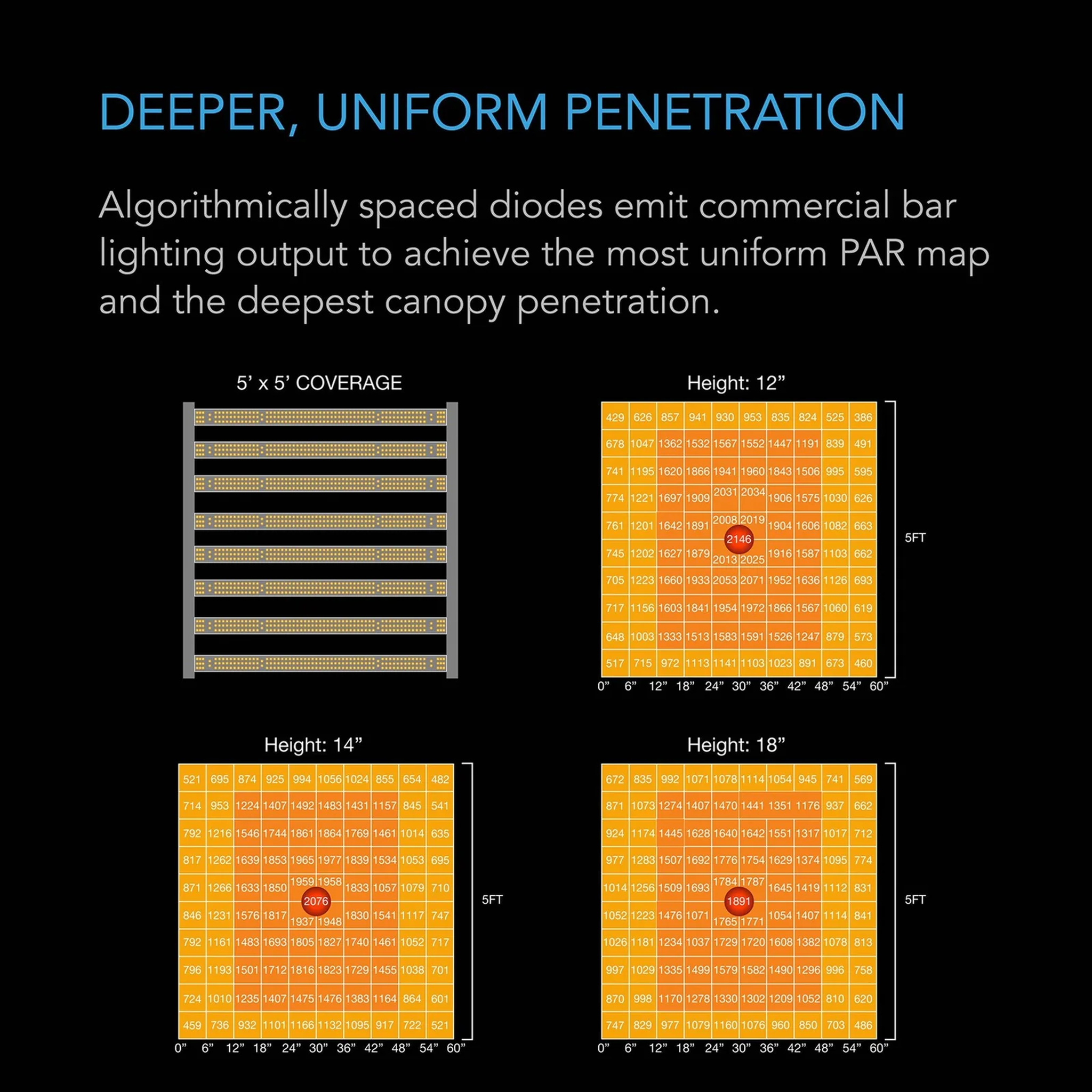

- PPFD: 2146 (manufacturer rated; no stated measurement height)
- Efficacy: 3.14 µmol/J single-diode PPE (manufacturer rating for the diode, not the whole fixture)
- Flower Coverage: 183 x 183 cm (6 x 6 ft)
- Veg Coverage: 213 x 213 cm (7 x 7 ft)
- CO2-Enriched Coverage: 152 x 152 cm (5 x 5 ft) in sealed rooms at 1200+ ppm
- Dimming: Ten intensity levels via the included schedule controller
- Scheduling: Timed cycles, sunrise/sunset ramps 0:00 to 6:00 h, battery-backed clock
- Voltage: 100-277V AC, 50/60 Hz
- IP Rating: IP65
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Operating Humidity: 35 to 85% RH
- Life Expectancy: 50,000 hours

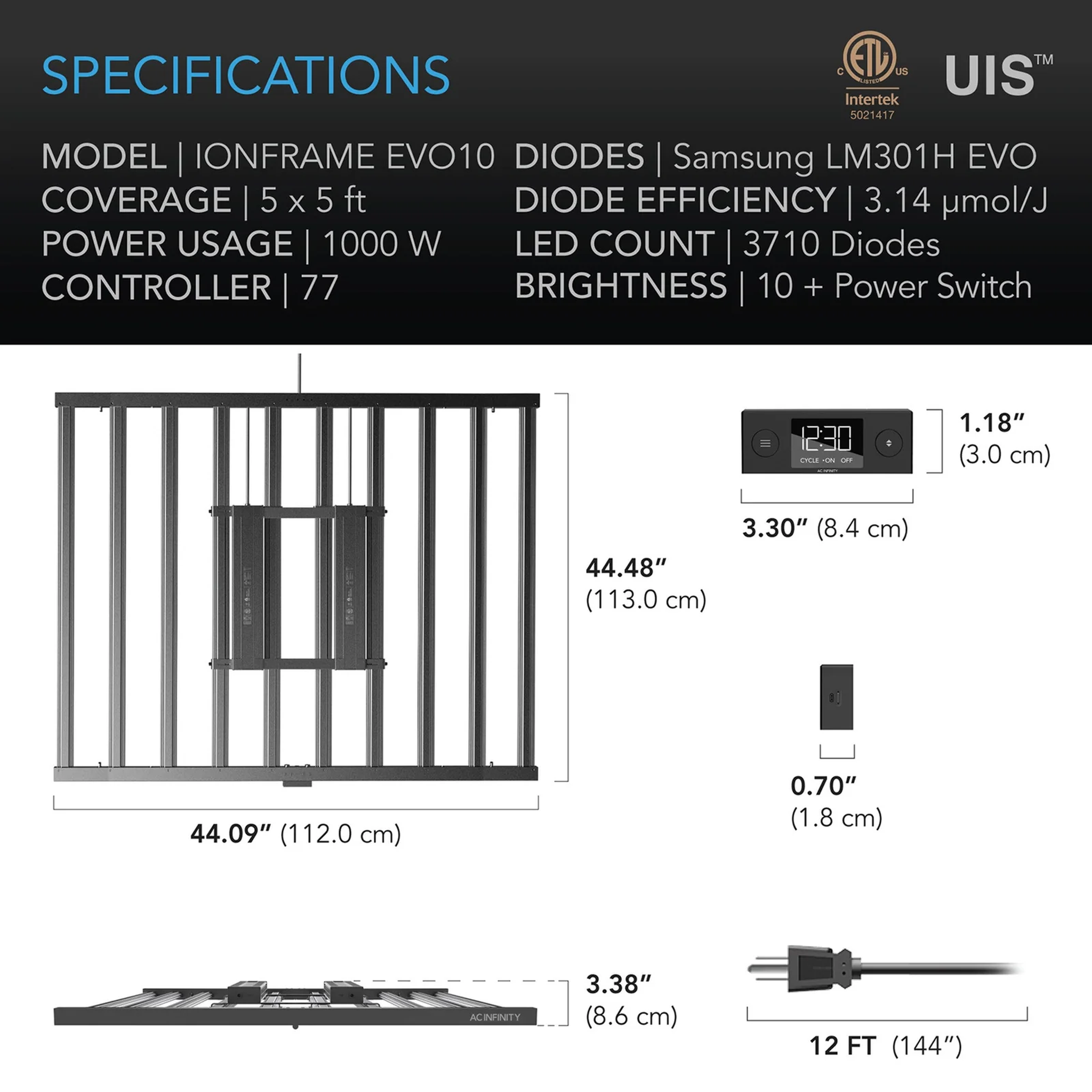

- Light Dimensions: 112.0 x 113.0 x 8.6 cm (44.09 x 44.48 x 3.38 in)
- Driver Dimensions: 18.2 x 4.0 cm (7.16 x 1.57 in)
- Connectivity: UIS platform; compatible with Controller 69 Pro, 69 Pro+ and Ai+ (sold separately); up to 16 same-series lights per controller port via daisy-chain adapter (sold separately)
- Certifications: ETL (#5021417)
- Warranty: 2 years
