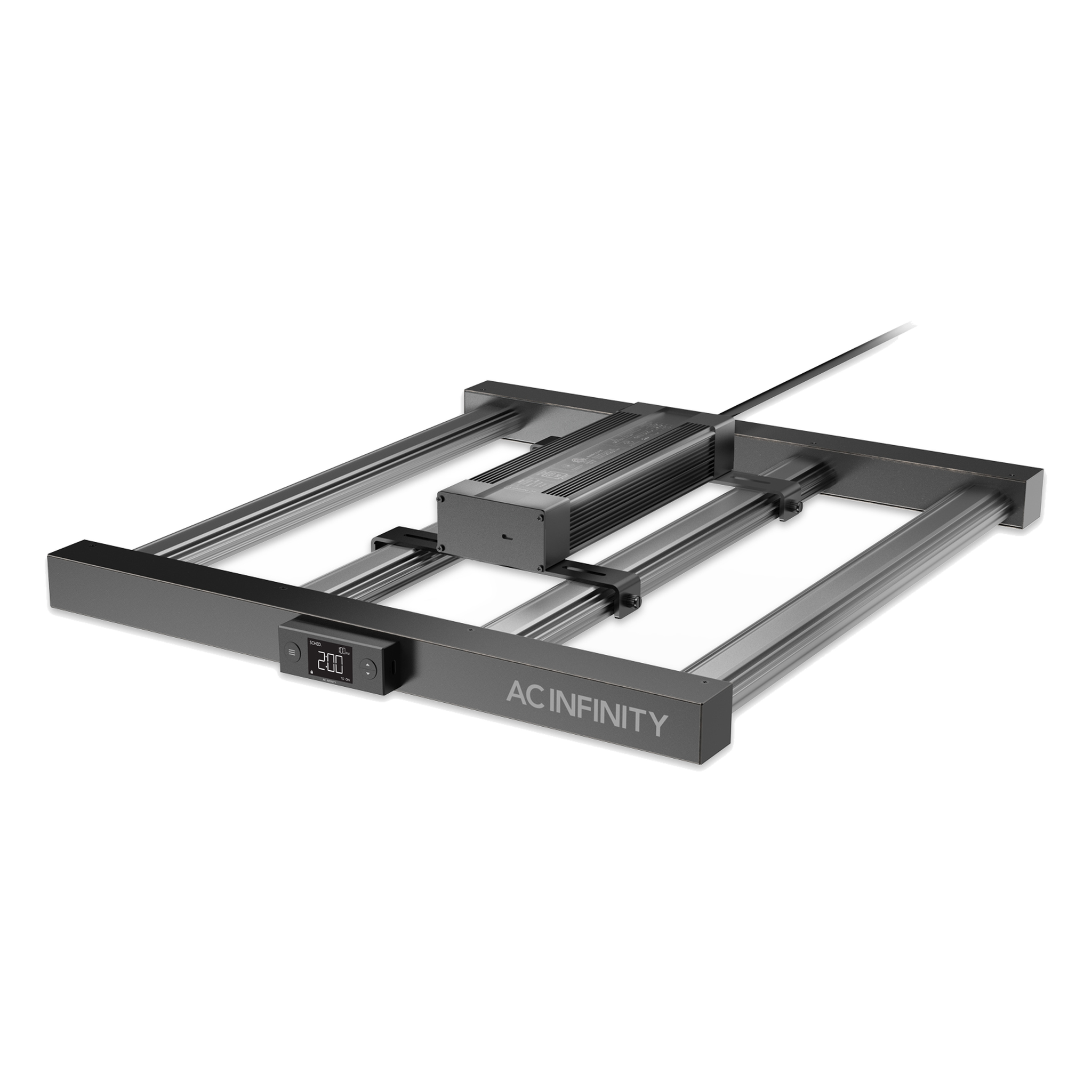

AC Infinity Ionframe EVO4 LED
Sized for the 91 x 91 cm (3 x 3 ft) tent, the AC Infinity Ionframe EVO4 LED is the square-format step in the IONFRAME EVO family, drawing 300 W through a near-square 52.0 x 58.0 cm body. Only 20 W separates it from the rectangular EVO3 below it; what changes is the shape of the canopy. Over an AC Infinity Cloudlab 733 Grow Tent 0.9 x 0.9 x 1.8 m it covers the floor for flowering, and it will veg a 122 x 122 cm (4 x 4 ft) space.
What genuinely sets it apart inside the series is its white mix. Every sibling runs warm-heavy, but the EVO4 carries 500 Samsung LM301H EVO diodes at 5000K against 360 at 3000K, a cooler balance unique in the family, with 4 Seoul 395 nm UV, 28 OSRAM 660 nm red and 4 OSRAM 730 nm far-red diodes completing the 896-diode count. AC Infinity quotes up to 1819 PPFD and a single-diode efficacy of 3.14 µmol/J, both published without a stated measurement height. The bar frame is sealed to IP65, rated 0 to 60°C (32 to 140°F) and 35 to 85% RH, carries a 50,000 hour life expectancy, and its detachable passive-cooled driver of 18.2 x 4.0 cm (7.16 x 1.57 in) mounts on the frame, on a tent wall with the included brackets, or outside the tent entirely.
The light measures 52.0 x 58.0 x 7.6 cm (20.47 x 22.83 x 2.99 in) and hangs from four corner anchors on the included stainless steel wire hangers, at least 30 cm (1 ft) above plants. The included schedule controller magnet-mounts to the frame and provides ten intensity levels, timed cycles and sunrise/sunset ramps up to six hours, with the option to swap onto an AC Infinity Controller 69 Pro+ for app scheduling and automation. Where a 122 x 122 cm flowering footprint is the target, the AC Infinity Ionframe EVO6 LED is the step up. Its cooler 5000K-weighted spectrum gives the EVO4 a balance no other model in the line offers, in a body that carries a 91 cm square canopy from seedling through to harvest.
NOTE: this is a high-output grow light. Never look directly at the diodes while the fixture is running, and consider rated eye protection when working under it at full intensity. Per the manufacturer's manual: do not hardwire the fixture, do not operate it in wet, flammable or explosive atmospheres, unplug it before installing, servicing or moving it, and do not rely on programmed on/off schedules as the sole means of cutting power.
Cooler White Mix
The only EVO weighted to 5000K whites, a balance no sibling in the family offers.
Square 3x3 Canopy
Near-square body spreads light over a 91 x 91 cm flowering area, vegging wider still.
Removable Driver
The passive-cooled driver detaches to mount on the frame, a tent wall or outside the tent.
Back-Order
Free delivery:
on all orders over
$499!
Verified by Hydro Oasis
2 Years warranty · 30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
AC Infinity Ionframe EVO4 LED
Key Highlights
expand_more
- The family's only cooler-weighted white mix: 500 x 5000K against 360 x 3000K Samsung LM301H EVO diodes
- 896 diodes in a near-square 52.0 x 58.0 cm body built for 91 x 91 cm (3 x 3 ft) flower and 122 x 122 cm (4 x 4 ft) veg
- AC Infinity rates output at up to 1819 PPFD with 3.14 µmol/J single-diode efficacy
- Only 20 W above the EVO3, but a square canopy in place of a 2 x 4 rectangle
- Schedule controller included: ten dimming levels, battery-backed clock, controller lock and display-off
- Passive-cooled driver detaches to mount on the frame, a tent wall or outside the tent
- IP65 sealed, 50,000 hour life expectancy, 2 year manufacturer warranty
Directions for Use
expand_more
- Hang the light by its four corner anchors, clipping the included wire hangers and carabiners to the tent's roof bars, with rope clips available for a lower hang.
- Maintain a minimum 30 cm (1 ft) gap between the fixture and the plant canopy.
- Fix the LED driver to the light frame, to a tent wall with the included brackets, or run it outside the tent on the driver extension cord.
- Plug the schedule controller in with an included UIS cord and mount it by magnet on the frame or by screw on a wall.
- Dial intensity to the stage of growth; AC Infinity's starter guide runs 40% seedling, 80% veg, 100% flower.
- Set timed cycles or a sunrise/sunset ramp up to six hours long; a battery backup keeps the clock through outages.
- Swap the schedule controller for a Controller 69 Pro+ or another UIS controller (sold separately) for app scheduling and automation.
Technical Specifications
expand_more
- Product Model: AC-IF4K
- UPC Code: 819137024052
- Wattage: 300 W

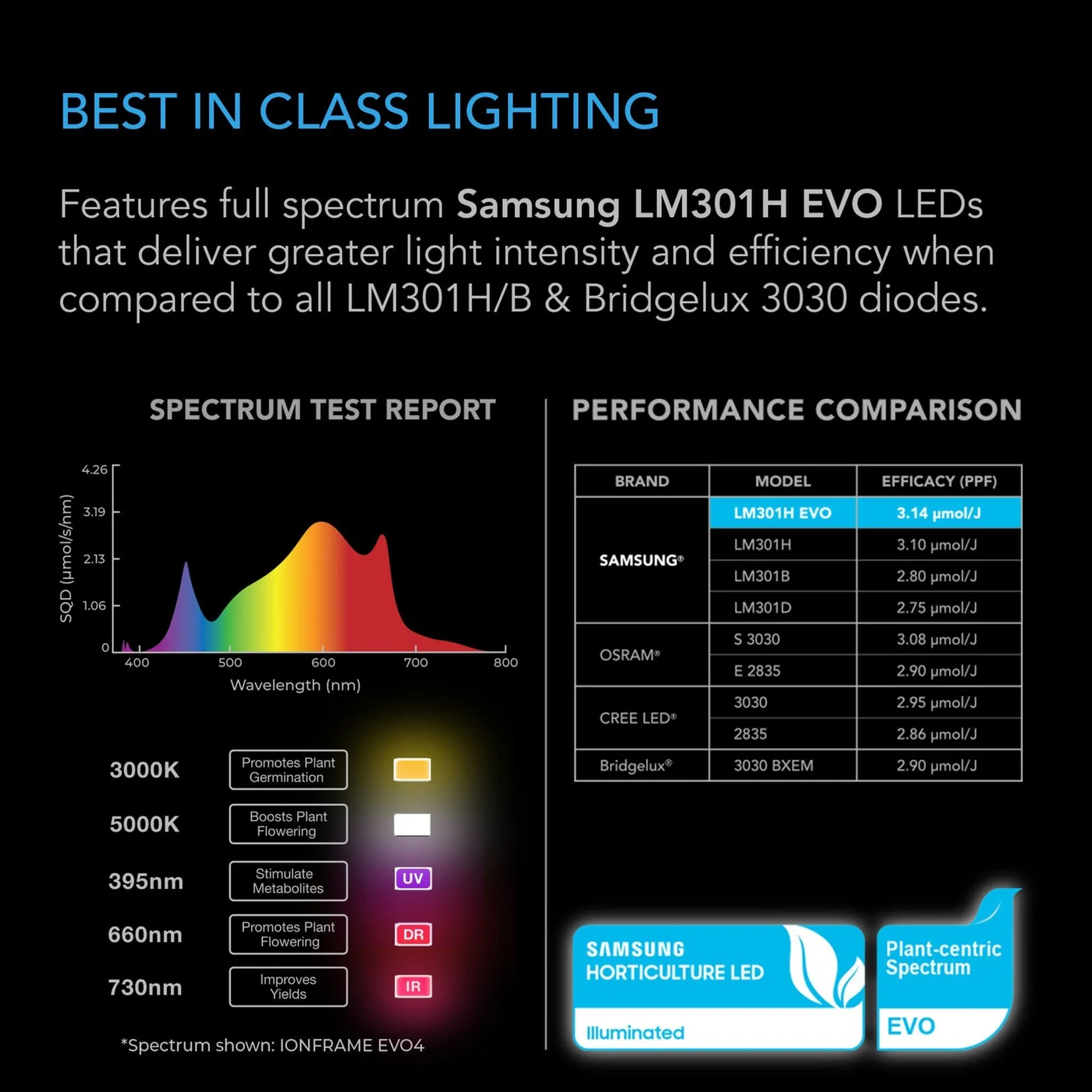

- Total Diodes: 896 (360 x 3000K and 500 x 5000K Samsung LM301H EVO; 4 x Seoul 395 nm UV; 28 x OSRAM 660 nm red; 4 x OSRAM 730 nm far red)
- Spectrum: Full spectrum: 395 nm, 3000K, 5000K, 660 nm, 730 nm

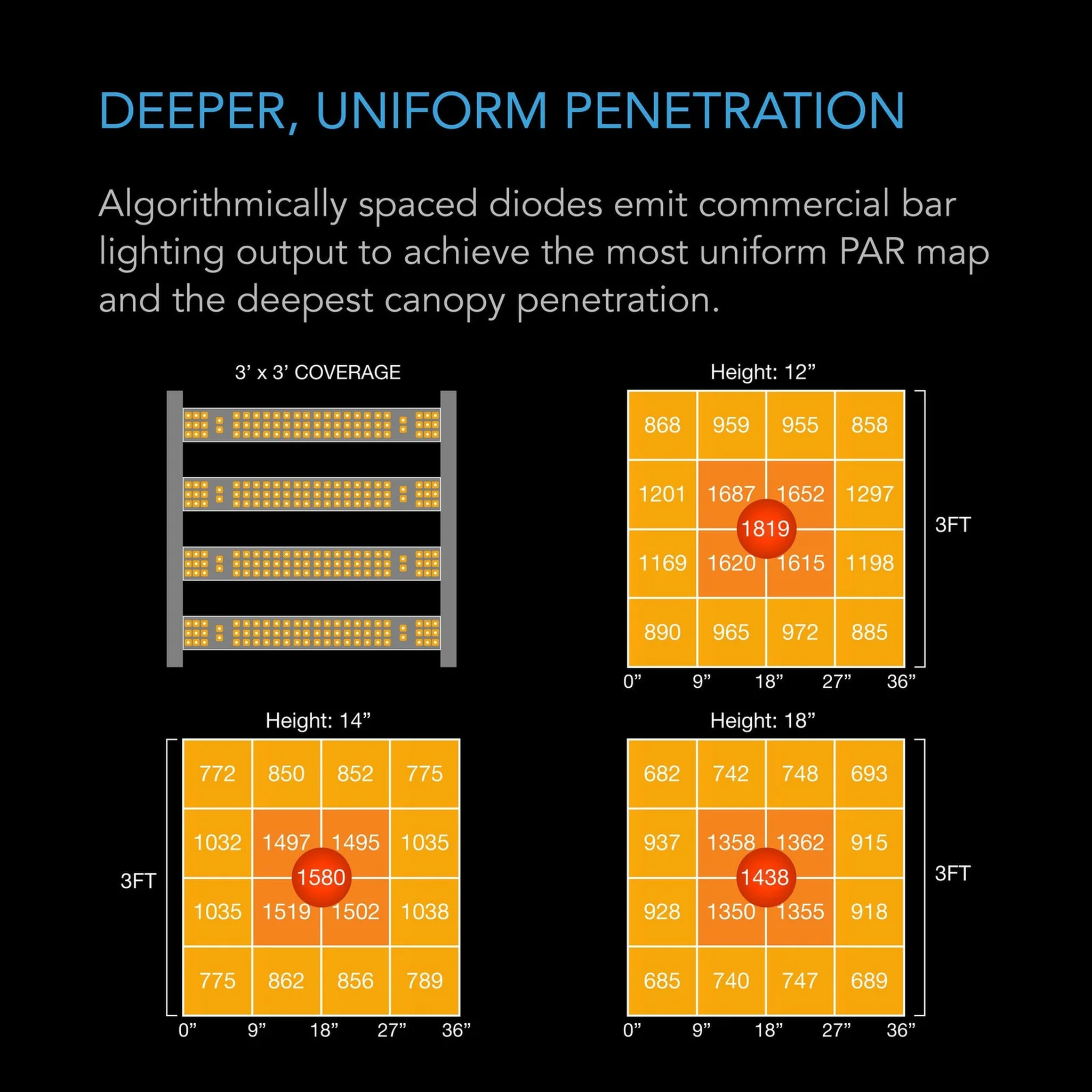

- PPFD: 1819 (manufacturer rated; no stated measurement height)
- Efficacy: 3.14 µmol/J single-diode PPE (manufacturer rating for the diode, not the whole fixture)
- Flower Coverage: 91 x 91 cm (3 x 3 ft)
- Veg Coverage: 122 x 122 cm (4 x 4 ft)
- CO2-Enriched Coverage: 61 x 61 cm (2 x 2 ft) in sealed rooms at 1200+ ppm
- Dimming: Ten intensity levels via the included schedule controller
- Scheduling: Timed cycles, sunrise/sunset ramps 0:00 to 6:00 h, battery-backed clock
- Voltage: 100-277V AC, 50/60 Hz
- IP Rating: IP65
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Operating Humidity: 35 to 85% RH
- Life Expectancy: 50,000 hours

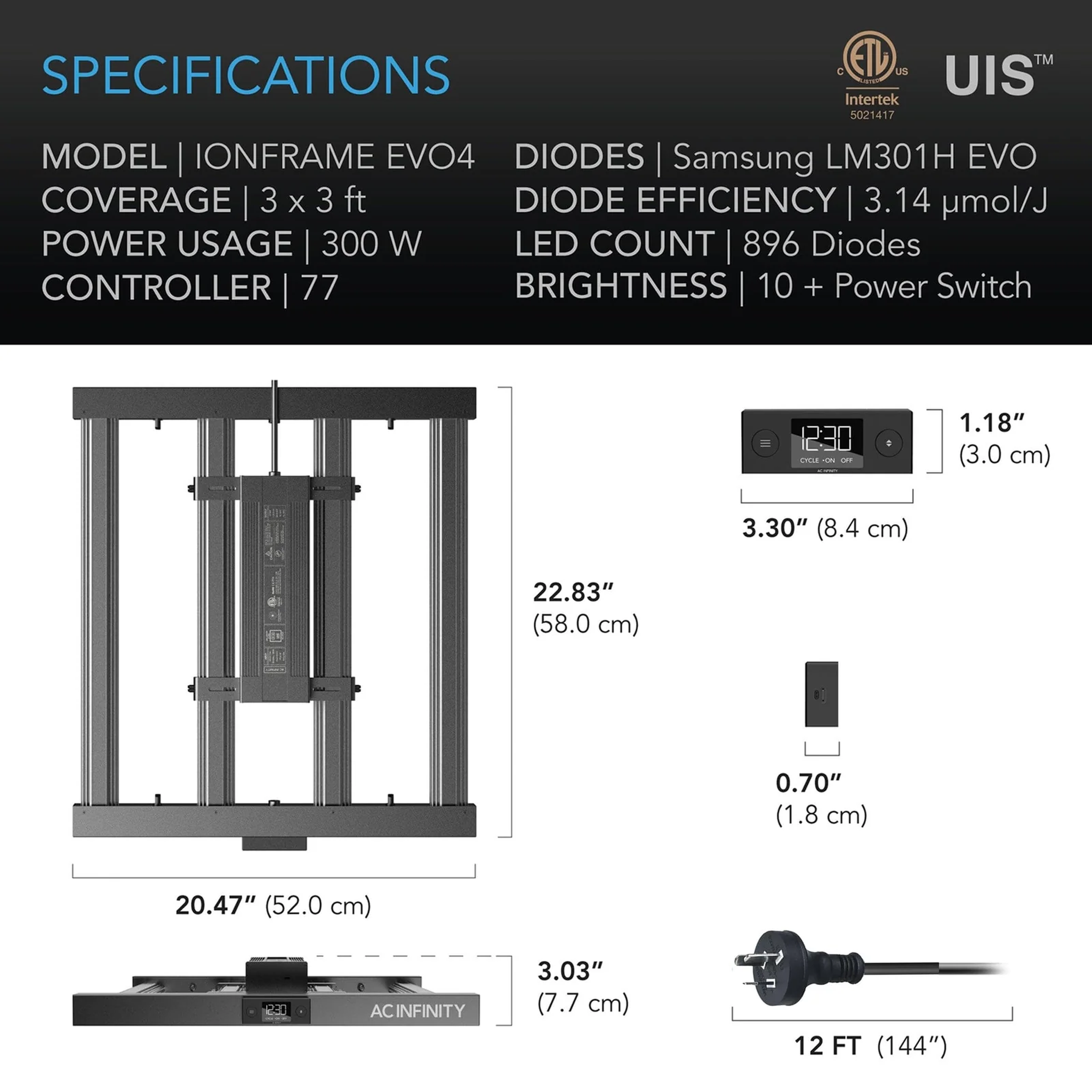

- Light Dimensions: 52.0 x 58.0 x 7.6 cm (20.47 x 22.83 x 2.99 in)
- Driver Dimensions: 18.2 x 4.0 cm (7.16 x 1.57 in)
- Connectivity: UIS platform; compatible with Controller 69 Pro, 69 Pro+ and Ai+ (sold separately)
- Certifications: ETL (#5021417)
- Warranty: 2 years
