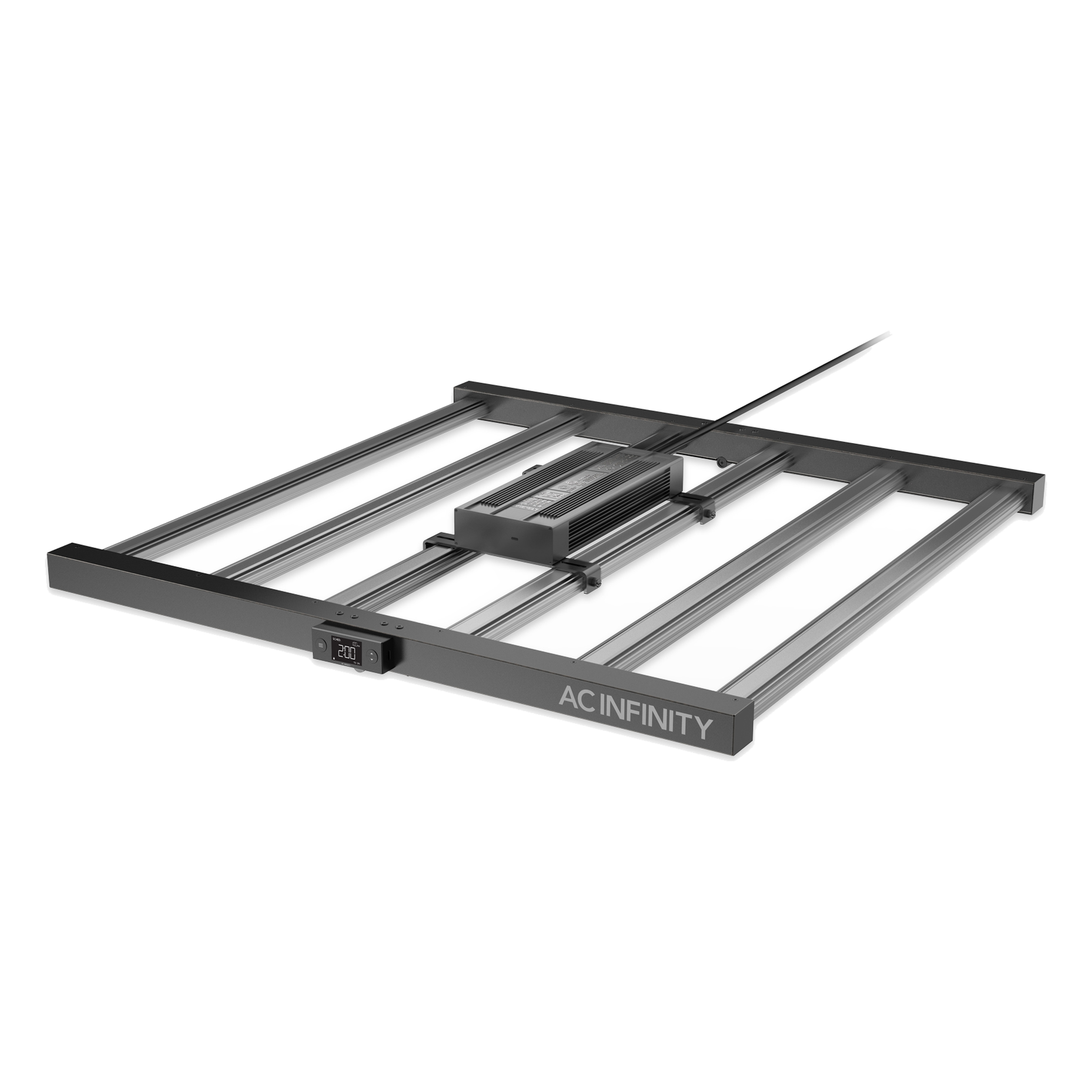

AC Infinity Ionframe EVO6 LED
Built for the most common hobby footprint of all, the AC Infinity Ionframe EVO6 LED puts 500 W over a 122 x 122 cm (4 x 4 ft) tent, the mid-point of the five-model IONFRAME EVO family. It carries exactly double the diode count of the entry EVO3 to light double the flowering area, and drops straight over an AC Infinity Cloudlab 844 Grow Tent 1.22 x 1.22 x 2.03 m with veg coverage to spare.

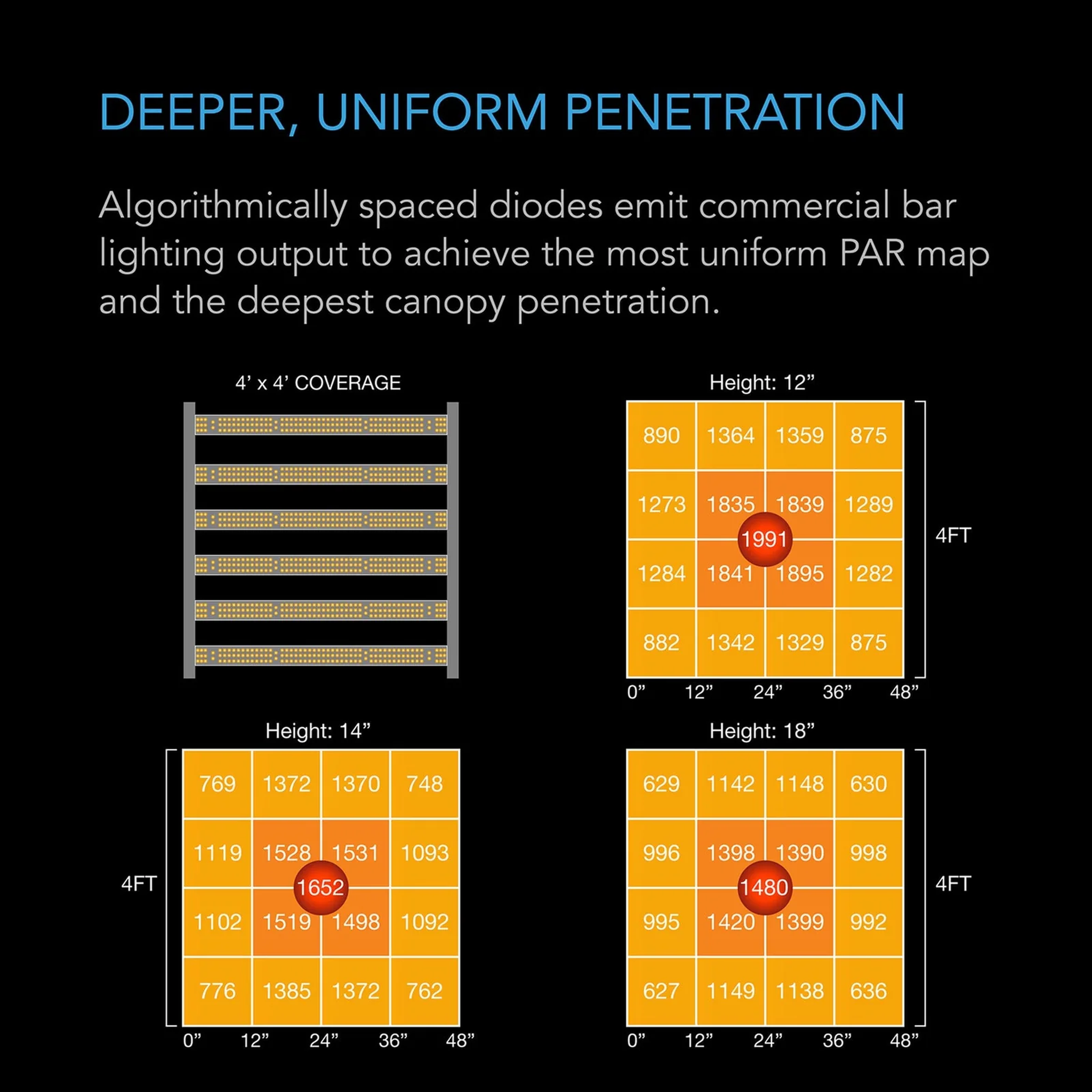

The array is the first in the series to pass a thousand diodes: 1680 in total, split into 1074 Samsung LM301H EVO whites at 3000K, 540 at 5000K, 6 Seoul 395 nm UV, 54 OSRAM 660 nm red and 6 OSRAM 730 nm far red. AC Infinity quotes up to 1991 PPFD from the array and the platform's 3.14 µmol/J single-diode efficacy, figures published without a stated measurement height, and describes the diode spacing as algorithmically set to even out coverage across the canopy. The housing is sealed to IP65 against dust and tent humidity, rated 0 to 60°C (32 to 140°F) and 35 to 85% RH, with a 50,000 hour life expectancy and a passive-cooled 18.2 x 4.0 cm (7.16 x 1.57 in) driver that detaches to sit on the frame, a tent wall or outside the tent on the included extension cord.
At 82.0 x 83.0 x 8.6 cm (32.28 x 32.67 x 3.38 in), the panel hangs from four corner anchors at a minimum of 30 cm (1 ft) above the canopy, with wire hangers and rope clips in the box. The included schedule controller covers ten intensity levels, timed cycles and sunrise/sunset ramps, and the light joins the wider UIS ecosystem through an AC Infinity Ai+ Environmental Controller for app control, climate data and automation. Veg coverage runs to 152 x 152 cm (5 x 5 ft) and sealed CO2 rooms rate at 91 x 91 cm (3 x 3 ft); a grower flowering a 152 cm square tent should look to the AC Infinity Ionframe EVO8 LED instead. Doubling the EVO3's diode budget across a square frame lets a single fixture flower a full 4 x 4 tent from one hanging point.
NOTE: this is a high-output grow light. Never look directly at the diodes while the fixture is running, and consider rated eye protection when working under it at full intensity. Per the manufacturer's manual: do not hardwire the fixture, do not operate it in wet, flammable or explosive atmospheres, unplug it before installing, servicing or moving it, and do not rely on programmed on/off schedules as the sole means of cutting power.
1680 EVO Diodes
Samsung LM301H EVO whites joined by UV, deep red and far red across the bar array.
4x4 Workhorse
Built to the most common hobby footprint, one fixture to flower an entire 122 cm square tent.
IP65 Sealed
Rated against dust and moisture for permanent duty inside a humid grow tent.
Back-Order
Free delivery:
on all orders over
$499!
Verified by Hydro Oasis
2 Years warranty · 30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
AC Infinity Ionframe EVO6 LED
Key Highlights
expand_more
- 1680 diodes, exactly double the EVO3's count, lighting double the flowering area
- Covers 122 x 122 cm (4 x 4 ft) of flower and 152 x 152 cm (5 x 5 ft) of veg, the most common hobby tent footprint
- AC Infinity rates output at up to 1991 PPFD with 3.14 µmol/J single-diode efficacy

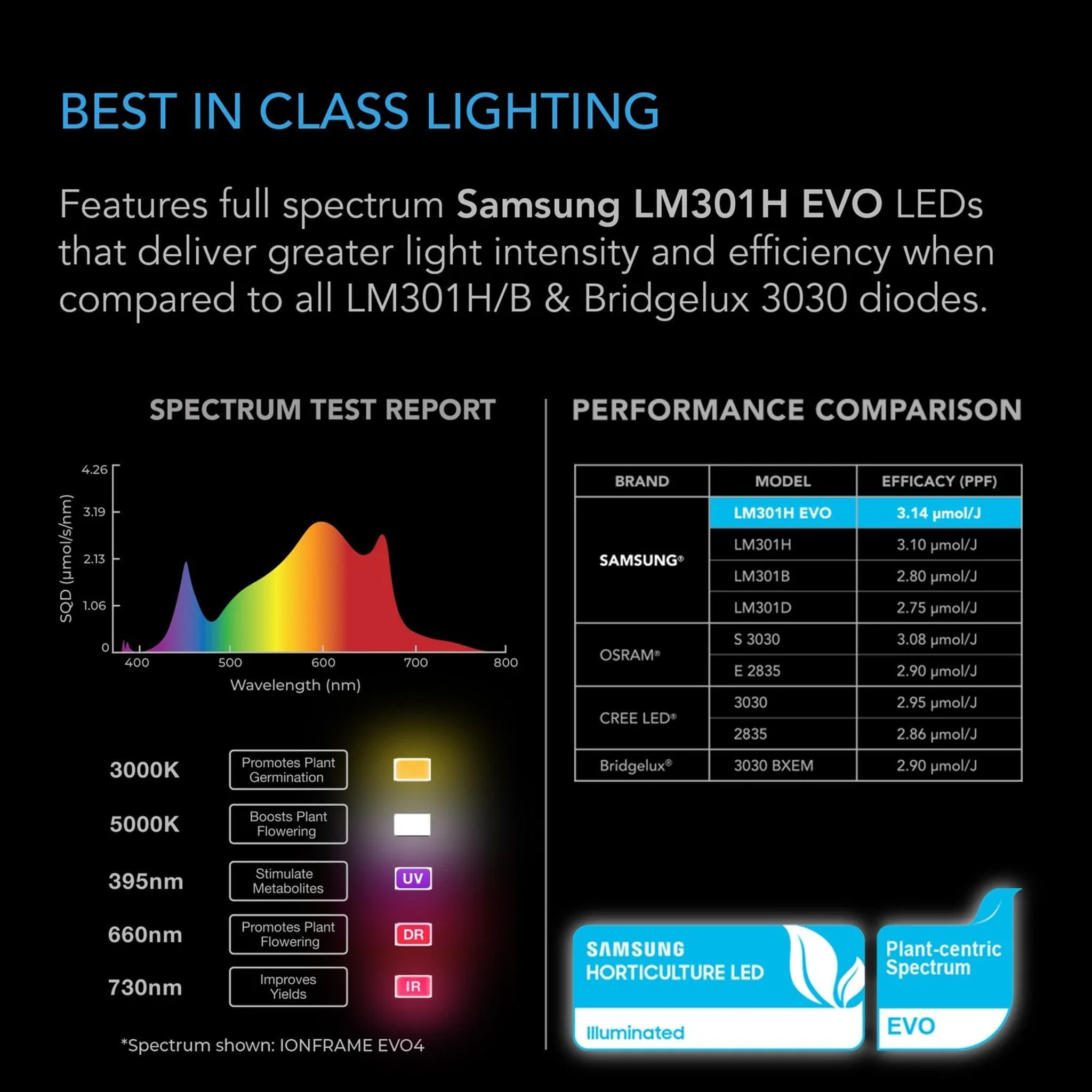

- White mix of 1074 x 3000K and 540 x 5000K, plus 6 x UV, 54 x 660 nm red and 6 x far-red diodes
- First model in the series to pass 1000 diodes
- Rated for a 91 x 91 cm (3 x 3 ft) sealed room running supplemental CO2
- Ten-level dimming with sunrise/sunset ramps from the included schedule controller, upgradeable to UIS app control
Directions for Use
expand_more
- Suspend the panel from its four corner anchors using the included stainless steel wire hangers and carabiners on the tent roof bars, or the rope clips for a lower position.
- Hold at least 30 cm (1 ft) of clearance above the canopy.
- Seat the LED driver on the frame, bracket it to a tent wall, or place it outside the tent using the extension cord supplied.
- Connect and mount the schedule controller: UIS cord in, then magnet to the frame or screws to a wall.
- Start intensity per the manual's guide: 40% for seedlings, 80% through veg, 100% into flower.
- Program the daily cycle, or a sunrise/sunset ramp of up to six hours; the clock rides through power loss on its internal battery.
- Upgrade to a UIS controller such as the Ai+ Environmental Controller (sold separately) for app control and climate automation.

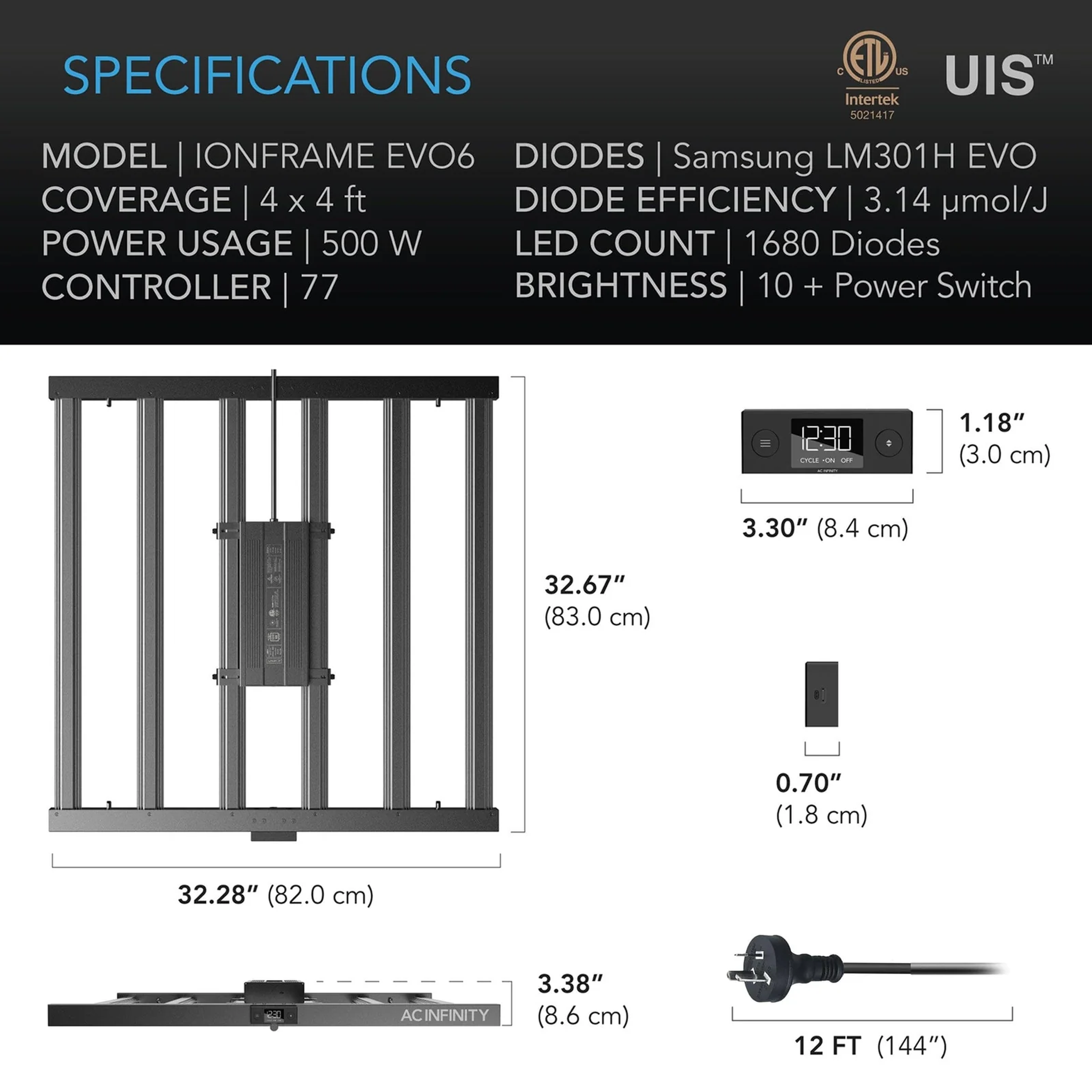

Technical Specifications
expand_more
- Product Model: AC-IF6K
- UPC Code: 819137024069
- Wattage: 500 W
- Total Diodes: 1680 (1074 x 3000K and 540 x 5000K Samsung LM301H EVO; 6 x Seoul 395 nm UV; 54 x OSRAM 660 nm red; 6 x OSRAM 730 nm far red)
- Spectrum: Full spectrum: 395 nm, 3000K, 5000K, 660 nm, 730 nm
- PPFD: 1991 (manufacturer rated; no stated measurement height)
- Efficacy: 3.14 µmol/J single-diode PPE (manufacturer rating for the diode, not the whole fixture)
- Flower Coverage: 122 x 122 cm (4 x 4 ft)
- Veg Coverage: 152 x 152 cm (5 x 5 ft)
- CO2-Enriched Coverage: 91 x 91 cm (3 x 3 ft) in sealed rooms at 1200+ ppm
- Dimming: Ten intensity levels via the included schedule controller
- Scheduling: Timed cycles, sunrise/sunset ramps 0:00 to 6:00 h, battery-backed clock
- Voltage: 100-277V AC, 50/60 Hz
- IP Rating: IP65
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Operating Humidity: 35 to 85% RH
- Life Expectancy: 50,000 hours
- Light Dimensions: 82.0 x 83.0 x 8.6 cm (32.28 x 32.67 x 3.38 in)
- Driver Dimensions: 18.2 x 4.0 cm (7.16 x 1.57 in)
- Connectivity: UIS platform; compatible with Controller 69 Pro, 69 Pro+ and Ai+ (sold separately)
- Certifications: ETL (#5021417)
- Warranty: 2 years
