AC Infinity Tent Equipment Board

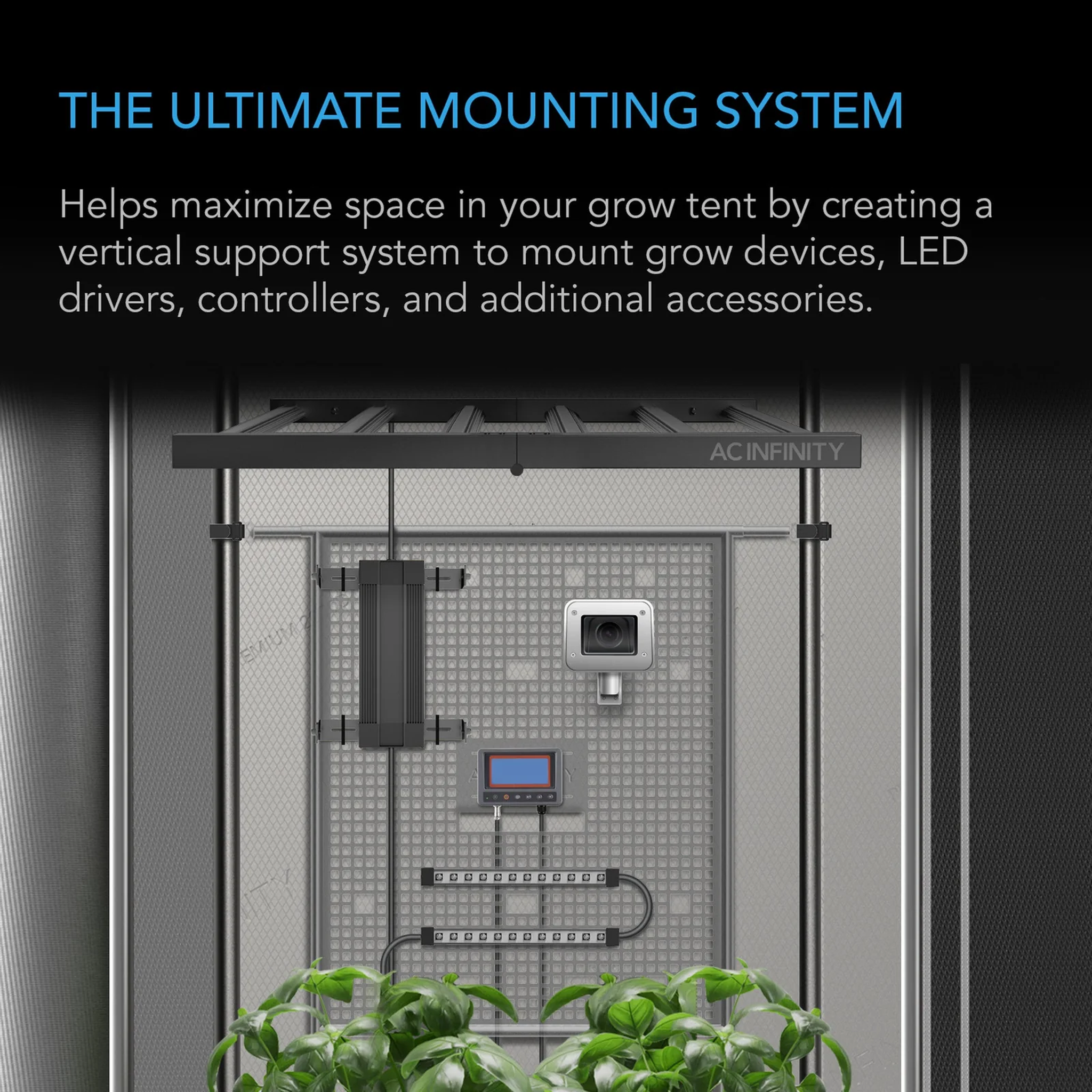

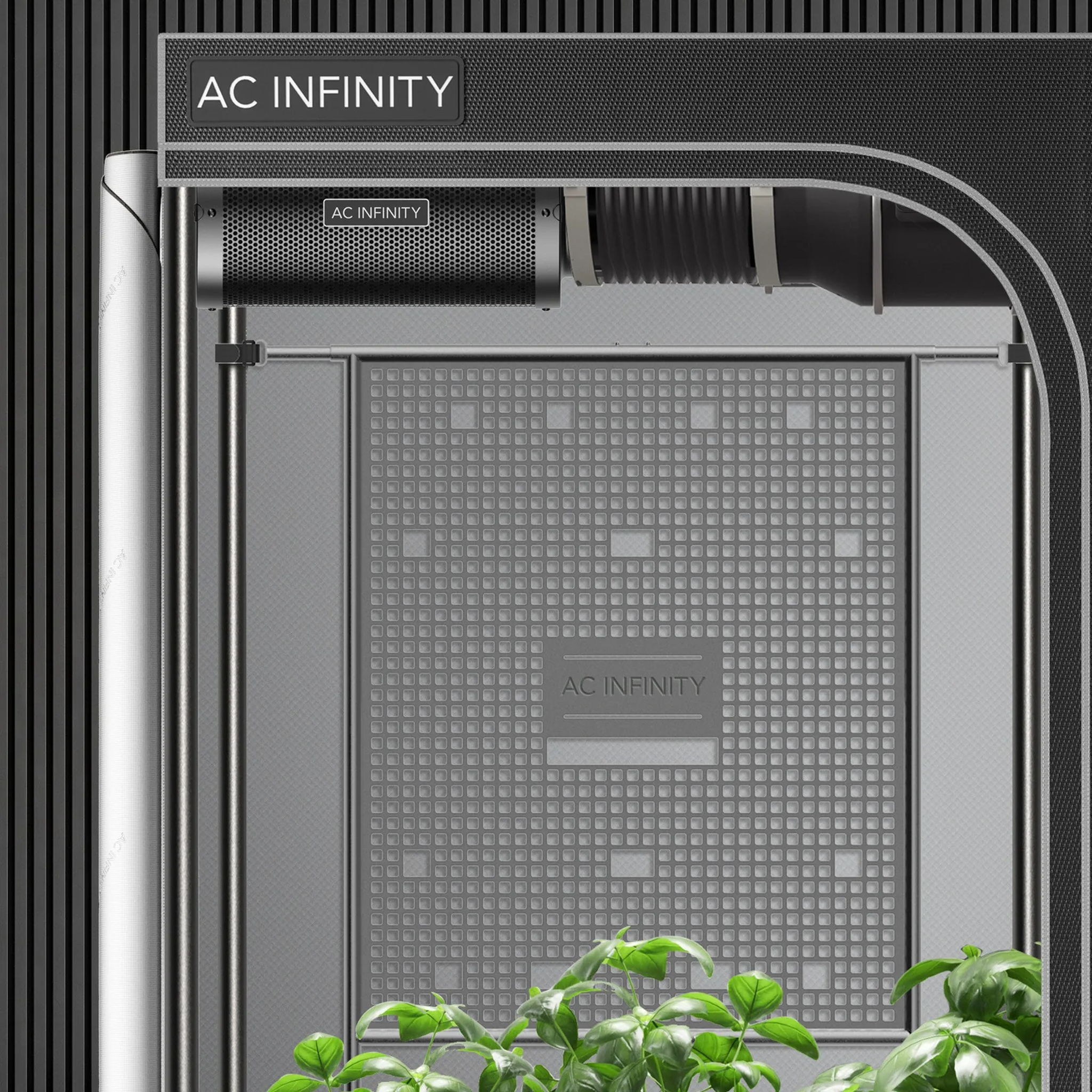

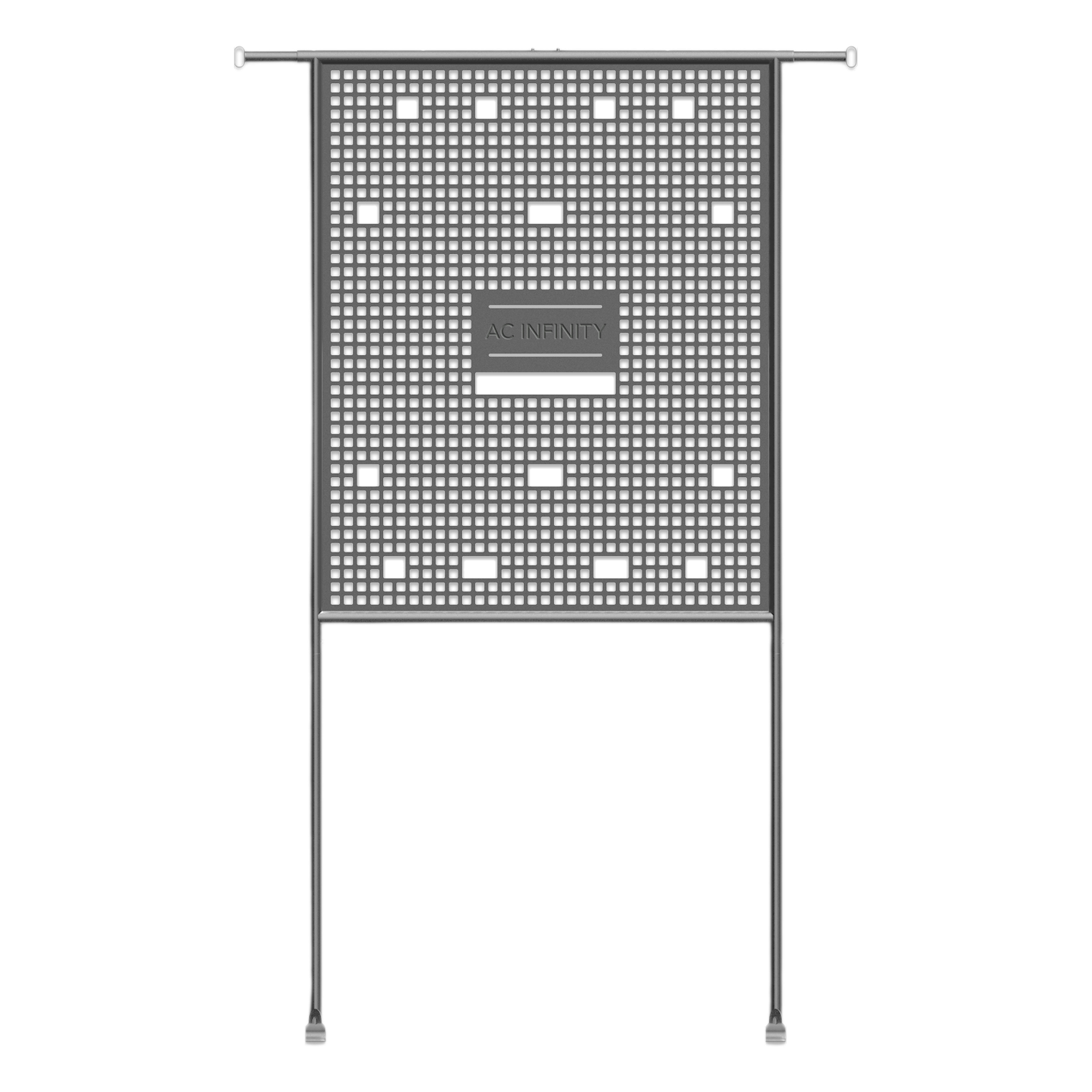

The AC Infinity Tent Equipment Board is a wall-mounted steel organiser grid that stands flat against the inside wall of a grow tent, giving controllers, LED drivers, power boards and hand tools a dedicated vertical home instead of a spot on the floor. Where the AC Infinity Mounting Bars add horizontal support across the top of the tent frame for hanging equipment, this board builds a vertical workstation panel along a wall the canopy cannot use, keeping electronics dry, visible and clear of daily watering. It suits any setup whose tent floor has collected a tangle of drivers, timers and leads, from a compact single tent through to tents up to 152 x 152 cm (5 x 5 ft).
The panel is powder-coated steel, 67.7 cm (26.65 in) wide by 82.7 cm (32.55 in) tall, with a perforated grid face rated to hold 22.7 kg (50 lb) while withstanding the heat and humidity of a sealed grow space. Equipment attaches four ways: devices with magnetic backings grip the steel face directly, device bolts thread into the slots at the centre of the board for keyhole hanging, and the included wire ties or standard hooks handle everything else. Support comes from four poles: two hooked poles insert vertically into openings at the bottom of the board and hook onto the back of the tent frame base, while two stabilising poles insert horizontally at the top and strap to the tent frame with the included hook-and-loop straps. Each pole extends smoothly between 91 cm (3 ft) and 152 cm (5 ft) and clicks to lock its length, so the board installs and repositions in minutes without tools; the hooked segments measure 57.0 cm (22.44 in) and the stabilising segments 42.3 cm (16.65 in), on 2.0 cm (0.78 in) and 3.0 cm (1.18 in) diameter tubing.

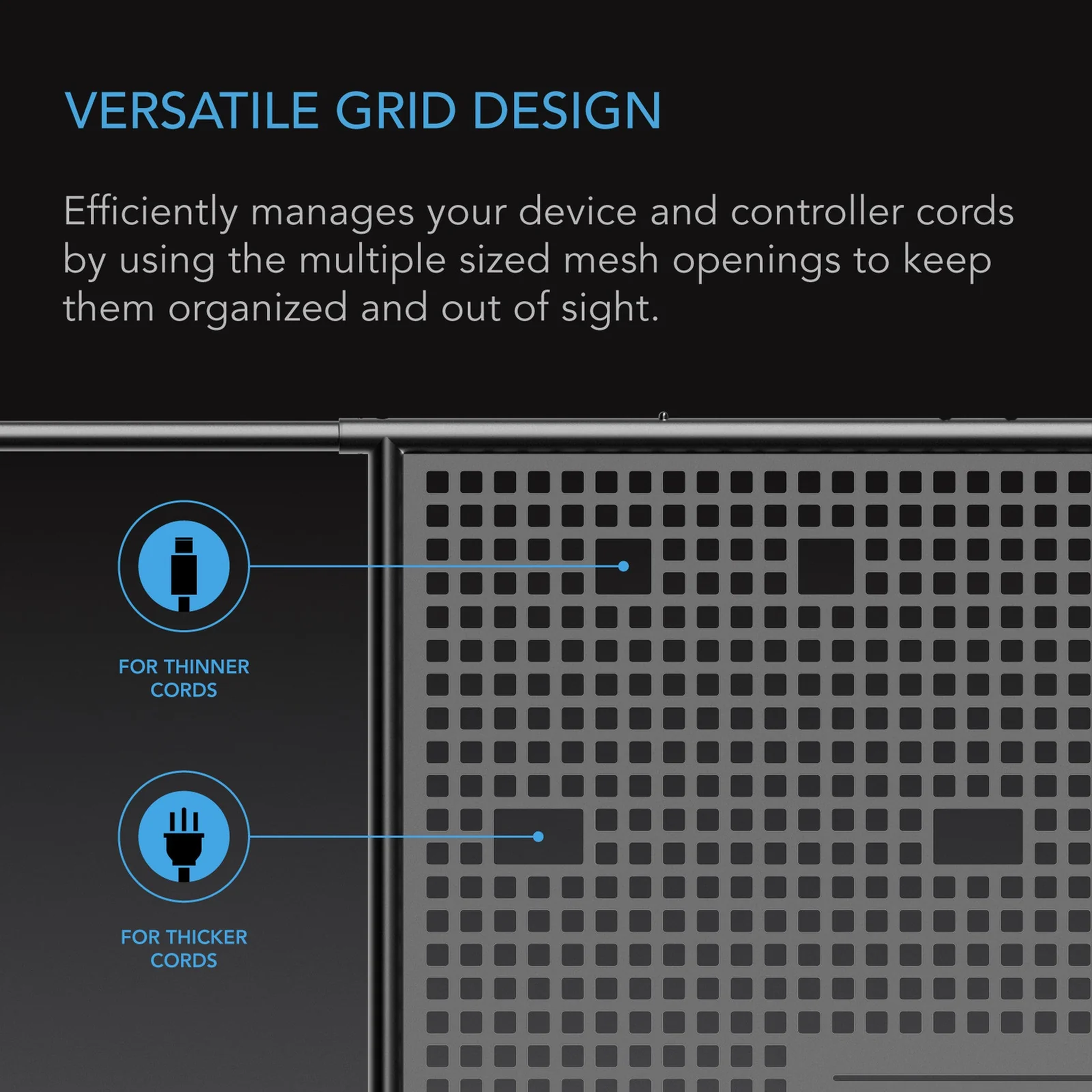

Cord management is built into the grid: wider openings pass plugs and cables through the face, a large slot below the AC Infinity logo routes them behind the board, and the two 18.2 x 2.5 cm (7.16 x 0.98 in) hook-and-loop straps plus twenty wire ties secure longer runs. Wire-tying a grow light's LED driver to the board also shifts its heat concentration away from the light and the canopy. Board placement can be rotated to keep duct ports unobstructed, and the kit ships complete: one gear board, two hooked poles, two stabilising poles, two hook-and-loop straps and twenty wire ties. Inside a tent such as the AC Infinity Cloudlab 866 Grow Tent 1.5 x 1.5 x 2 m it pairs naturally with the AC Infinity Ai+ Environmental Controller, which earns a permanent, eye-level spot on the grid. Its hooked poles grip the tent frame base while the strapped top poles brace the panel, letting a full control station hang against the tent wall with every cord routed out of sight.
NOTE: the gear board is not a replacement for a grow tent bar and will not support the weight of LED grow lights or heavy ventilation equipment. Hang lights and fans from the tent's own frame or dedicated mounting bars.
A wall-mounted steel grid that hangs on the tent frame, holding up to 22.7 kg (50 lb) of controllers and drivers with cords routed behind.
Mounts Gear Four Ways
Fixes controllers, drivers and tools anywhere on the grid with magnets, screws, wire ties or hooks.
Holds 22.7 kg

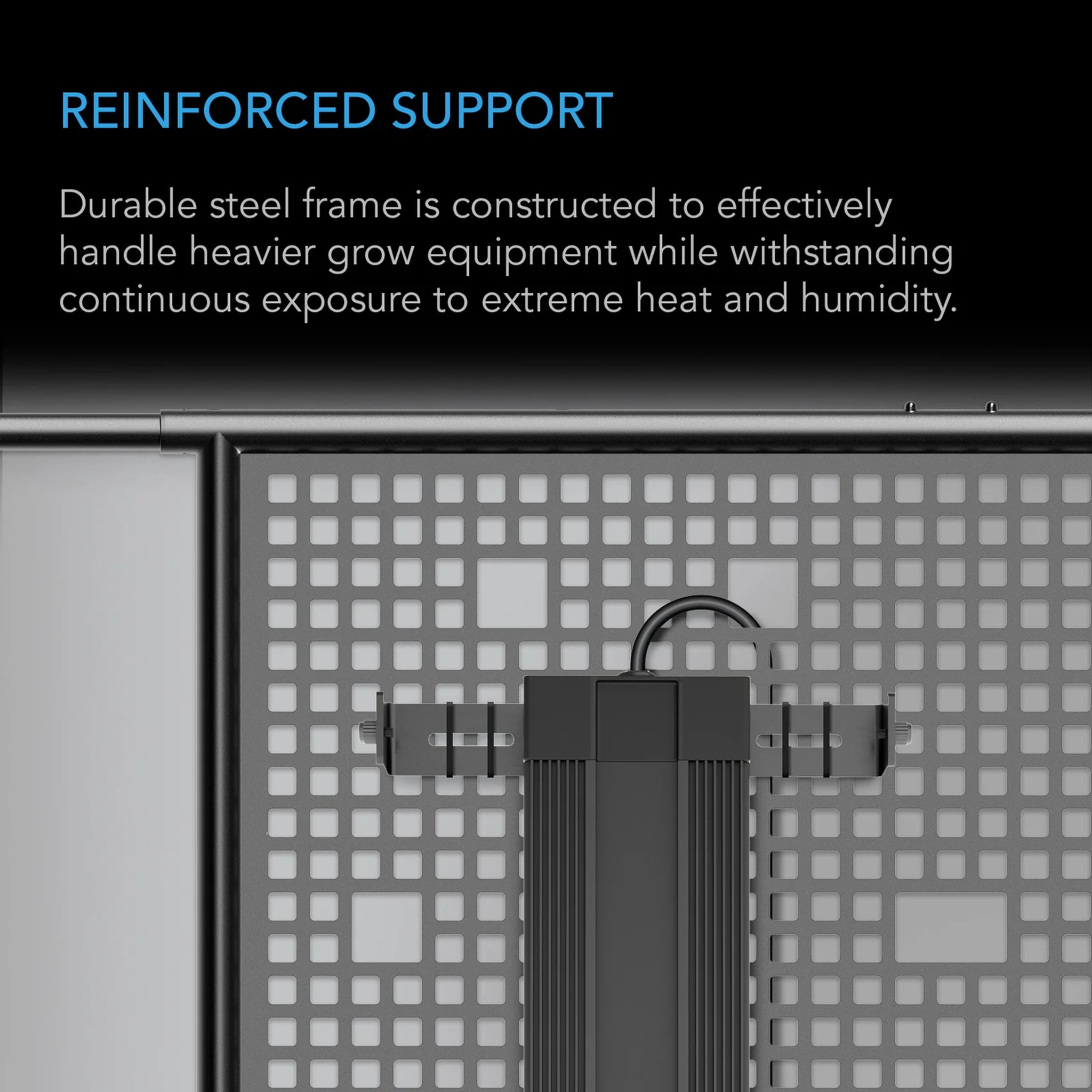

Powder-coated steel takes 22.7 kg (50 lb) of equipment in high heat and humidity.
Hides Cord Clutter
Cables route through the grid and run behind the board, off the tent floor and out of sight.
Back-Order
2 Years warranty · 30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
AC Infinity Tent Equipment Board
Key Highlights
expand_more
Key Highlights
- Central screw slots take device bolts for keyhole hanging, while magnetic-backed devices grip the steel face directly
- Rated to hold 22.7 kg (50 lb) of controllers, drivers, power boards and tools
- Tool-free install: hooked poles grip the tent frame base and hook-and-loop straps lock the top poles to the frame

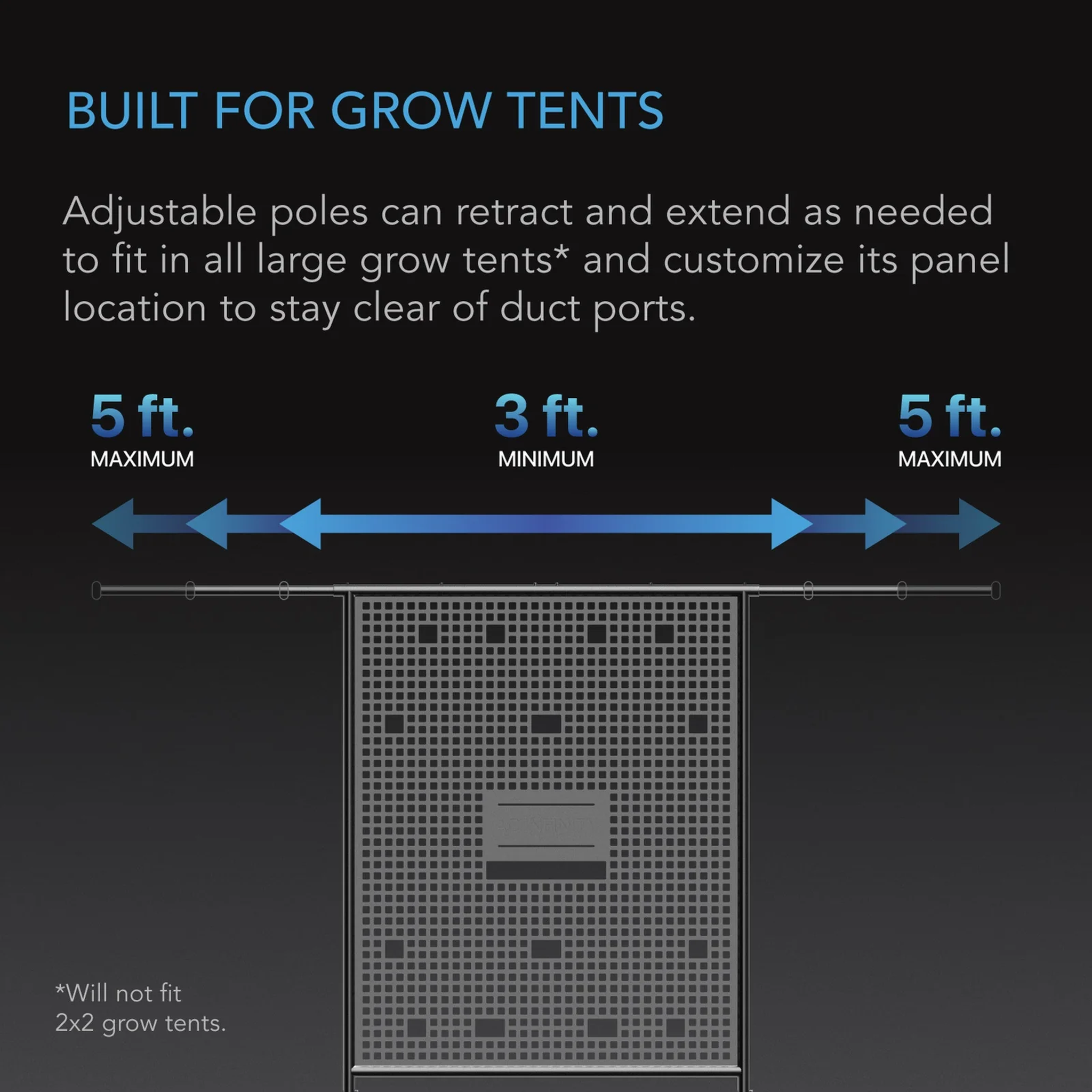

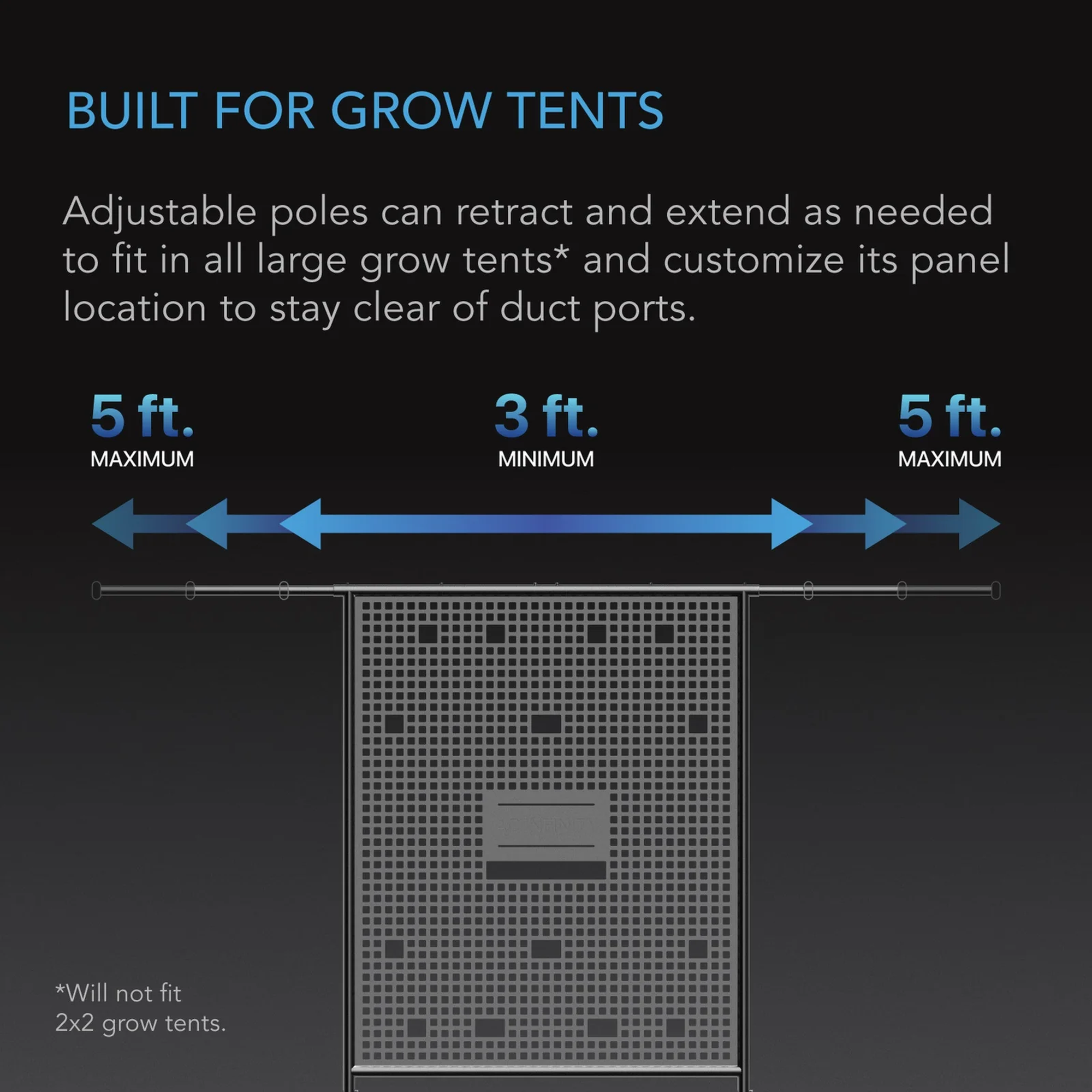

- Poles click-lock anywhere from 91 cm (3 ft) to 152 cm (5 ft), fitting tents up to 152 x 152 cm (5 x 5 ft)
- Large slot below the logo routes cords behind the board; 20 included wire ties and 2 straps tame longer runs
- Kit includes gear board, 2 hooked poles, 2 stabilising poles, 2 hook-and-loop straps and 20 wire ties
- Wire-tying an LED driver to the board shifts its heat away from the light and the canopy
- Powder-coated grey finish resists corrosion in humid tents; 2-year AC Infinity warranty
Directions for Use
expand_more
Directions for Use
- Insert the two hooked poles vertically into the openings at the bottom of the gear board.
- Insert the two stabilising poles horizontally into the openings at the top of the board.
- Extend each pole to suit the tent and make sure it clicks into place to lock its length.
- Secure the hooked poles onto the back of the grow tent's frame base.
- Fasten the stabilising poles to the tent frame using the included hook-and-loop straps.
- Rotate the board's placement if needed so duct ports stay unobstructed, then mount equipment using magnets, screws, wire ties or hooks.
- Route device cords through the large slot below the AC Infinity logo so they run behind the board, securing longer runs with the straps or wire ties.

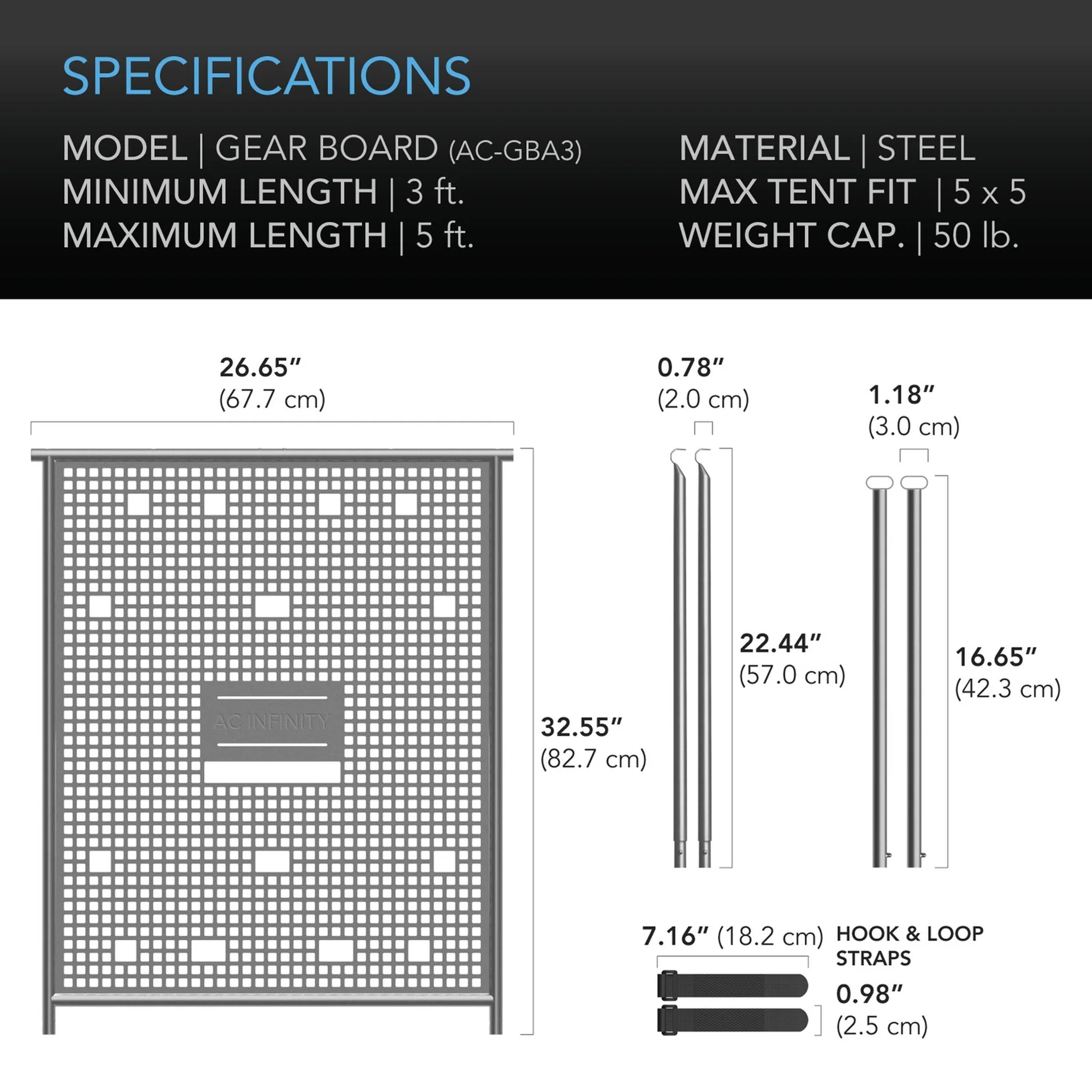

Technical Specifications
expand_more
Technical Specifications
- Product Model Gear Board (AC-GBA3)
- UPC Code 819137024465
- Weight Capacity 22.7 kg (50 lb)
- Max Tent Fit 152 x 152 cm (5 x 5 ft)
- Mounting Methods Magnetic backing, screws, wire ties, hooks
- Material Powder-coated steel
- Colour Grey
- Board Dimensions 67.7 x 82.7 cm (26.65 x 32.55 in)
- Pole Length Range 91 to 152 cm (3 to 5 ft)
- Hooked Pole Segment 57.0 cm (22.44 in)
- Stabilising Pole Segment 42.3 cm (16.65 in)
- Pole Diameters 2.0 cm (0.78 in) and 3.0 cm (1.18 in)
- Hook-and-Loop Straps 18.2 x 2.5 cm (7.16 x 0.98 in)
- Kit Contents Gear board x1, hooked pole x2, stabilising pole x2, hook-and-loop strap x2, wire tie x20
- Warranty 2 years
