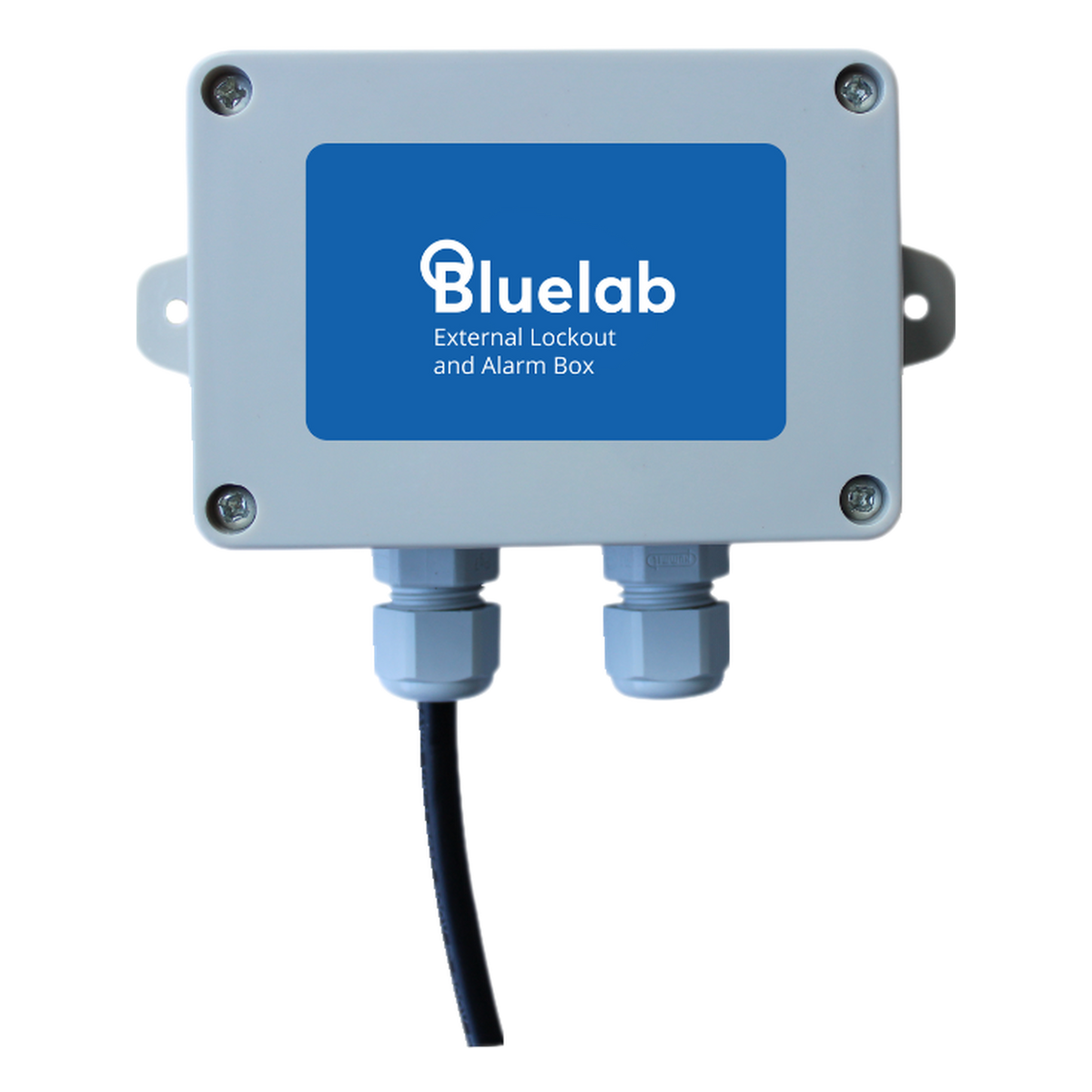

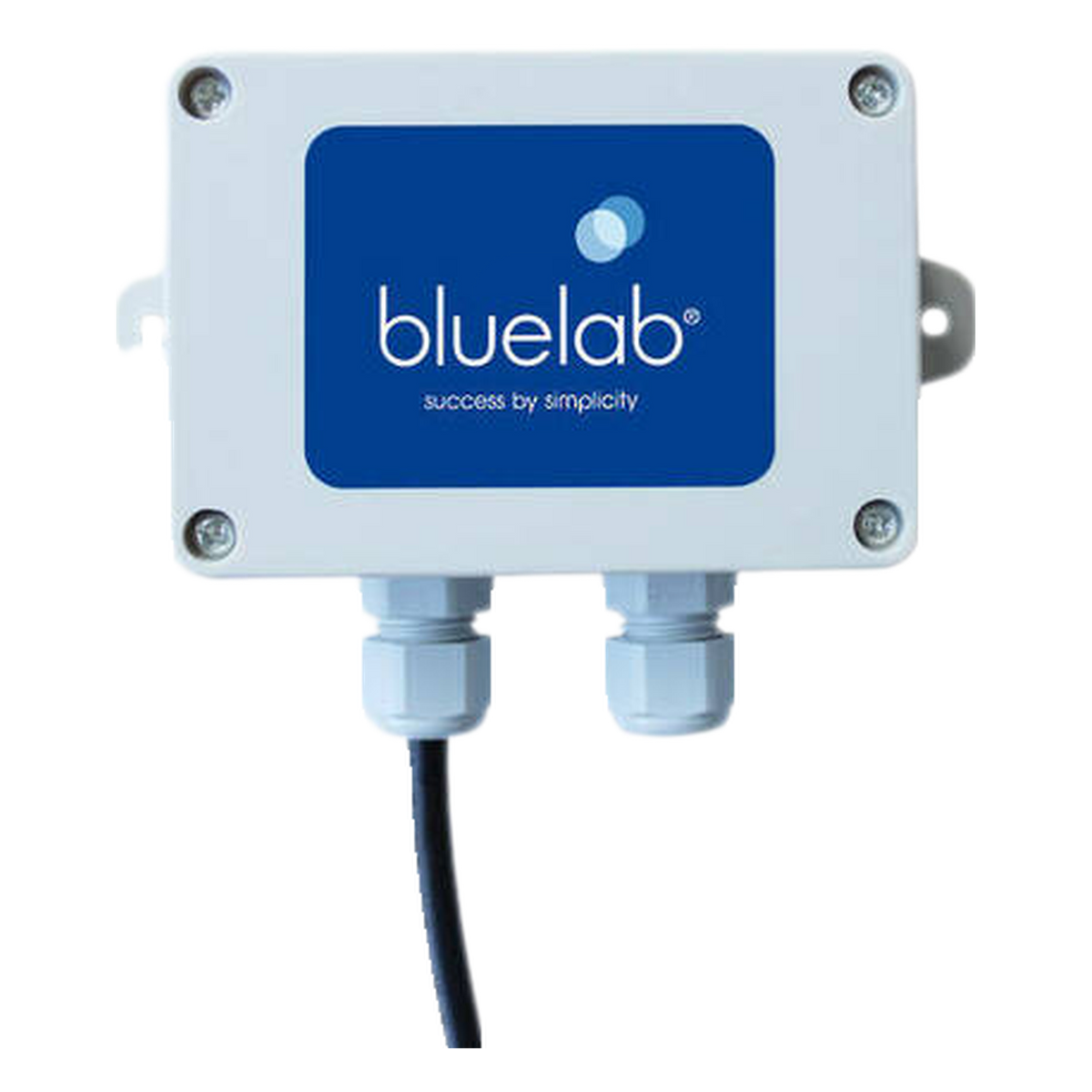

Bluelab External Alarm Box
The Bluelab External Alarm Box is an add-on for the Bluelab Pro Controller Wi-Fi that lets external switches decide when dosing is allowed to run. Connect a float switch on a reservoir or nutrient tank and the controller automatically enters lockout mode when that switch is triggered, stopping all dosing until it is reset. That gives an automated dosing system a safeguard tied to the tanks around it, guarding against overdosing if part of the system fails or nutrient levels run low, and it opens the way to alarms that let someone know about it.
The grower wires in the switches, so the box can work with whichever sensor suits the installation. Lockout can be triggered by either a normally open or a normally closed switch. A normally open switch keeps its contacts apart at rest and closes them when it is actuated. A normally closed switch does the reverse: it holds its circuit closed until it is actuated, then opens it. Float switches are commonly made both ways, and because the box accepts either type, the switch can be chosen for the job rather than for what the controller will accept. An external alarm, such as a horn or a flashing light, can also be connected so the alert reaches people who are not standing at the controller.
As well as protecting against tank-level problems, the box lets the Pro Controller work with an irrigation controller so dosing pauses during feed out. That stops additions being made while the solution is being pumped out to the plants. Because a lockout holds until it is reset, a tripped switch stops dosing and keeps it stopped, which leaves time to find the cause before the controller starts adding concentrate again. When planning the setup, decide which tanks need a float switch, whether an irrigation controller should pause dosing, and where a horn or light will be seen or heard. Then wire each one in to suit the system.
Give your Pro Controller a hard stop when the tank runs low!
Flexible Switch Wiring
Accepts both normally open and closed switches
Audible Alert Option
Wire in a horn or flashing light
Works With Irrigation
Pauses dosing while the feed is pumping out
Sold out
Verified by Hydro Oasis
30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
Bluelab External Alarm Box
Key Highlights
expand_more
Key Highlights
- External switch input locks out all Pro Controller dosing
- Dosing stays locked out until reset
- Works with normally open and normally closed switches
- Connects an external horn or flashing light alarm
- Pauses dosing during irrigation feed out
- Add-on for the Bluelab Pro Controller Wi-Fi
Directions for Use
expand_more
Directions for Use
Safety
Isolate the dosing system before wiring in or adjusting an external switch or alarm.
Wear gloves and eye protection when working near the nutrient concentrates the Pro Controller doses, such as when fitting a float switch to a tank.
Technical Specifications
expand_more
Technical Specifications
- Product Model PROEXBOX
- Function Dosing lockout from external switches and external alarm connection
- Switch Types Normally open and normally closed
- Alarm Options External horn or flashing light
- Compatibility Bluelab Pro Controller Wi-Fi
