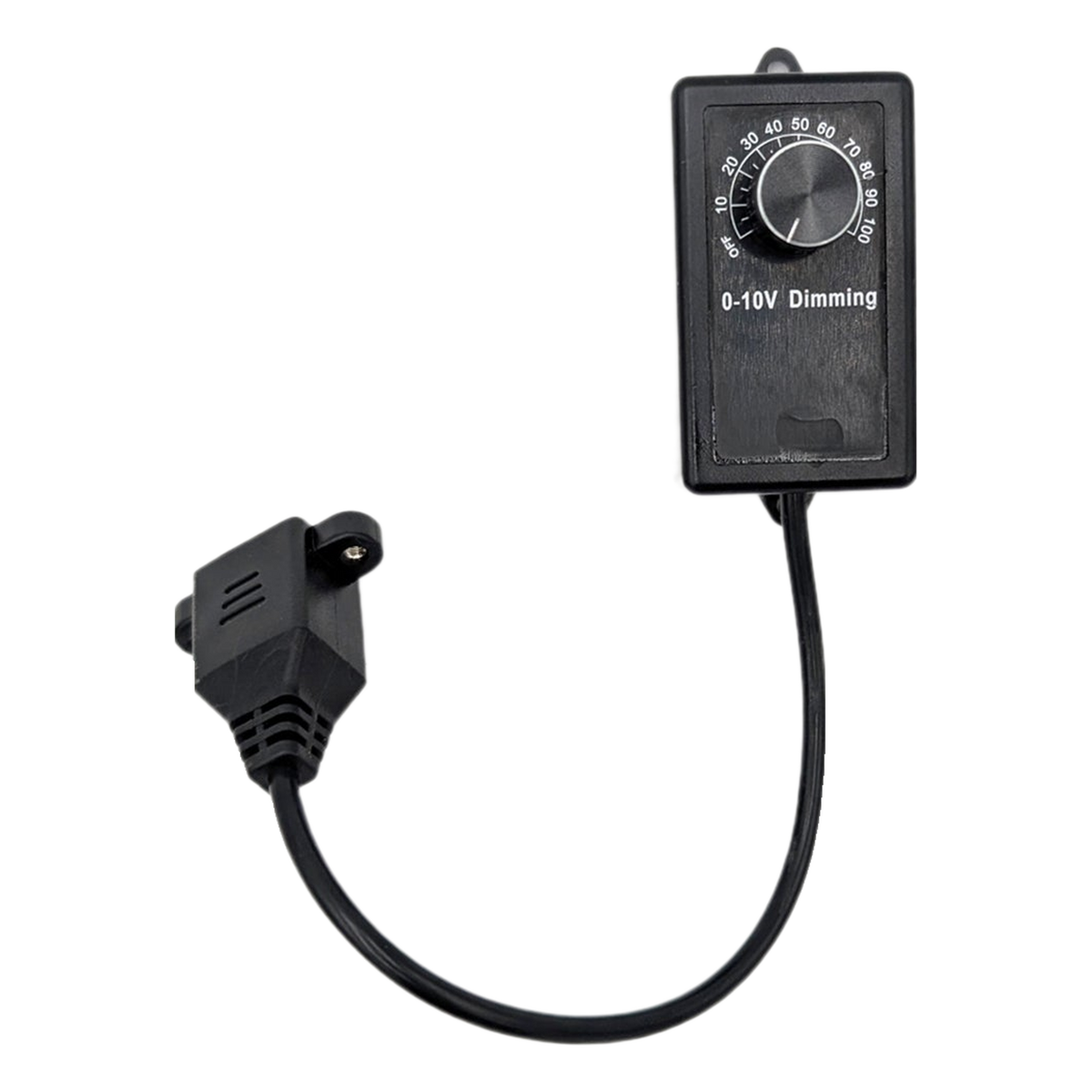

DIGI-LUMEN 0 - 10 V Analog Dimmer
The DIGI-LUMEN Analogue Dimmer is a plug-in intensity control for Digi-Lumen Extreme LED grow lights, and it does one job: it puts a single dial on the end of a lead so light output can be set by hand instead of being left at full for the whole cycle. The plug goes into the dimming port on the fixture, the lead runs down to wherever it is comfortable to work, and turning the dial raises or lowers the light. There is no app to install, nothing to pair, no firmware and no scheduling. The dial position is the setting.
Dimming on an LED fixture happens inside the fixture itself. The driver accepts an external control input alongside its own supply and scales the light output to match it, so the dial is only telling the driver how far to go. That is why this accessory needs no connection of its own beyond the control lead, and why the fixture is still powered separately in the usual way. The lead is 3 m (9.8 ft) long and finishes in an RJ12 plug, which is the dimming connection fitted to the Extreme fixtures. Control is analogue from end to end, with nothing to update, nothing to pair and no settings menu sitting behind the dial.
It fits the Digi-Lumen Extreme 400W, 720W and 1000W LED grow lights, and the thing to check on any other fixture is that it carries the same dimming connection. Dimming is not only about light level. Pulling a fixture back from full output trims its heat contribution and its power draw at the same time, which is worth having in a small closed room and in the early weeks when full intensity is more than a seedling wants. What the dial will not do is anything on a schedule. There is no timer, no ramp and no way to store a setting, so a grower who wants sunrise and sunset behaviour, or changes made while they are away, needs a controller instead. As a dial it is deliberately plain: one thing to turn, one lead to run, and a setting that stays exactly where it was left until someone moves it. Keep the dial somewhere it will not be knocked, note where it sits when the plants are happy, and step the intensity up as the canopy fills in rather than jumping straight to full.
Turn one dial and set the light intensity to suit the plants!
Nothing To Set Up
No app, pairing or firmware to manage
Trims Heat And Power
Dial back output when full intensity is not needed
Dimming Within Reach
Its lead moves the dial off the fixture
Low Stock - 2 available
Verified by Hydro Oasis
30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
DIGI-LUMEN 0 - 10 V Analog Dimmer
Technical Specifications
expand_more
Technical Specifications
- Control Type Manual dial, analogue
- Operation No app, firmware, pairing, timer or scheduling
- Cable Length 3 m (9.8 ft)
- Fixture Connection RJ12 plug into the fixture's dimming port
- Compatibility Digi-Lumen Extreme 400W, 720W and 1000W LED grow lights
- Power No separate connection of its own; the fixture is powered separately
