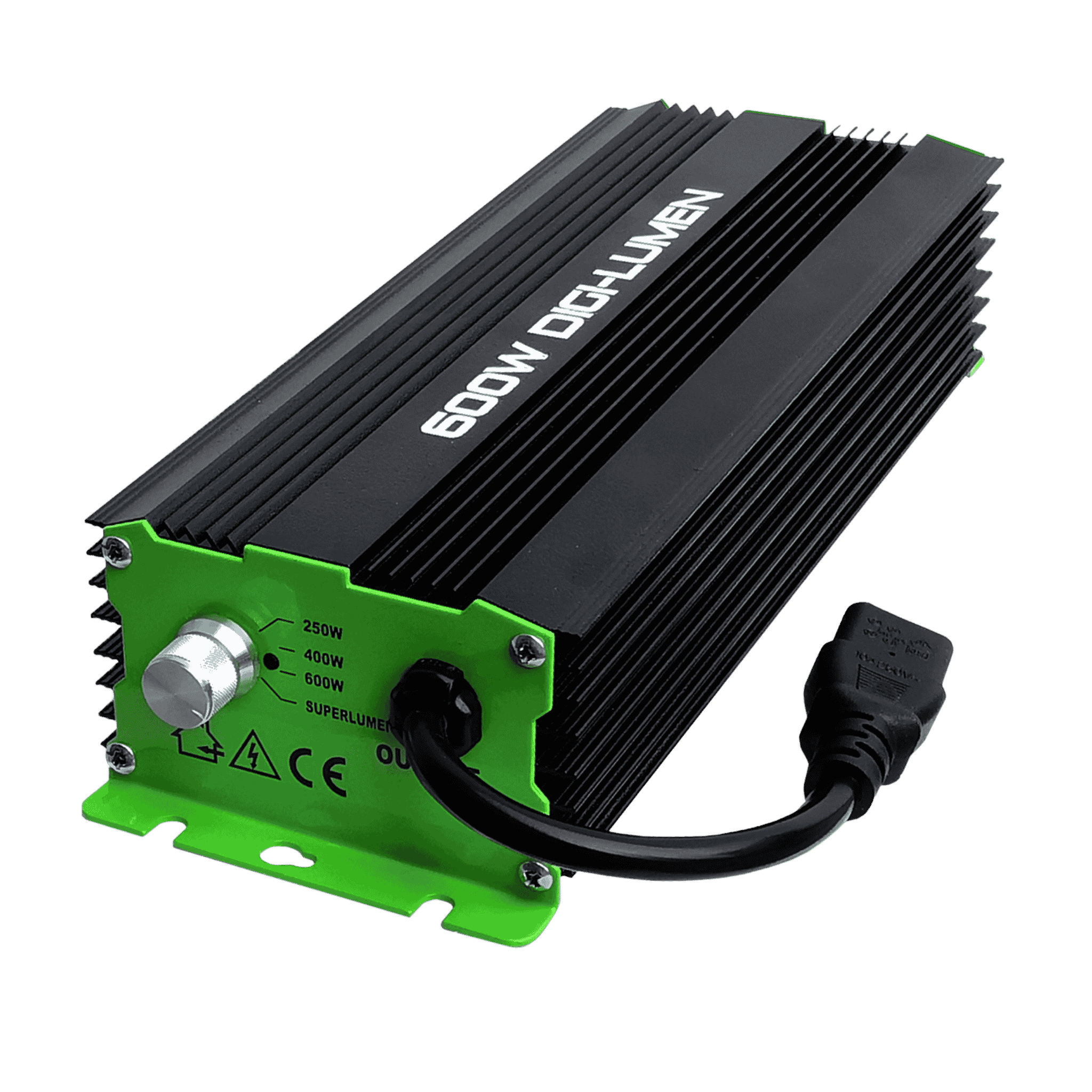

The DIGI-LUMEN Dimmable Electronic Ballast is a high-performance digital ballast engineered to power 600W single-ended HID grow lamps, including both High-Pressure Sodium (HPS) and Metal Halide (MH). With four precision-set output levels: 250W, 400W, 600W, and 690W (Super Lumens), this ballast gives growers complete lighting control across all stages of plant development.
Built with reliability and safety in mind, the unit features a soft-start function to protect lamps from sudden voltage spikes, along with thermal overload and short circuit protection. It operates silently and with high efficiency, thanks to its lightweight digital circuitry and passive cooling design. Ideal for use in tents, rooms, and commercial setups, the DIGI-LUMEN ballast offers dependable performance and flexible light management at the turn of a dial.
Four Power Settings
250 | 400 | 600 | 690 W
Silent Passive Cooling
No fans or hum
HID Lamp Versatility
HPS and MH compatible
Reliable, dimmable output for any 600W HID lamp, no noise, just results.
Install Ballast
Place the ballast on a dry, ventilated surface, never enclosed or covered.
Connect Light
Attach to a compatible 600W HID reflector setup using approved lamp leads.
Set Output

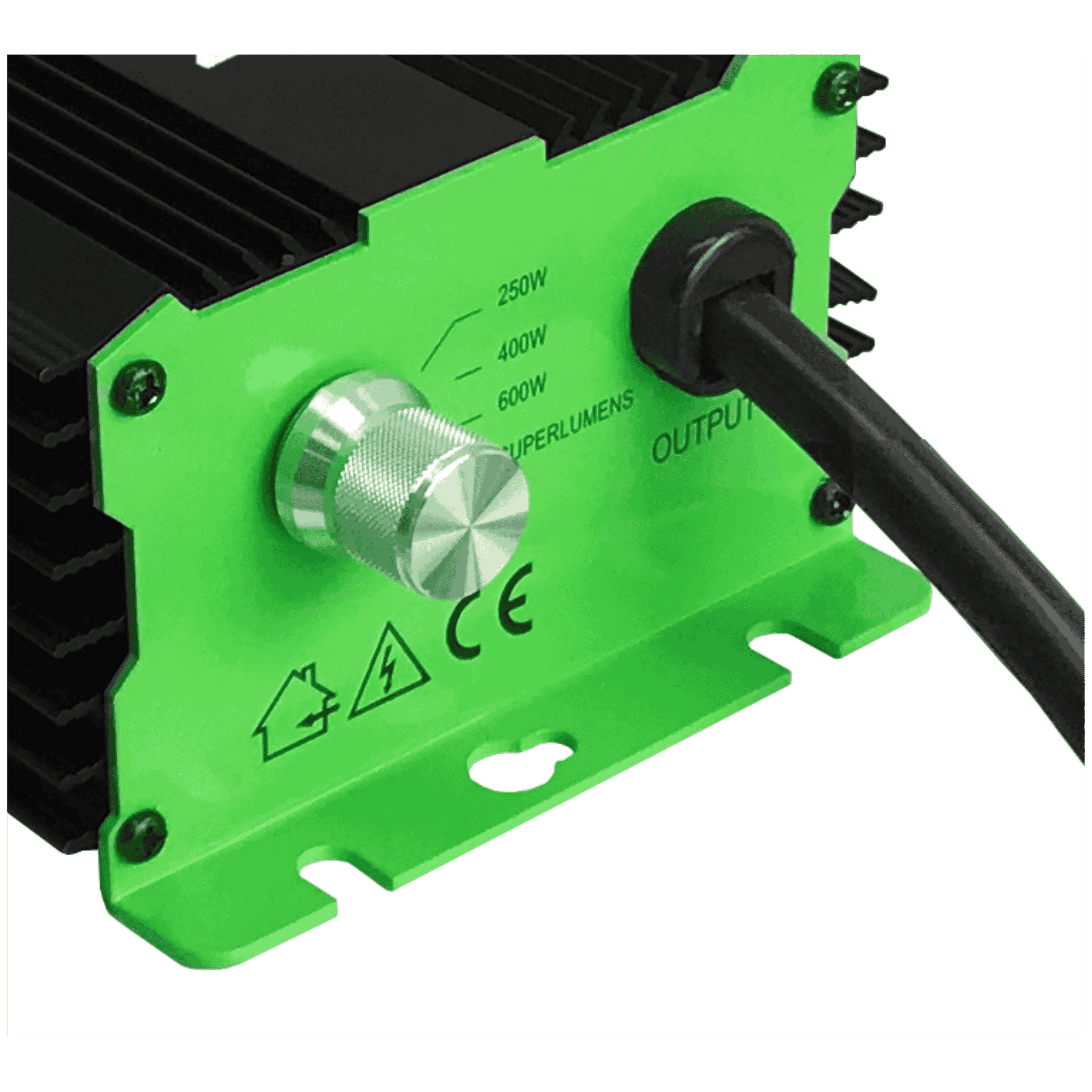

Use the built-in rotary dial to select 250W, 400W, 600W, or 690W (Super Lumens).
Connect Power
Plug into a 220–240V mains outlet. Use a timer for light cycle automation.
Maintain Environment
Ensure airflow is clear around ballast and check lamp cables and reflectors regularly.
Technical Specifications
expand_more
Wattage: 250W / 400W / 600W / 690W (Super Lumens)
Input Voltage: 220–240V AC
Frequency: 50–60Hz
Power Factor: >0.98
Output: High-frequency digital
Cooling: Passive heatsink
Dimensions: 295 × 112 × 60 mm (approx.)
Weight: Approx. 1.7 kg
Compatibility: 600W HPS & MH single-ended lamps
