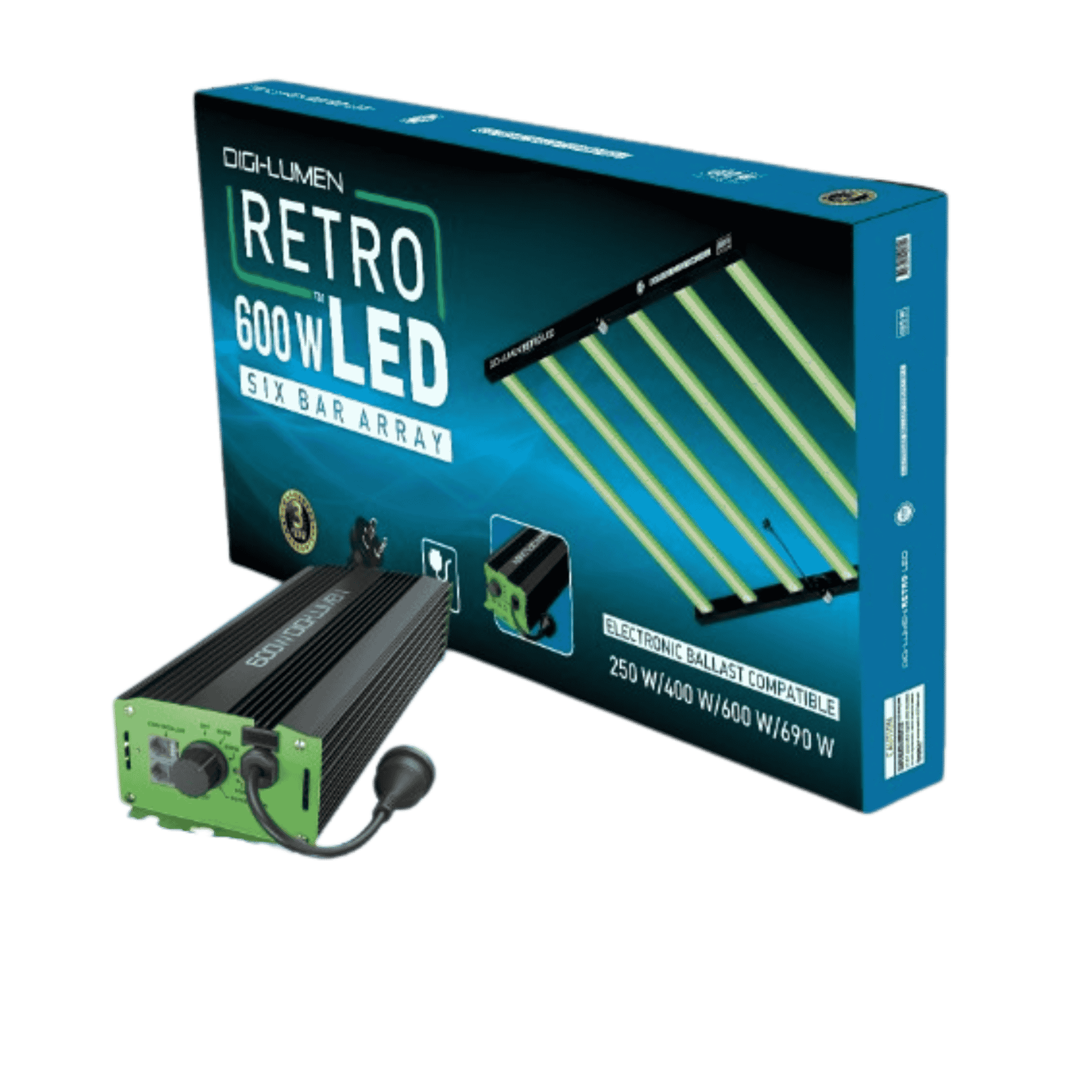

DIGI-LUMEN RETRO 600W LED Array + Ballast

• Includes 600W PWM Ballast + 600W RETRO LED
• Four dimmable output levels via ballast
• No need for LED controllers or rewiring
• Full-spectrum Samsung diode output
• Lightweight open-frame LED for easy mounting
• Passive cooling for silent operation
• Ideal for tents, propagation areas, and flowering zones

1. Assemble LED Array
   Unfold and mount the RETRO LED using the included hanging brackets or compatible systems.
2. Connect Ballast
   Plug the ballast into the LED array using the correct lead (sold separately) and secure all connections.
3. Set Output
   Use the ballast dial to choose between 250W, 400W, 600W, or 690W depending on your plant stage.
4. Connect Power
   Plug the ballast into a standard 220–240V supply. Use a timer or controller for automated schedules.
5. Maintain Environment
   Check airflow and ambient temperatures regularly. Clean LED surfaces as needed for optimal efficiency.

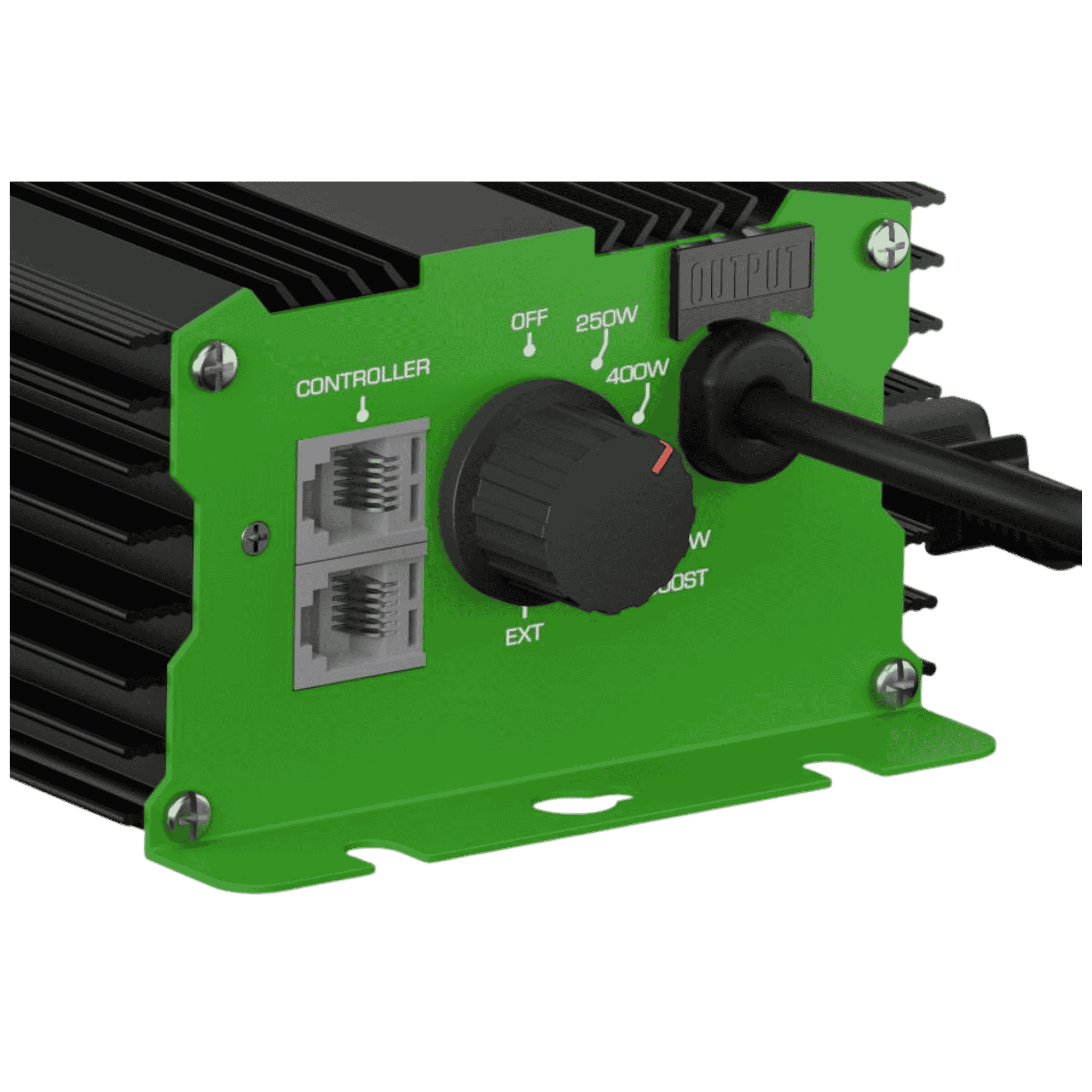

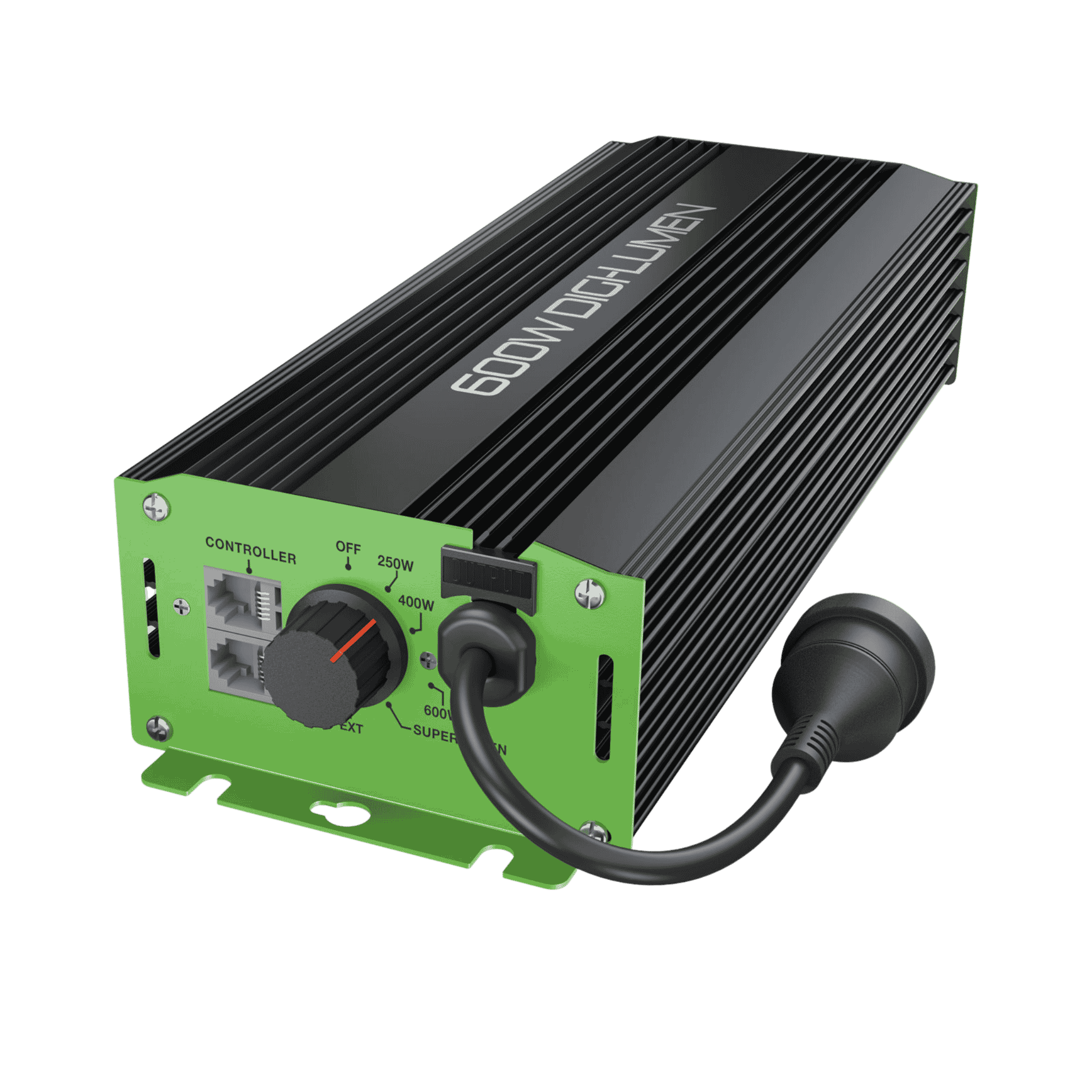

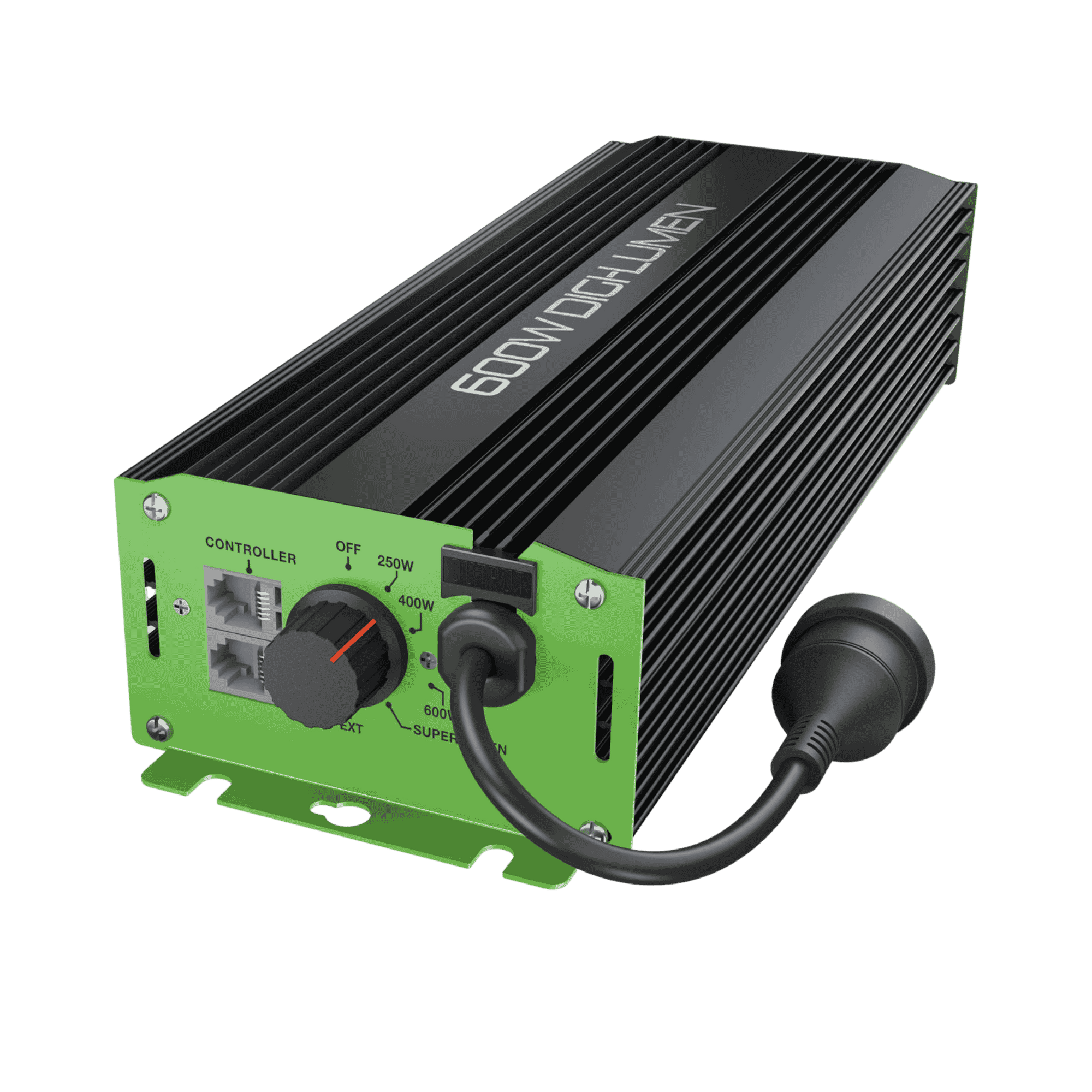

DIGI-LUMEN 600W Ballast + PWM

• Wattage: 250W / 400W / 600W / 690W (Super Lumens)
• Input Voltage: 220–240V AC
• Frequency: 50–60Hz
• Power Factor: >0.98
• Output Type: High-frequency PWM
• Cooling: Passive aluminium heatsink
• Weight: Approx. 1.7kg

DIGI-LUMEN 600W RETRO LED Array

• Maximum PPF @ 720 W: 1870 µmol/s
• PPF @ 690 W: 1820 µmol/s (Super Lumen setting)
• PPF Efficacy: 2.65 µmol/J
• Output PPFD: 1235 µmol/m²/s @ 30 cm
• Model: RETRO 600 W – 6 Bar
• Light Source: 1992 × Single Mount Diode LED
• Input Voltage: 220–240 V AC
• Frequency Range: 50–60 Hz
• Power/Watts: 720 W (max output)
• Amps: 2.9 A (on Super Lumen setting)
• Light Beam Angle: 120°
• Net Weight: 7.3 kg
• Body Case Material: Die-cast pressed aluminium
• IP Rating: IP45
• Dimensions: L 1500 mm × W 1067 mm × H 54 mm
• Maximum Coverage Area: 1500 mm
• Minimum Operating Temp: –25 °C
• Maximum Operating Temp: 40 °C
• Lifespan: >50,000 hours
• Warranty: 3 years
