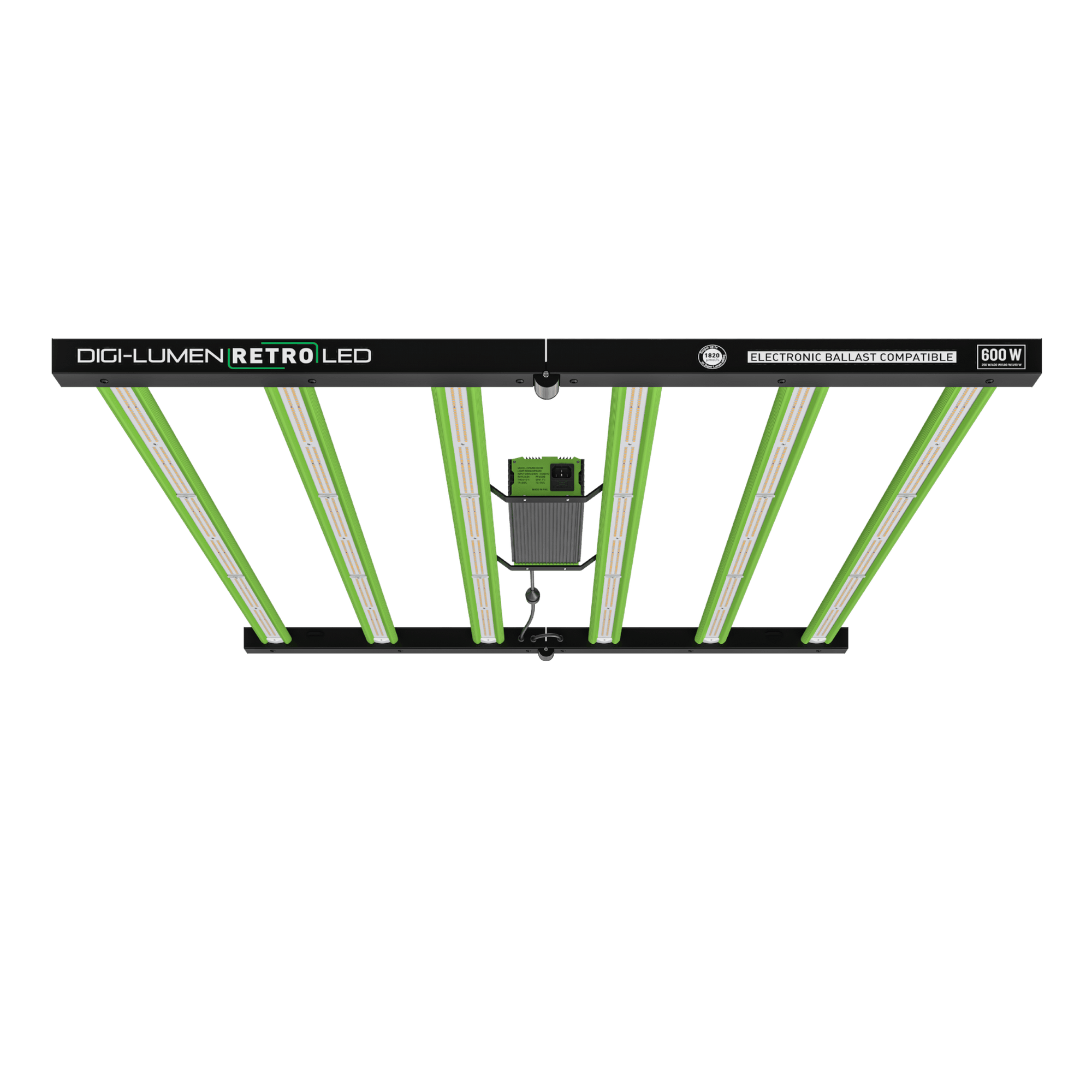

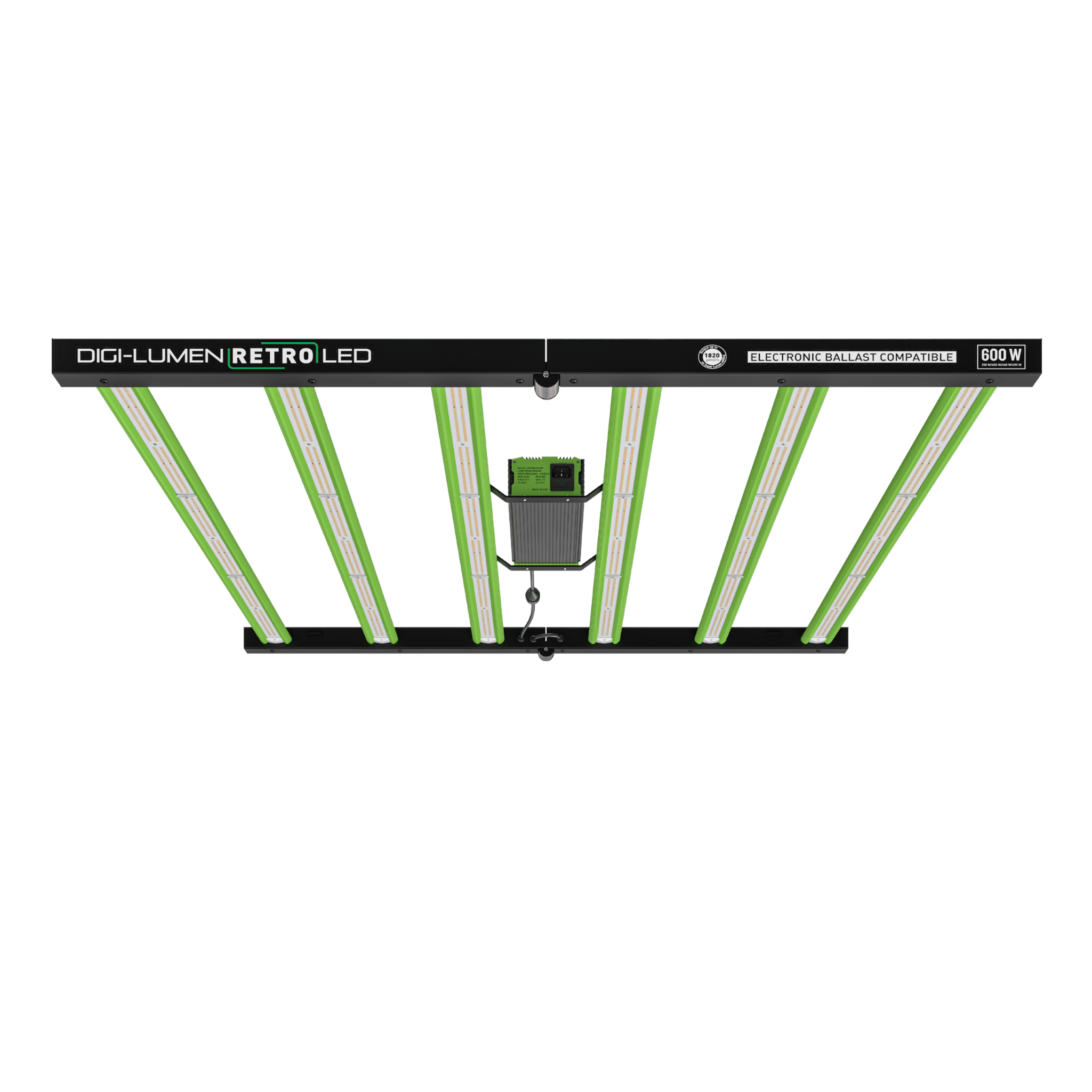

The Digi-Lumen Retro 600W LED Array offers a seamless transition from traditional HPS lighting to advanced LED technology. Designed to operate directly with any 600 W electronic ballast, this plug-and-play system delivers enhanced light output and spectrum for improved plant growth. Featuring a blend of Optimum White and Optimum Red diodes, the six-bar LED array provides uniform light distribution across a 1.5 m² area, suitable for various cultivation stages.

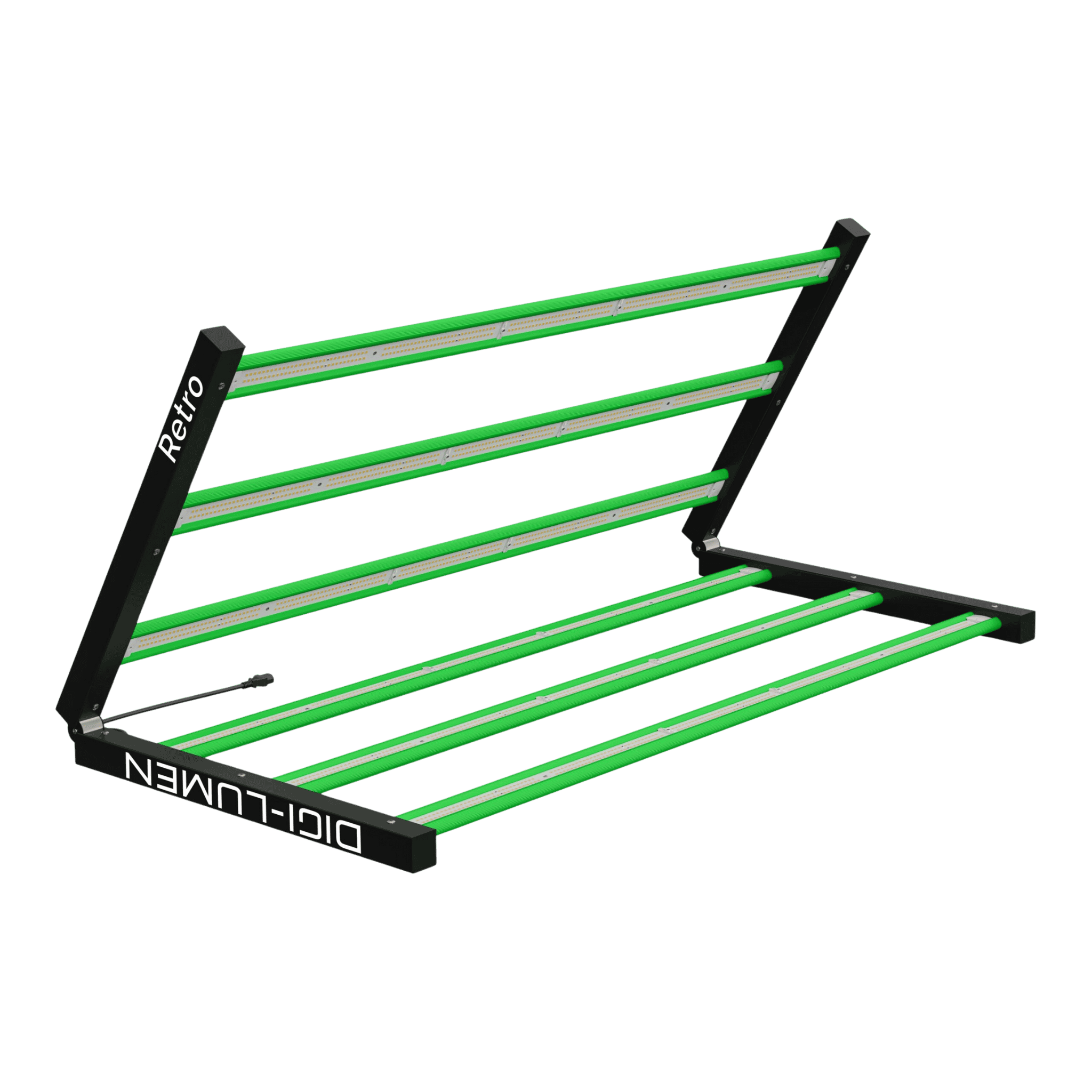

With a maximum output of 1820 µmol/s on the 690 W Super Lumen setting, the Digi-Lumen Retro LED Array increases light intensity by over 60% compared to standard 600 W HPS lamps. The improved PAR spectrum and higher Colour Rendering Index (CRI) of 80 enhance photosynthesis efficiency and plant morphology. Additionally, the foldable design ensures easy storage and transport, making it a practical choice for indoor growers.
Note: Compatible 600 W electronic ballast required for operation.
Efficient Lighting
2.7 µmol/J
Full Spectrum Output
From veg to bloom
IP45 Rated
Humidity safe
Upgrade to LED without replacing your ballast, just plug in, dim down, and grow on.
Sold out
package
Pickup currently unavailable at
Bulky Item — Free shipping is not offered with this item.
Dimmable to 250 W, 400 W, 600 W, and 690 W settings
Includes 5 m extension cord and mounting brackets
Directions for Use
expand_more
Unpack and Prepare
Carefully unpack the LED array and ensure all components are present. Place the unit on a flat, stable surface.
Mounting
Attach the provided mounting brackets to the LED array using the supplied screws. Use rope ratchets or appropriate hangers to suspend the fixture securely above the cultivation area.
Ballast Connection
Connect the LED array to a compatible 600 W electronic ballast using the included 5 m extension cord. Ensure the ballast is set to the desired power setting (250 W, 400 W, 600 W, or 690 W Super Lumen).
Operation
Power on the ballast to activate the LED array. Adjust the height of the fixture as needed to maintain optimal light intensity and coverage for your plants.
Maintenance
Periodically inspect the LED array and ballast connections for any signs of wear or damage. Clean the fixture surfaces with a dry cloth to remove dust and debris.
Technical Specifications
expand_more
Maximum PPF @ 720 W: 1870 µmol/s
PPF @ 690 W: 1820 µmol/s (Super Lumen setting)
PPF Efficacy: 2.65 µmol/J
Output PPFD: 1235 µmol/m²/s @ 30 cm
Model: RETRO 600 W – 6 Bar
Light Source: 1992 × Single Mount Diode LED
Input Voltage: 220–240 V AC
Frequency Range: 50–60 Hz
Power/Watts: 720 W (max output)
Amps: 2.9 A (on Super Lumen setting)
Light Beam Angle: 120°
Net Weight: 7.3 kg
Body Case Material: Die-cast pressed aluminium
IP Rating: IP45
Dimensions: L 1500 mm × W 1067 mm × H 54 mm
Maximum Coverage Area: 1500 mm
Minimum Operating Temp: –25 °C
Maximum Operating Temp: 40 °C
Lifespan: >50,000 hours
Warranty: 3 years
