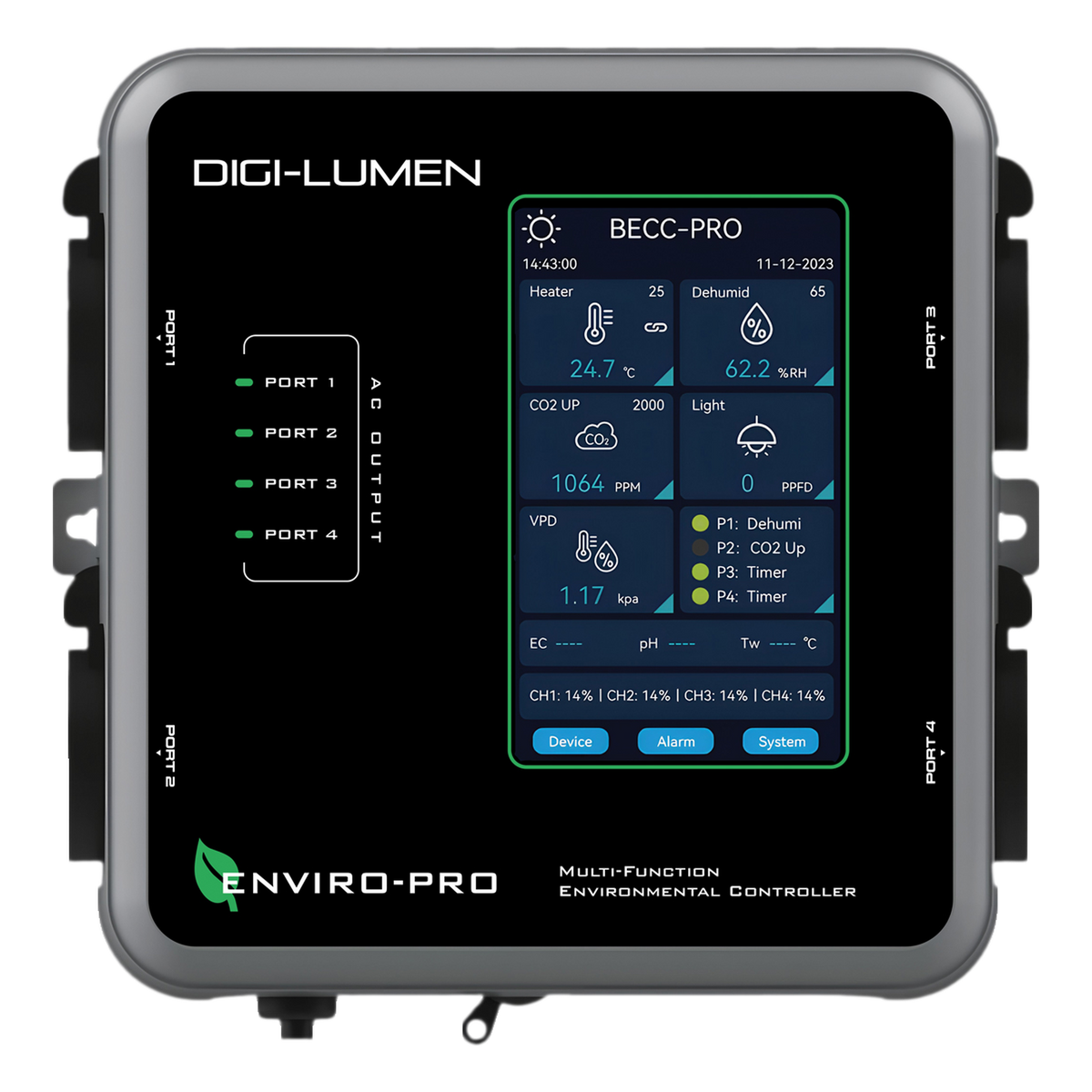

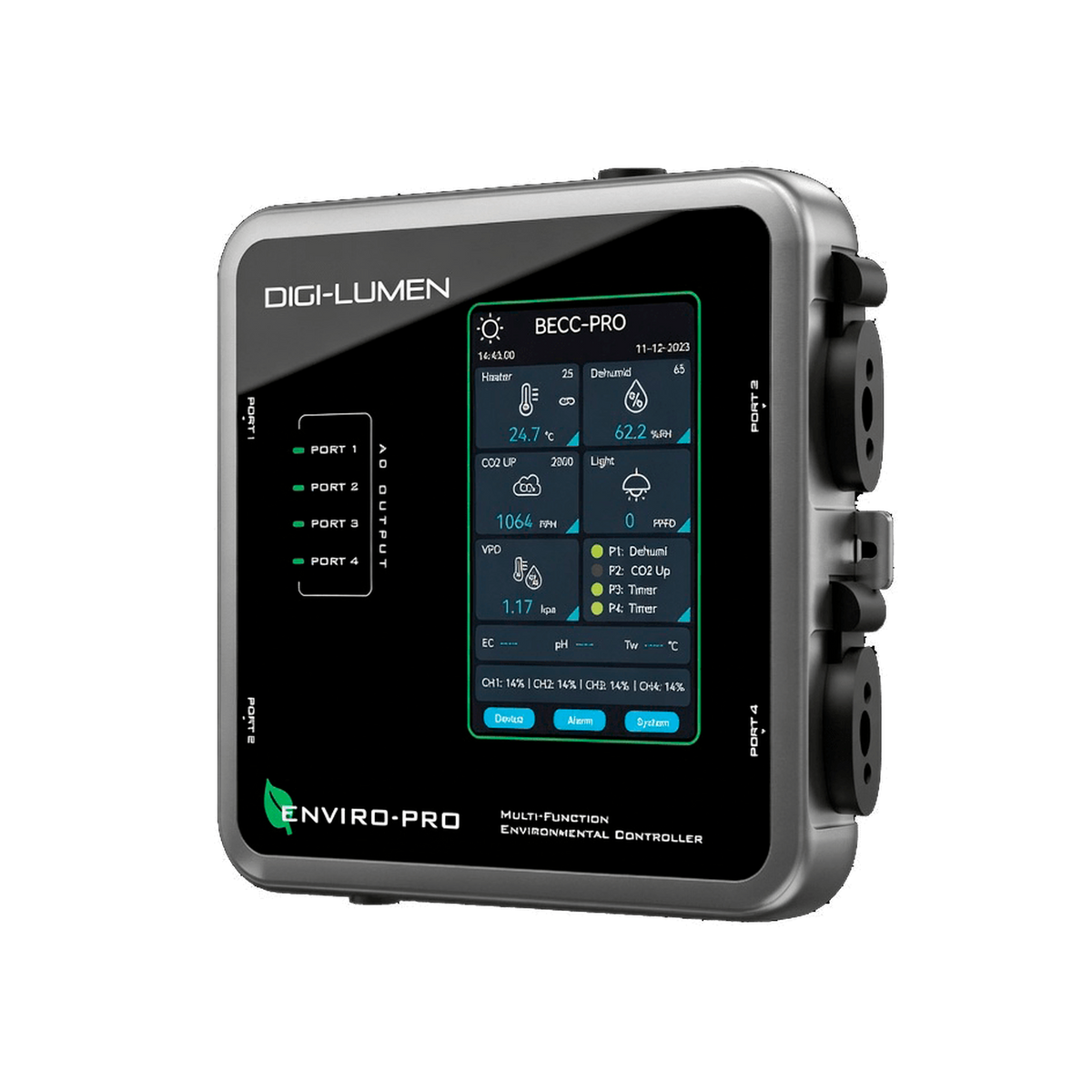

DIGI-LUMEN Enviro-Pro Controller
The DIGI-LUMEN Enviro-Pro Controller is an all-in-one environmental controller for indoor growing. It brings temperature, humidity, CO2, VPD, lighting and nutrient readings together on one touchscreen. Without it, a grow room might run a separate timer, thermostat, humidistat and CO2 controller, each unable to see what the others are doing. This controller reads the room through its included 4-in-1 sensor and decides which device should run, so heating, cooling, humidity control and CO2 enrichment all work toward the same targets.
The included BLS-4 sensor reads air temperature, relative humidity, CO2 and light through an integrated photocell. A remote cable connects it to the controller, so the sensor can sit out in the growing space while the controller is mounted on a wall or tent frame. With nutrient EC, pH and water temperature added, the controller tracks eight parameters in real time, and an optional ECPH module and PAR sensor add to what it can do. Its switched outlets run fans, heaters, humidifiers, dehumidifiers or CO2 regulators, and each outlet can be given its own job. Built-in locks pair cooling with dehumidifying and pair CO2 with each of them, so devices that would undo each other's work never run at the same time. The photocell tells the controller when the lights go out, and CO2 dosing stops in the dark so no gas is wasted overnight.
The controller can also run up to four lighting zones, each dimmed separately. It daisy-chains to compatible fixtures through RJ12 connectors using standard dimming signals. Lights can run manually, on an auto timer or on an auto cycle. They can also follow a day/night schedule with sunrise and sunset simulation, or dim automatically from PAR readings once the optional PAR sensor is connected. Temperature protection can dim the lights or shut them off automatically.
All setup is done on the controller's LCD touchscreen. Its built-in Ethernet port links to the Digi-Lumen mobile app when you scan a QR code, so the room can be checked and adjusted from anywhere. You can set custom alarms for temperature, humidity, CO2, water temperature and any sensor or device that goes offline, and past alarms can be reviewed on the controller itself. Remote access runs through that Ethernet port, so plan a network cable run to the grow space if you want to use the app. The controller is rated IP20 for indoor use only, so mount it where it stays dry and away from nutrient spray. Wall-mount hardware and a tent-frame U-bolt are included.
Temperature, humidity, CO2 and lights, all run from one controller!
Independent Lighting Zones
Dim each zone separately from one screen
Conflict-Free Climate
Keeps opposing devices from running against each other
Remote App Control
Check and adjust the room from your phone
Sold out
Verified by Hydro Oasis
30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
DIGI-LUMEN Enviro-Pro Controller
Key Highlights
expand_more
Key Highlights
- Eight growing parameters monitored in real time, including VPD
- Up to four lighting zones dimmed independently
- Every outlet assignable to timer, heating, cooling, humidification, dehumidification, CO2 up or CO2 down
- Fuzzy logic CO2 mode for ultra-stable PPM levels
- Day/night scheduling with sunrise and sunset simulation
- Light temperature protection with automatic dimming or shutdown
- QR code pairing with the Digi-Lumen mobile app over Ethernet
- 4-in-1 sensor, tent-frame U-bolt and wall-mount hardware included
Directions for Use
expand_more
Directions for Use
Safety
The controller is rated IP20 for indoor use only. Keep it and its connections dry, and away from water and nutrient spray.
It switches mains power to fans, heaters, humidifiers, dehumidifiers and CO2 regulators. Keep each connected load within the controller's per-port rating, and follow each device's own safety instructions.
Technical Specifications
expand_more
Technical Specifications
- Monitored Parameters Air temperature, humidity, CO2, VPD, nutrient EC, pH, water temperature and light intensity
- Switched Outlets 4, each assignable to Timer, Heating, Cooling, Humidification, Dehumidification, CO2 UP or CO2 DOWN
- Lighting Control 4 independent zones; Manual, Auto Timer, Auto Cycle and PAR-based automatic dimming (with optional PAR sensor)
- Light Control Output 4 channels, 30 mA per channel
- Smart Locks Cooling & Dehumidify, CO2 & Cooling, CO2 & Dehumidify
- Max Input Current 10 A
- Max Output Current 8 A per port
- Input Voltage AC 100-240 V
- Frequency 50/60 Hz
- Sensor (BLS-4) Temperature, relative humidity, CO2 and light (integrated photocell)
- Sensor Temperature Range 5-50 °C (41-122 °F), typical
- Sensor Humidity Range 5-95% RH, plus or minus 3%, typical
- Operating Temperature (Controller) 0-50 °C (32-122 °F)
- Protection Level IP20 (indoor use)
- Display 125 mm (5 in) LCD touchscreen, 800 x 480 resolution
- Sensor Cable Length 4.5 m (14.8 ft), typical
- Network Port RJ45 Ethernet, DHCP or manual IP
- Sensor Port RJ12, RS485
- Communication Protocol RS485, 9600 baud, 8N1
- Expansion Optional PAR sensor and ECPH module
- Included Enviro-Pro Controller; 4-in-1 Sensor (BLS-4) with cable; 5 m (16.4 ft) RJ12 cable and splitter; mounting kit (wall screws and U-bolt for tent frames)
