DIGI-LUMEN Extreme LED
The DIGI-LUMEN Extreme LED is a full-spectrum bar light for indoor growers who would rather judge a fixture by the photons it puts over the canopy than by the size of its housing. Every model in the range reaches 3.0 umol/J, and every model carries its driver inside the fixture rather than in a box on the wall, which is the difference between hanging a light and installing a system around it. It is a decision that shows up in how an Extreme goes up and in how tidy a room stays once several of them are hanging.
A bar-style fixture spreads its diodes along the full width of the frame rather than clustering them behind one lens, which is what allows a light of this output to sit closer to the crop with an even spread underneath it. The Extreme models are built on that layout, with bar count and frame footprint stepping up together through the range, and the larger fixtures fold on a bi-fold frame for transport before opening out once they are hung. Heat sinking is aluminium, carried either on an iron frame or formed as a die-cast pressed housing, and the driver working inside that housing is a high-frequency design.
The four Extreme models, 400 W, 720 W, 1000 W and 1000 W XL, are one light built in four sizes: each uses the same bar-style layout with its driver inside the fixture, and the frame and photon output grow from the smallest model to the largest. That output is quoted as photosynthetic photon flux at the source, which is the figure worth comparing from one size to the next. Keep the diode face and the heat sinking clear of dust so each fixture sheds heat the way it was designed to.
NOTE: This is a high-output horticultural fixture. Do not look directly into the diodes while it is running, and wear eye protection when working underneath the light.
Full-spectrum output at 3.0 umol/J across every model in the range!
Driver Built In
Nothing separate to mount on the wall
Even Canopy Light
No hot centre, no dim corners
Two-Year Warranty
Cover on every model in the range
Low Stock - 4 available
Verified by Hydro Oasis
30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
DIGI-LUMEN Extreme LED
Key Highlights
expand_more
Key Highlights
- PAR-optimised diodes on every model in the range
- Onboard high-frequency driver, with no external ballast cable and no signal hub
- Four models, each with its own coverage area and photon output
- Full-spectrum coverage built for high-intensity flowering crops
- Two-year DIGI-LUMEN warranty, covering the whole horticultural lighting range
Directions for Use
expand_more
Directions for Use
Application
- Set the hanging height by light level rather than a fixed distance. Check the reading at the top of the canopy with a quantum PAR meter such as the Treegers Quantum PAR Meter, and raise or lower the fixture until the reading suits the plants' stage of growth.
- On models with a dimmer, start at the lowest setting and raise the intensity gradually as the plants grow, checking the reading again after each change.
Safety
Do not look directly into the diodes while the fixture is running, and wear eye protection when working underneath it.
Handle the fixture by its frame when unfolding, hanging or moving it, and keep its connections dry.
Technical Specifications
expand_more
Technical Specifications
- Driver Integrated, inside the fixture
- Efficacy 3.0 umol/J
- Warranty 2 Years

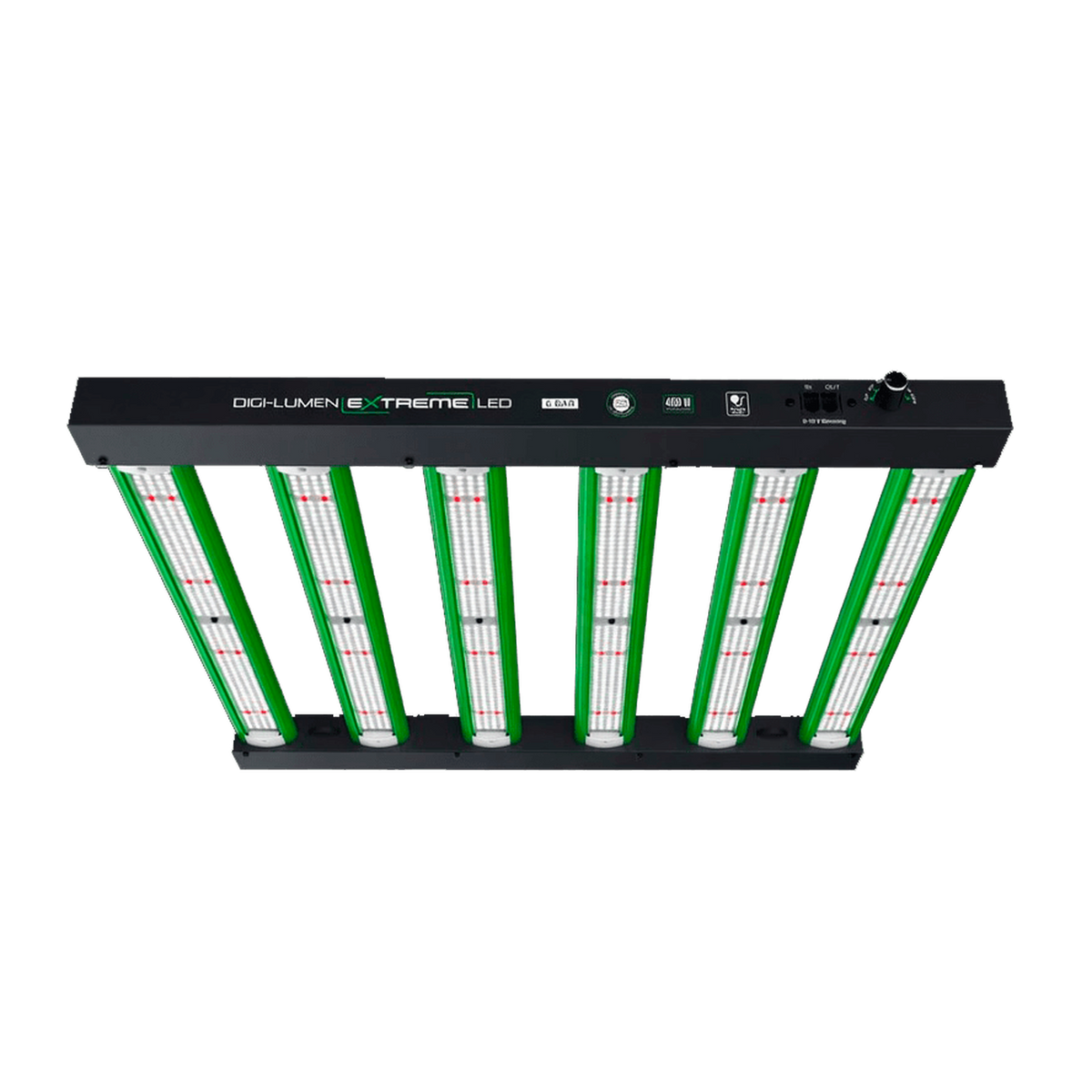

400 W
- Design 6-bar
- Light source 1128 x single mount LED: 1080 white 4000 K + 48 red 660 nm
- PPF 1200 umol/s
- Output PPFD at 30 cm (11.8 in) 1761 umol/m2/s
- Coverage area (full spectrum) 1.0 m2 (10.8 sq ft), 1.0 m x 1.0 m (3.3 ft x 3.3 ft)
- Light beam angle 120 degrees
- Dimming Manual dimming control
- Lifespan More than 50,000 hours
- Operating temperature -25 C to 40 C (-13 F to 104 F)
- IP rating IP45 (water resistant)
- Body case material Iron frame with aluminium heat sink
- Size 590 mm x 578 mm x 38 mm (23.2 in x 22.8 in x 1.5 in)
- Net weight 3.85 kg (8.5 lb)

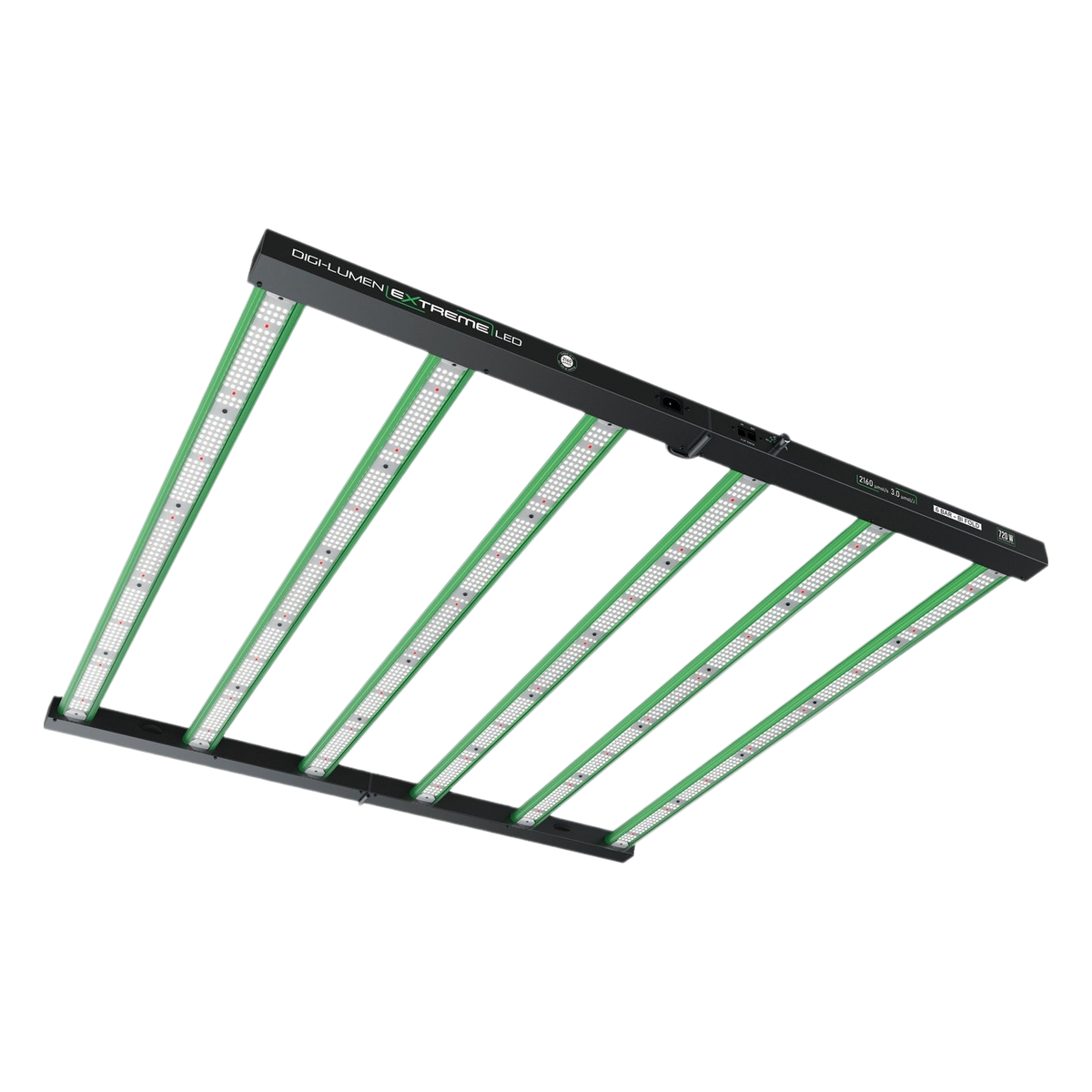

720 W
- Light source 1974 x single mount LED
- PPF 2160 umol/s
- Output PPFD at 30 cm (11.8 in) 1221 umol/m2/s
- Coverage area (full spectrum) 2.25 m2 (24.2 sq ft), 1.5 m x 1.5 m (4.9 ft x 4.9 ft)
- Light beam angle 120 degrees
- Lifespan More than 50,000 hours
- Operating temperature -25 C to 40 C (-13 F to 104 F)
- IP rating IP45 (water resistant)
- Body case material Die cast pressed aluminium
- Size 1120 mm x 1060 mm x 38 mm (44.1 in x 41.7 in x 1.5 in)
- Net weight 6.95 kg (15.3 lb)

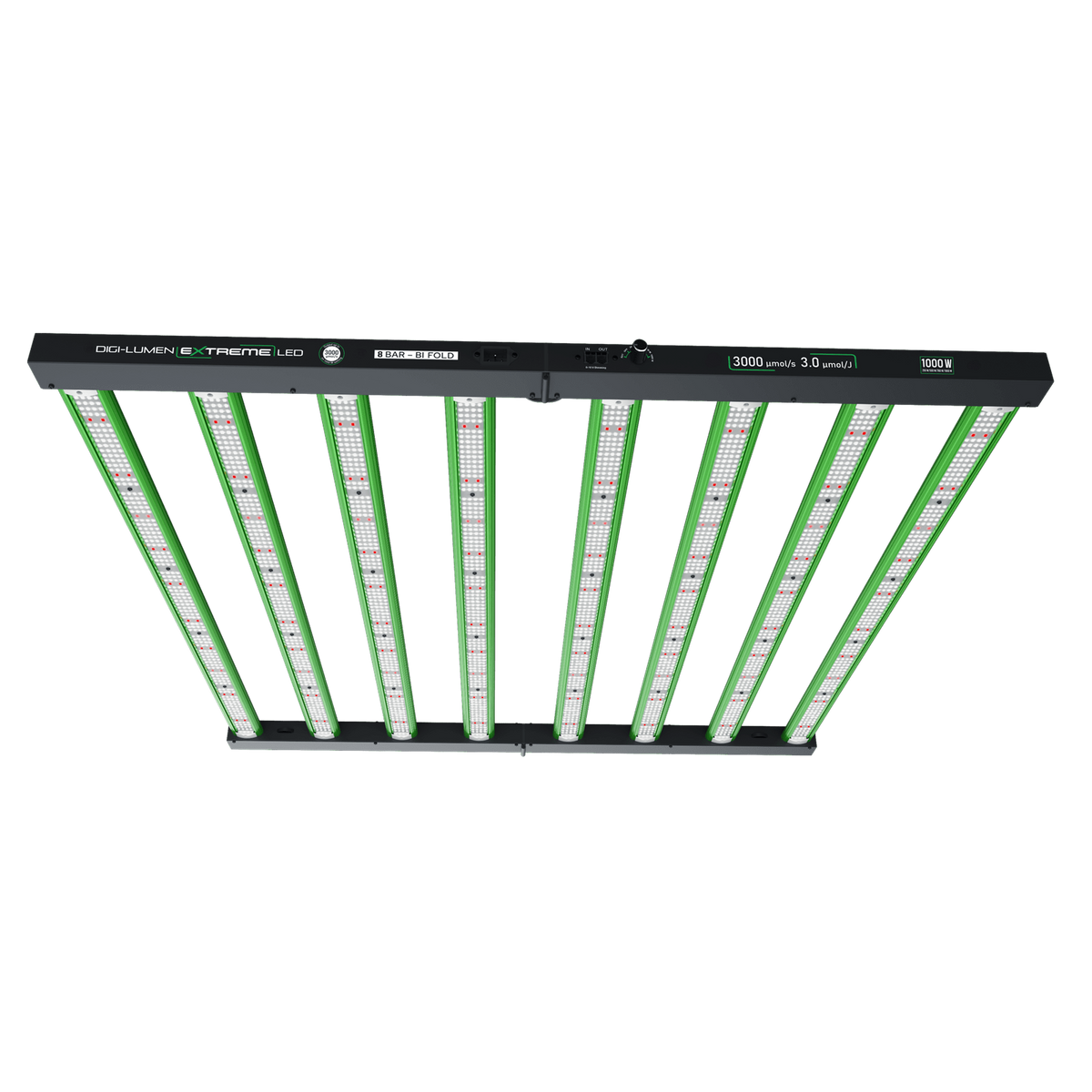

1000 W
- Design 8-bar bi-fold
- PPF 3000 umol/s
- Coverage area (full spectrum) 3.24 m2 (34.9 sq ft), 1.8 m x 1.8 m (5.9 ft x 5.9 ft)
- Dimming Manual dimming control
- Size 1110 mm x 1065 mm (43.7 in x 41.9 in)

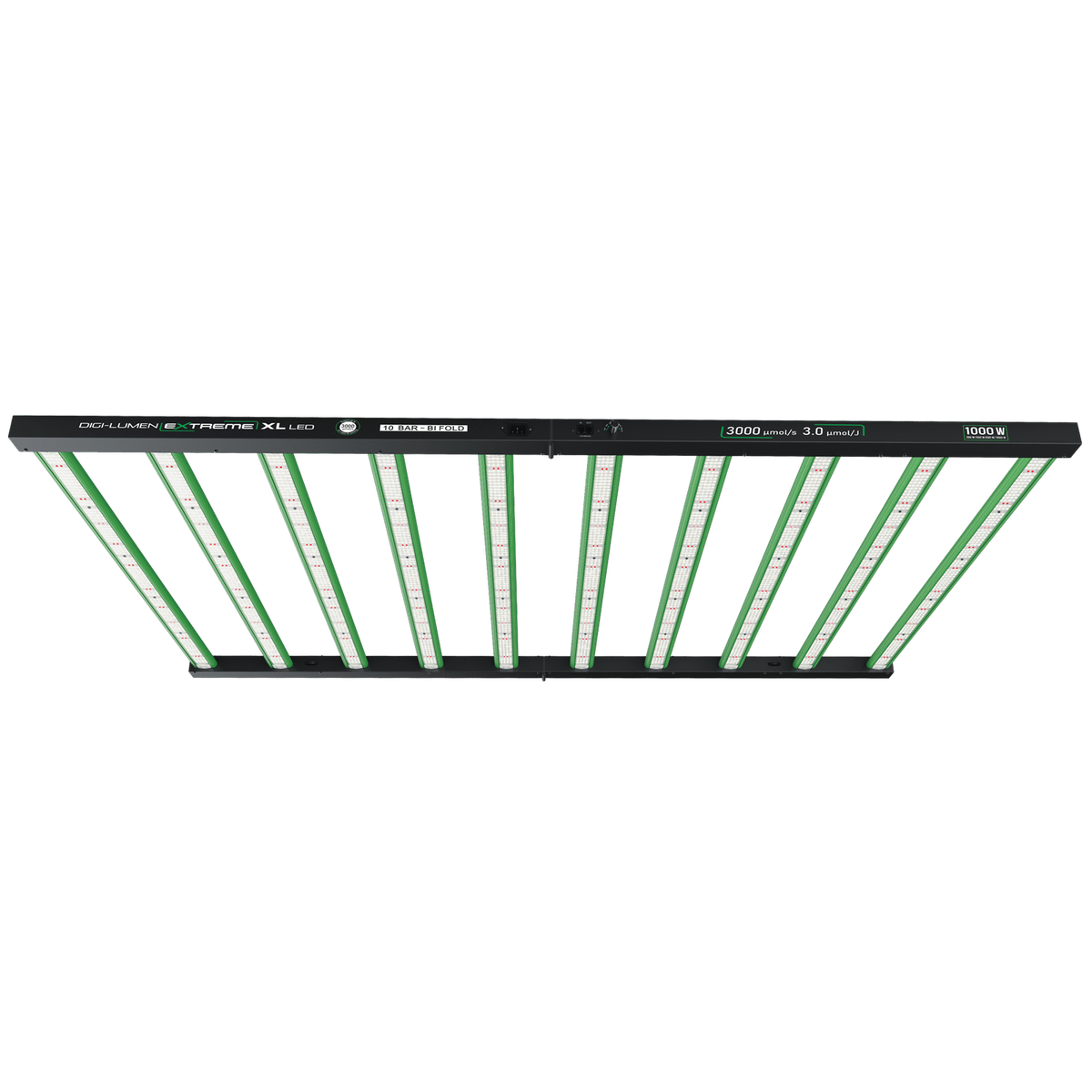

1000 W XL
- Design 10-bar bi-fold
- Light source 3400 x single mount LED: 3200 white 4000 K + 200 red 660 nm
- PPF 3000 umol/s
- Output PPFD at 30 cm (11.8 in) 1384 umol/m2/s
- Light beam angle 120 degrees
- Dimming Manual dimming control
- Lifespan More than 50,000 hours
- Operating temperature -25 C to 40 C (-13 F to 104 F)
- IP rating IP45 (water resistant)
- Body case material Iron frame with aluminium heat sink
- Size 1640 mm x 1120 mm x 38 mm (64.6 in x 44.1 in x 1.5 in)
- Net weight 10.65 kg (23.5 lb)
