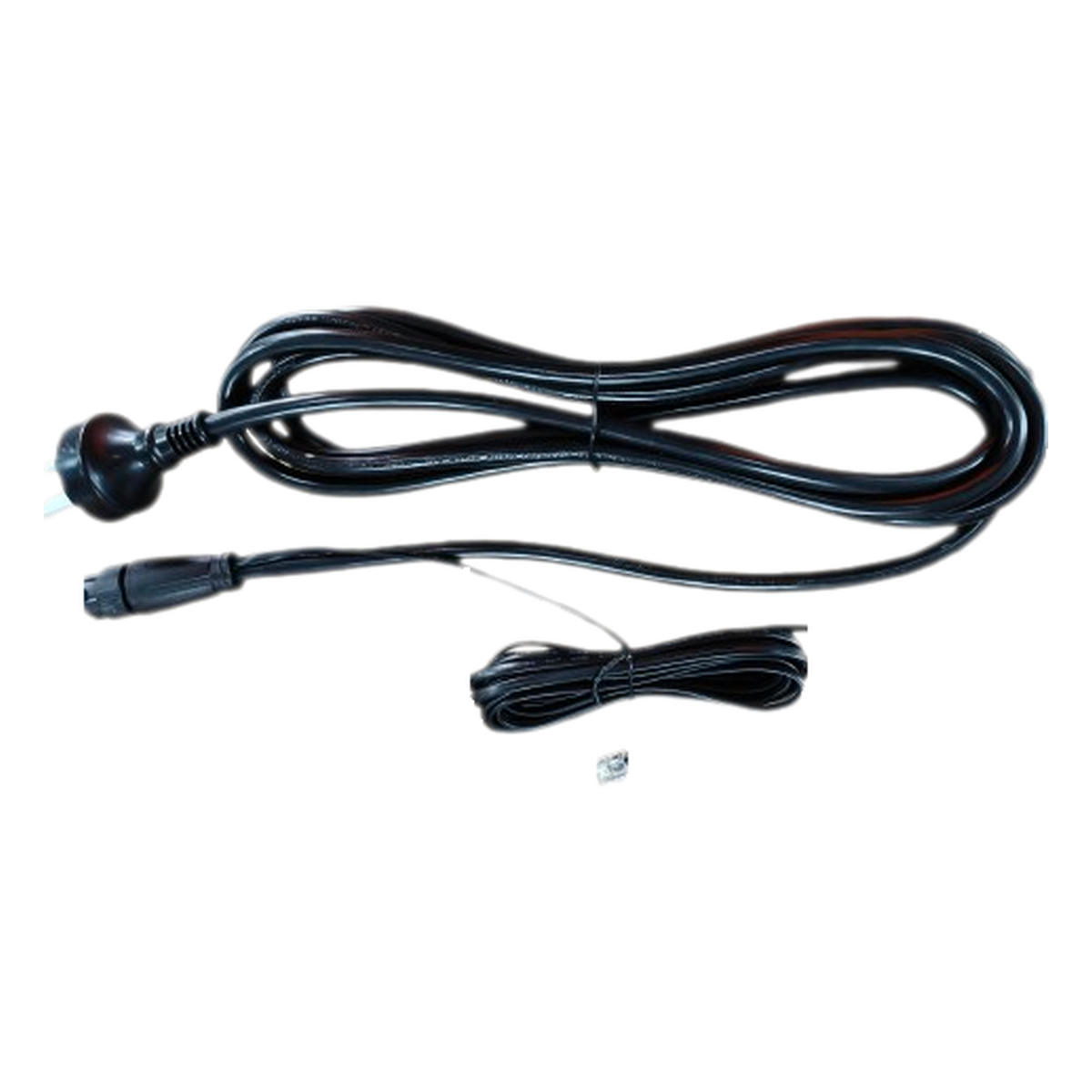

The DIGI-LUMEN Extreme UCL Power Cable is the supply lead for the Digi-Lumen Extreme 200 W Under Canopy LED, a bar that ships without a power cord of its own. Digi-Lumen supply the cord as a separate accessory, and this one does two jobs at once: it carries mains power to the bar and runs a 0-10V dimming control lead alongside it, so the light can be dimmed from a controller rather than only switched on and off.
At the fixture end, an RJ-type connector plugs directly into the bar's power input port, with no adaptors or modifications needed. The cable itself is 3 m (9.8 ft) long. Where bars are daisy-chained in a row, only one power cable is needed per run. The remaining bars in the row connect to each other with a separate 1000 mm (39.4 in) jumper cable, which passes both power and the 0-10V control signal along the chain.
This cable is made for the Extreme 200 W Under Canopy LED only, and it is not compatible with other Digi-Lumen lines such as the Halo series. When planning a row, allow one power cable for each run, then jumper cables to link the rest of the bars in that row.
Power and dimming for the Extreme 200 W Under Canopy LED in one cord!
Dimming Signals Included
Dim the bar from a compatible controller
Direct Plug Fit
Plugs straight into the bar, no adaptors
One Cord Per Row
Jumper cables carry power along the chain
Low Stock - 2 available
Back-OrderCurrently out of stock: back-order now to reserve yours from the next shipment.Estimated dispatch around 21 October.
Switch off and unplug at the wall before connecting or disconnecting the cable at the light.
Check the cable and connectors for damage before each installation, and do not use a damaged cable.
Technical Specifications
expand_more
Compatibility Digi-Lumen Extreme 200 W Under Canopy LED only; not compatible with the Halo series
Dimming Control 0-10V control lead run alongside the mains supply
Cable Length 3 m (9.8 ft)
Fixture Connector RJ-type, plugs directly into the bar's power input port
