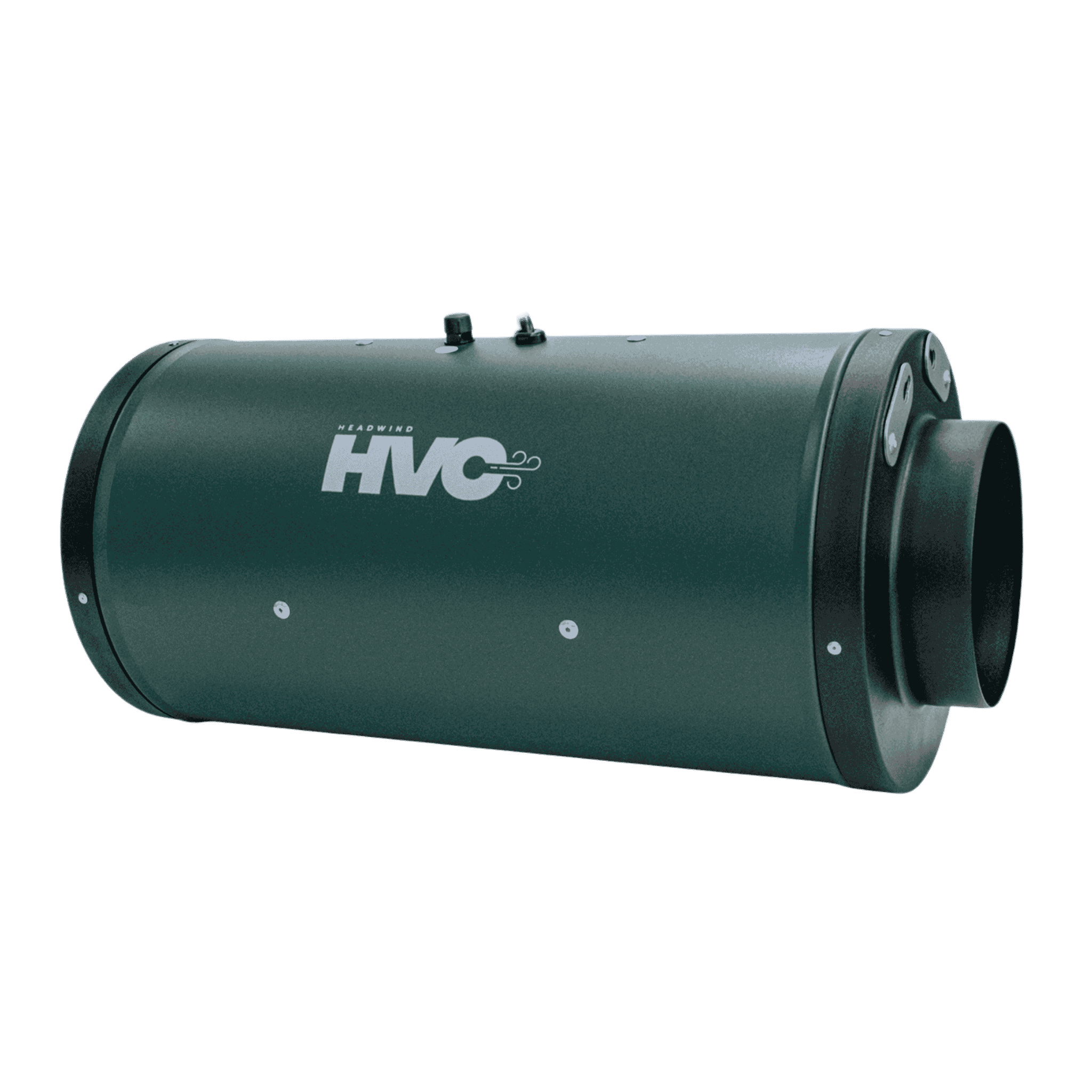

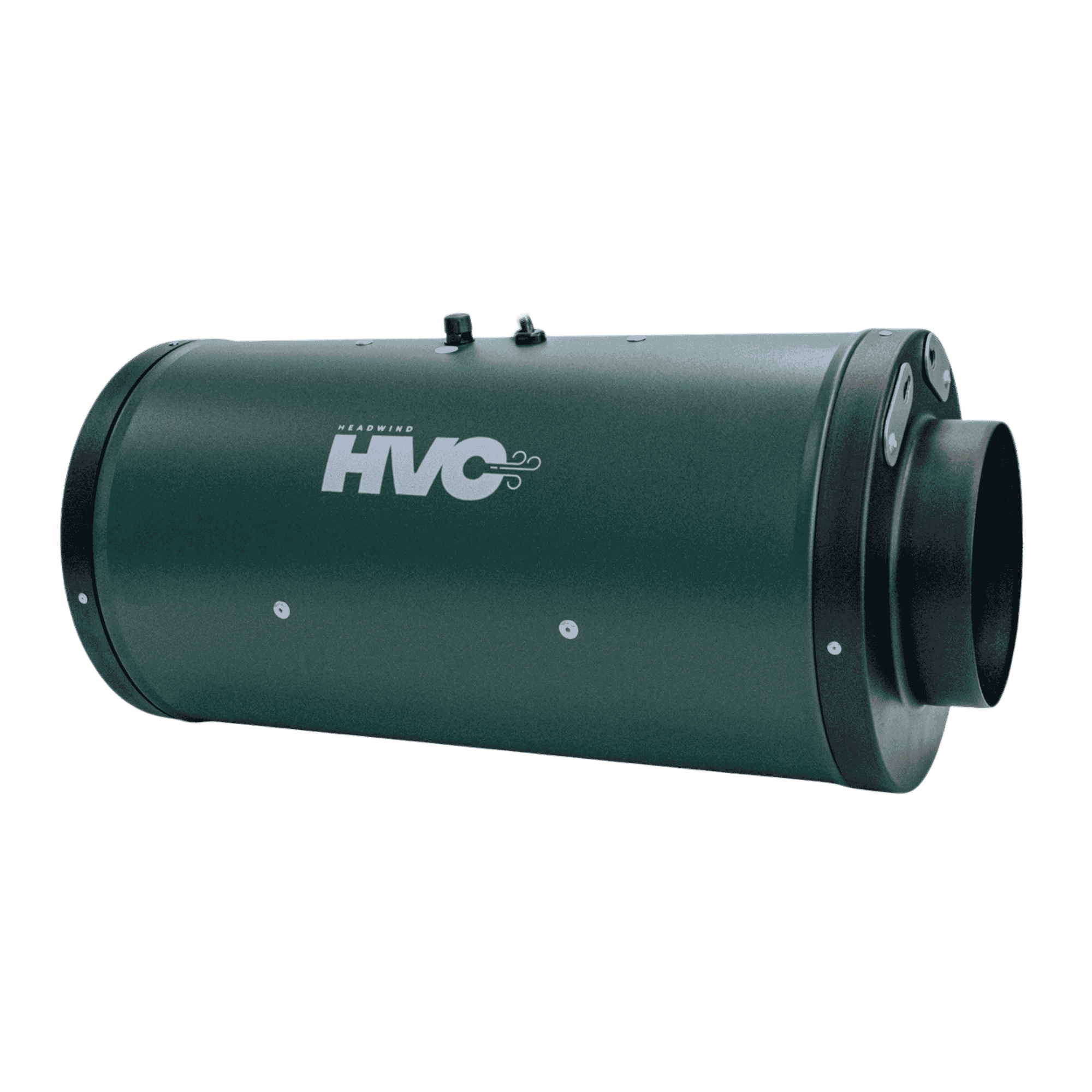

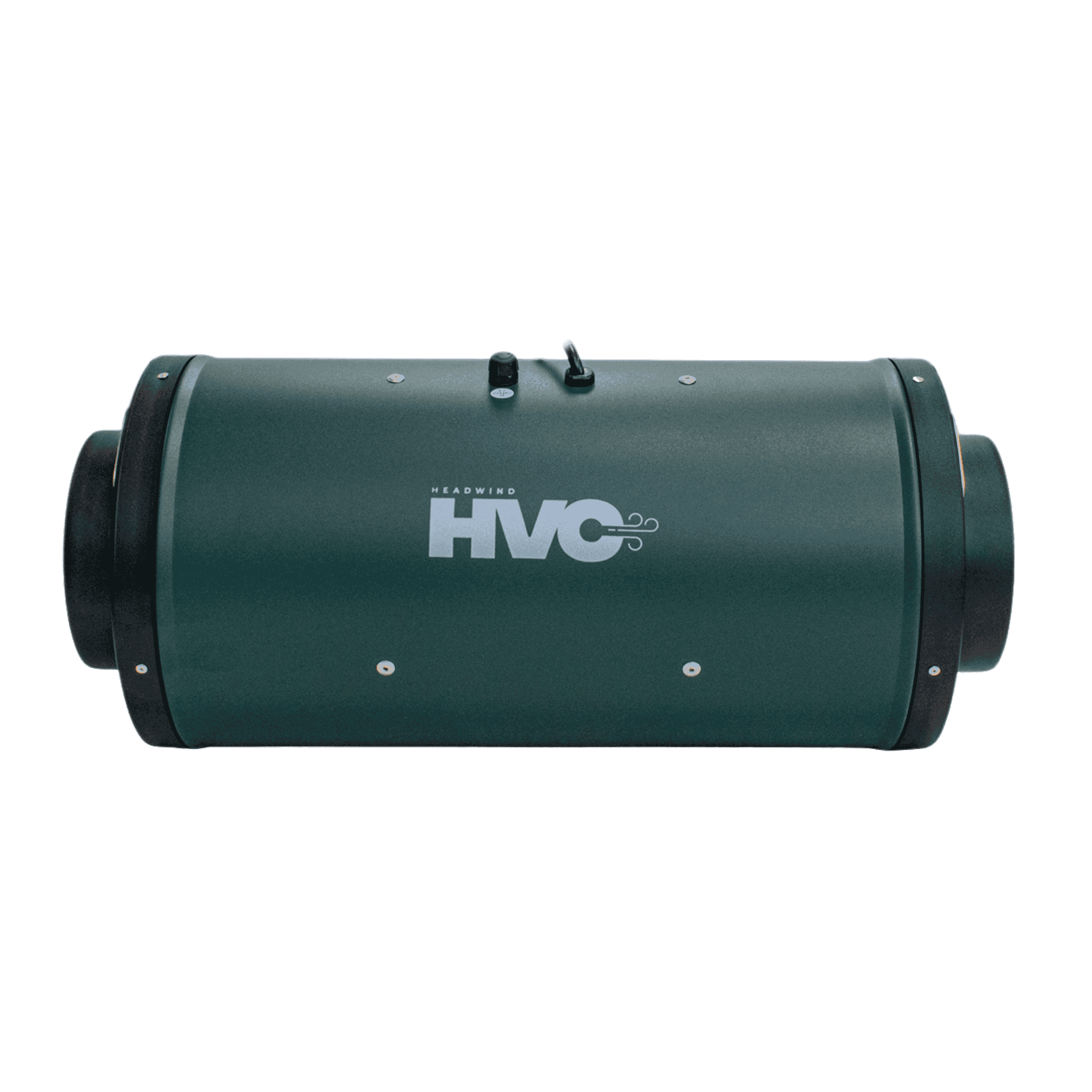

The HVC Silenced Mixed Flow Fan is a mixed-flow inline unit built into an acoustically insulated canister to reduce operating noise while maintaining strong airflow and static pressure for ducted runs. Its EC (electronically commutated) motor delivers efficient torque and smooth control at low RPM, letting you dial in ventilation precisely without the surging typical of basic AC fans.
Inside the housing, the mixed-flow impeller balances axial volume with centrifugal pressure, helping the fan maintain flow through carbon filters, bends and longer lengths of ducting. The canister’s internal acoustic lining dampens motor and airflow noise at the source for a quieter installation.
Each fan ships with a matched EC speed controller, so you can set and hold the exact airflow needed across propagation, vegetative and bloom stages. Standard inlet/outlet collars integrate directly with ducting and accessories, and the supplied mounting tabs or bracket make hanging or fixed installs straightforward.
The silenced range is available in 150 mm, 200 mm, 250 mm and 315 mm, covering small tents through to larger rooms. When paired with a correctly sized carbon filter, the system provides discreet, controllable extraction with equipment-focused reliability.
Noise-Dampened Housing
Acoustic canister and lining reduce perceived operating noise versus standard inline fans.
Whisper‑Quiet Operation
Engineered insulation and mixed-flow design ensure minimal noise without sacrificing power.
Mixed‑Flow, High Pressure
The mixed‑flow impeller maintains airflow against carbon filters, bends, and longer duct runs.
Acoustically lined EC canister for quiet, high‑pressure ducted extraction.
Uses a mixed-flow impeller to balance airflow volume with higher static pressure for filters and long duct runs.
Features an acoustically lined canister that dampens motor and airflow noise for quieter operation.
Ships with a matched EC speed controller for precise, low-ripple speed adjustment.
Available diameters: 150 mm, 200 mm, 250 mm, 315 mm to suit tents and larger rooms.
Designed for intake or exhaust duty and integrates directly with carbon filters when airflows are correctly matched.
Includes mounting tabs/bracket for fast hanging or fixed installation with vibration isolation.
Optimised for hydroponic and horticultural environments with continuous-duty reliability.
Ideal where reduced noise is preferred without sacrificing ducted performance.
Backed by retailer-supplied 12 month warranty for peace of mind.
Directions for Use
expand_more
Setup & Installation
Secure the fan using the provided bracket or hanging tabs. Install inline within ducting, placing intake and exhaust fans strategically hang fans high for exhaust and near base for intake to optimise air circulation.
Power & Control
Connect the integrated speed controller. Adjust airflow to suit each growth stage: lower speeds for propagation, moderate for veg, higher for bloom. Ensure the fan’s power rating aligns with your electrical supply.
Operational Recommendations
Maintain optimal airflow by setting fan speed to balance temperature, humidity, and CO₂. Avoid restricting airflow by matching duct size and minimizing bends.
Maintenance Guidance Inspect airflow and noise levels monthly. Clean external casing as needed; there are no internal parts requiring regular cleaning.
When not in use, store the fan in a cool, dry place away from direct sunlight and moisture, ensuring the controller is disconnected and components are sealed securely.
Technical Specifications
expand_more

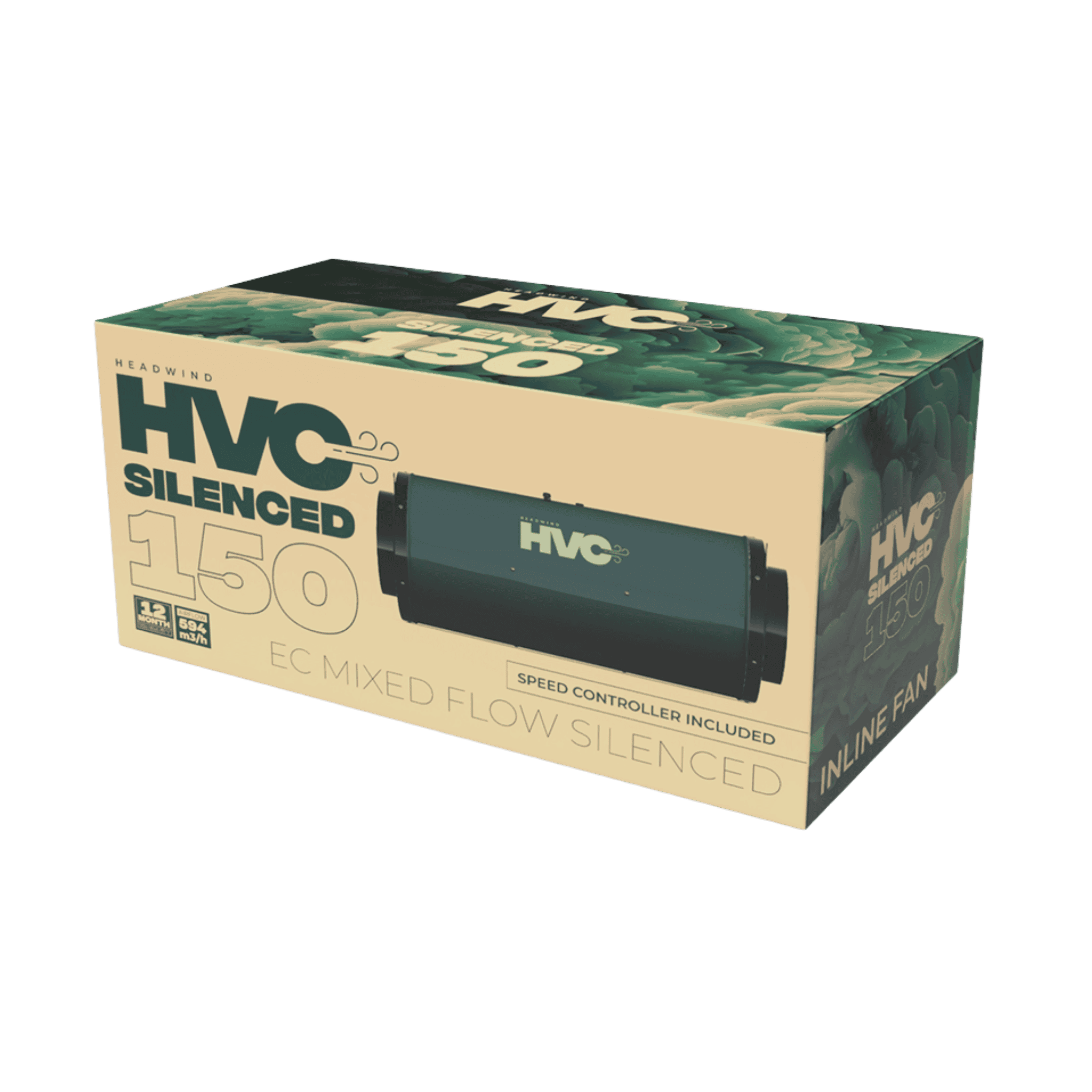

HVC Silenced Mixed Flow EC Fan 150 mm
Flange Size: 150 mm (6")
Flow Rate: 594 m³/h
Wattage: 40 Watts
dBA: Coming Soon

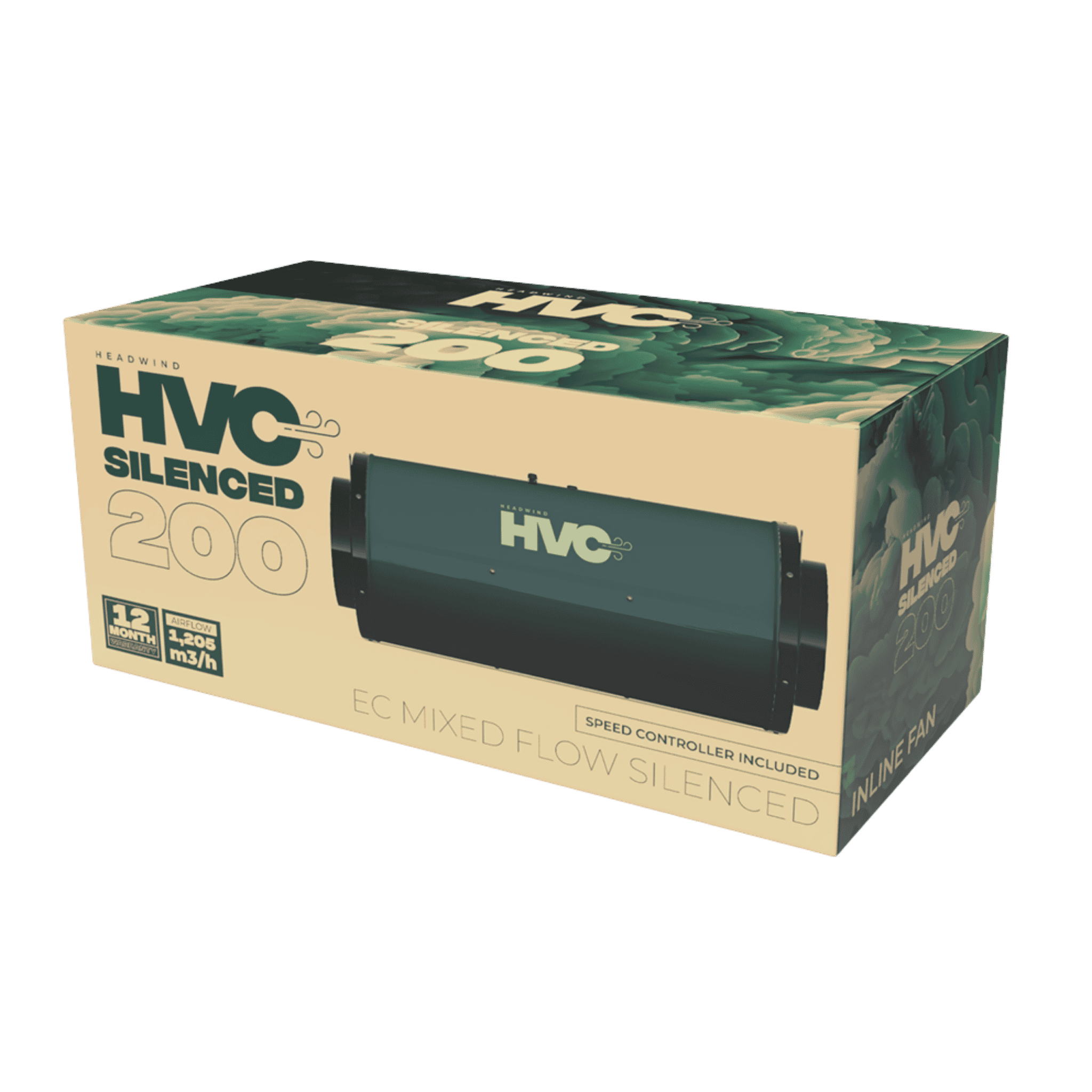

HVC Silenced Mixed Flow EC Fan 200 mm
Flange Size: 200 mm (8")
Flow Rate: 1205 m³/h
Wattage: 75 Watts
dBA: Coming Soon

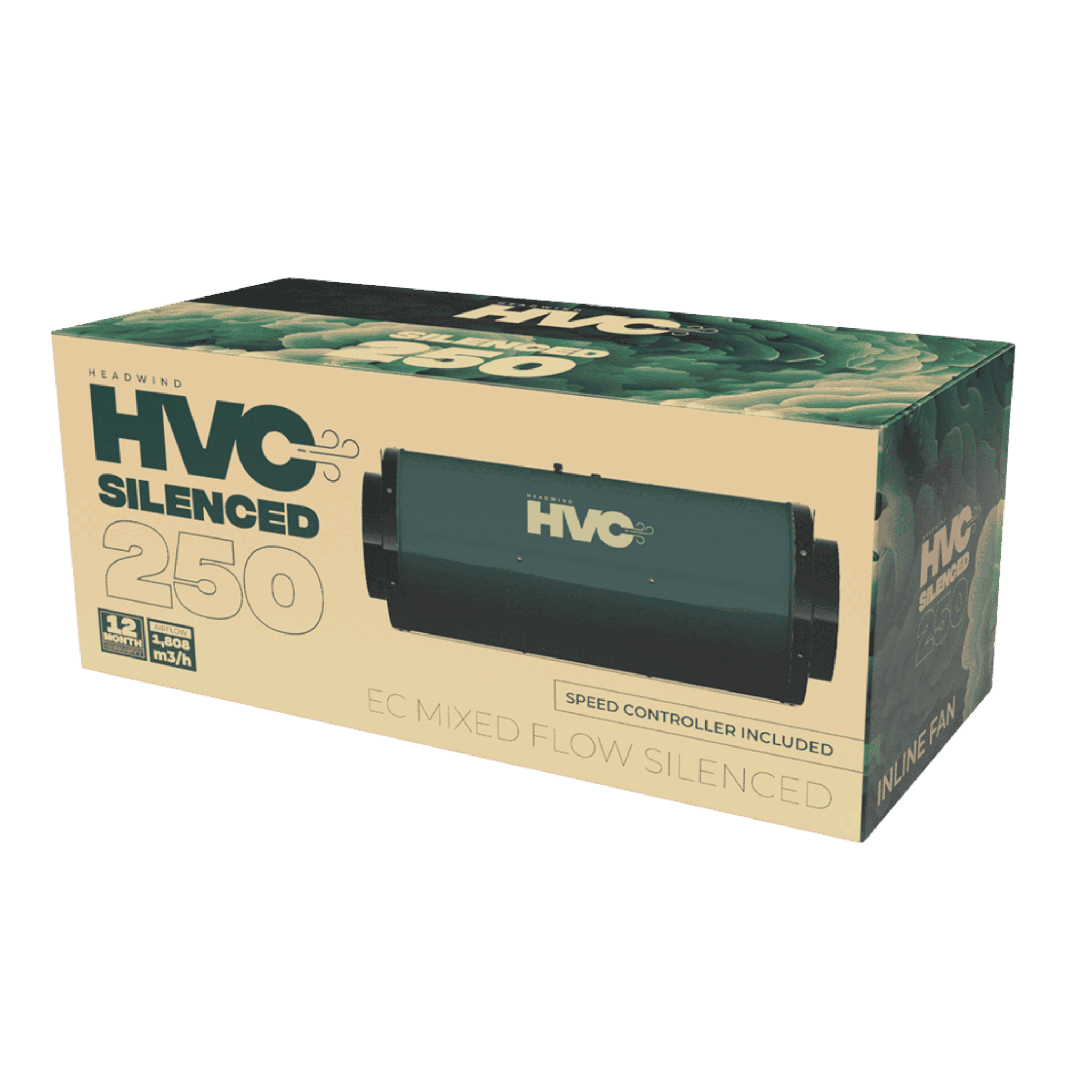

HVC Silenced Mixed Flow EC Fan 250 mm
Flange Size: 250 mm (10")
Flow Rate: 1808 m³/h
Wattage: 150 Watts
dBA: Coming Soon

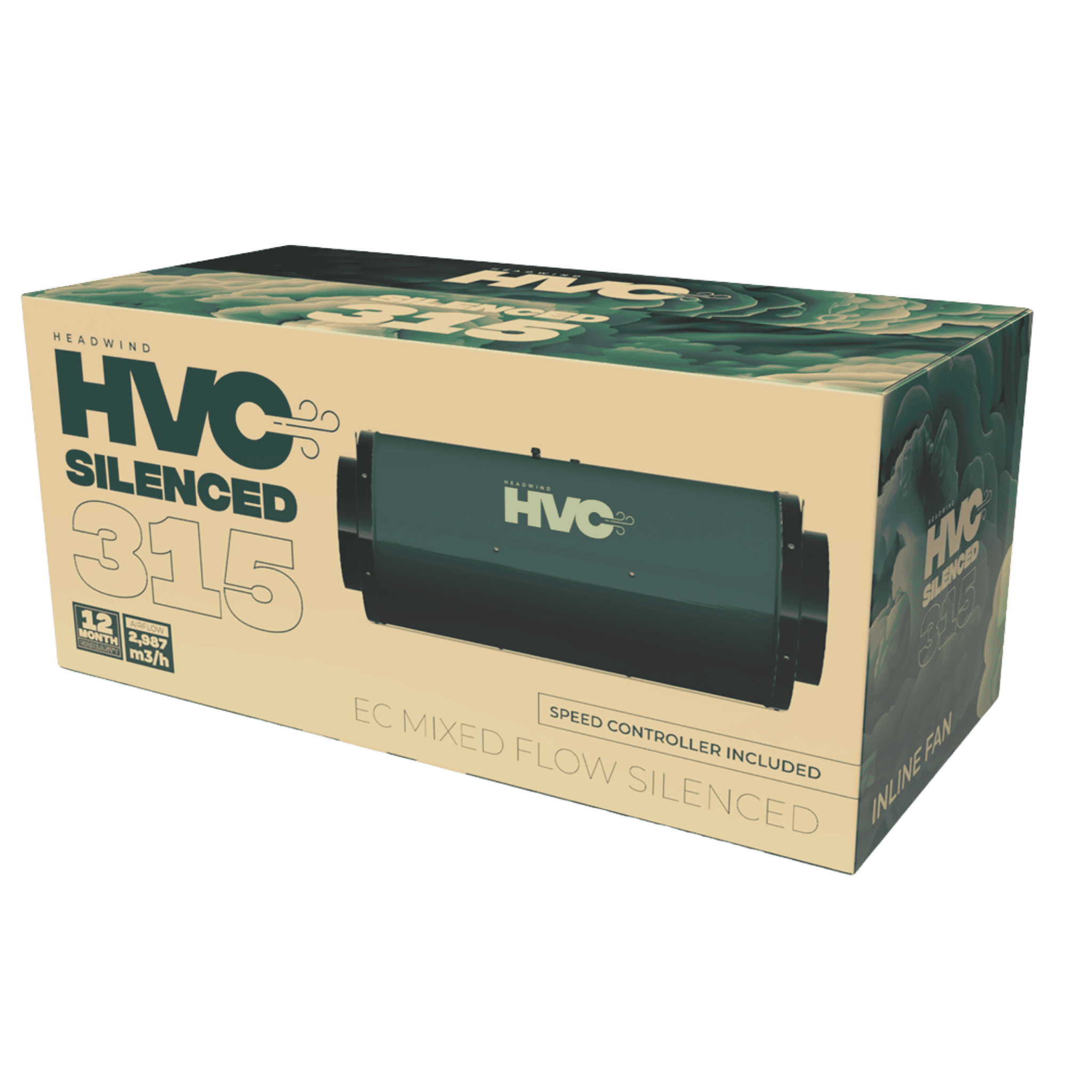

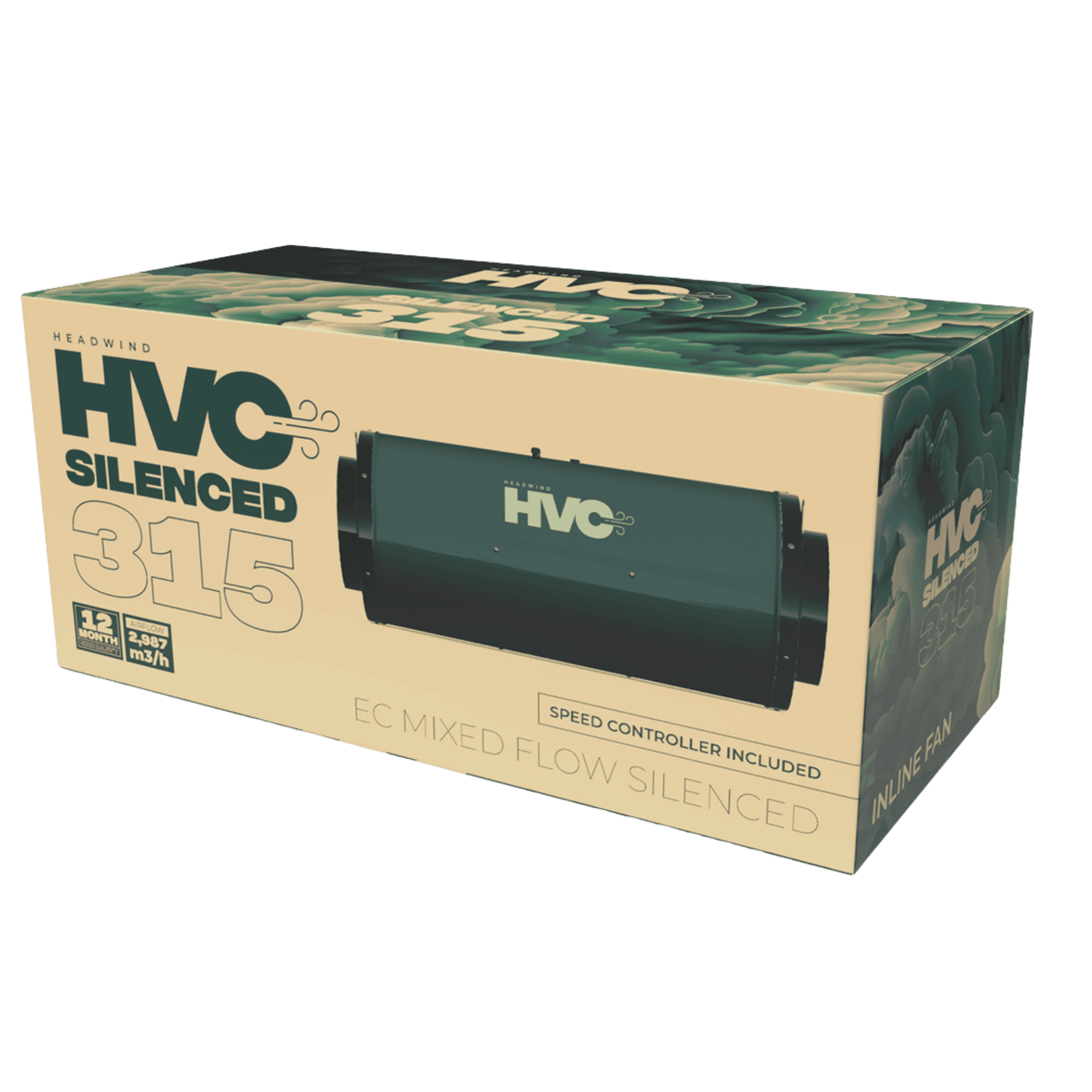

HVC Silenced Mixed Flow EC Fan 315 mm
Flange Size: 315 mm (13")
Flow Rate: 2987 m³/h
Wattage: 320 Watts
dBA: Coming Soon
