AC Infinity Multifan USB Centrifugal Blower

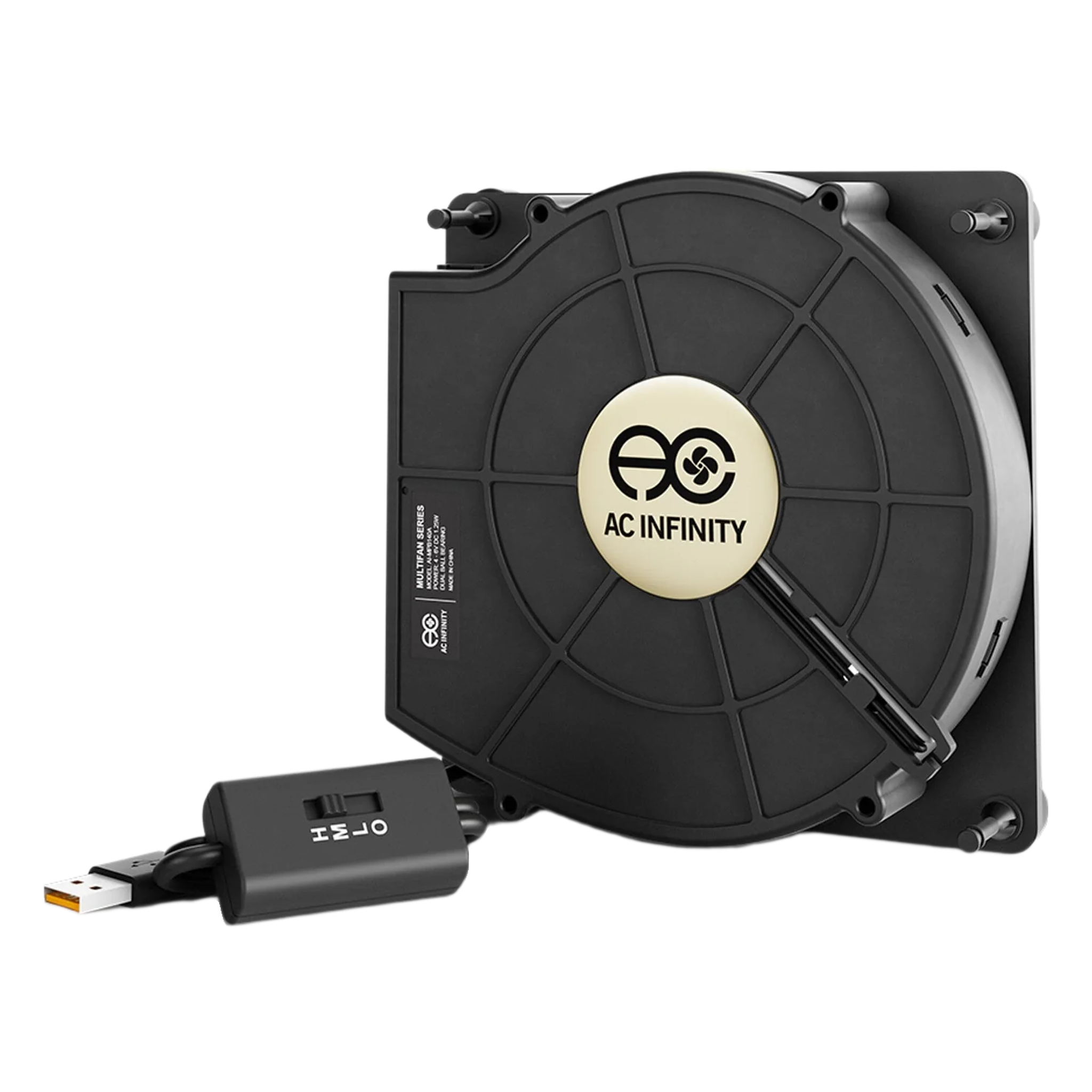

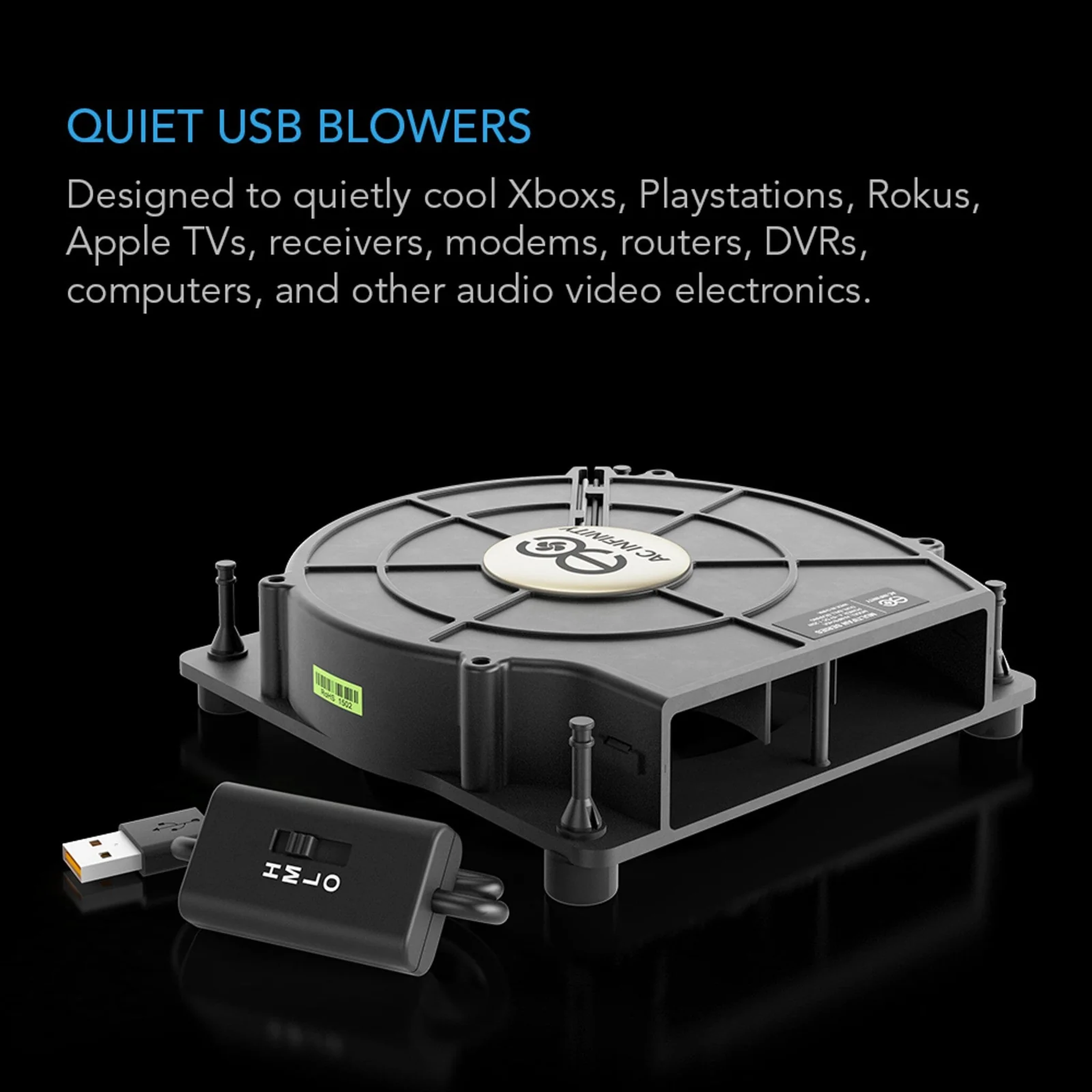

The AC Infinity Multifan USB Centrifugal Blower is the extraction specialist of the Multifan family, a 120 mm centrifugal fan in a case that stands just 3.3 cm (1.3 in) tall on its feet and sits flat on top of ventilated equipment. Where the AC Infinity Multifan USB Axial Fan needs open space above or beside gear to sweep air across it, the S2 works in shelves with no headroom at all, drawing air up through the ventilation holes in the top of the equipment beneath it and pushing it out through its rear vents - clearing heat from AV receivers, amplifiers, consoles and grow room control gear stacked in tight cabinets and racks.
Inside the low-profile case, a centrifugal impeller mounted on dual ball bearings turns at 1200 RPM, redirecting airflow through ninety degrees: intake underneath, exhaust out the back. The impeller moves 59 m³/h (35 CFM) at a manufacturer-rated 17 dBA, the quietest published figure in the Multifan range alongside the S1, while drawing 1.05 W (0.2 A) from any 5 V DC USB port rated 500 mA or higher. The body measures 12.0 x 12.0 x 2.5 cm (4.7 x 4.7 x 1.0 in) and rises to 3.3 cm (1.3 in) on four fixed silicone feet - unlike the detachable feet on the axial models, these stay fitted, protecting the surface of the equipment and preserving the intake gap beneath the case that the airflow path depends on. The bearings are rated to 67,000 hours L10 life, and a 132 cm (4 ft) cord runs from the USB plug through an inline three-speed controller, with a 69 cm (2 ft) run on to the blower.
A second USB port on the body chains up to four units from a single power source, each downstream blower following the controller nearest the supply, and the unit operates from -18 to 70°C (0 to 158°F) and 35 to 85% relative humidity. The S2 is an extraction device for ventilated gear rather than a circulation fan or a ducted exhaust - its 0.84 mm H2O static pressure is the lowest in the family, so where air genuinely has to be pushed through ducting, the AC Infinity Cloudline Pro S Mixed-Flow Inline Fan is the right tool. Sold as a single S2 unit. Its rear-exhaust layout takes heat straight off the top vents of whatever it sits on, in shelf spaces where no upward-blowing fan has room to operate.
NOTE: USB fans are ineffective in fully sealed enclosures - air must be able to flow in and out of the space through vents or openings. Multifan units are not designed for outdoor use, filter attachment or through-wall mounting, and splicing or hardwiring the USB cords voids the warranty.
A 3.3 cm tall centrifugal blower that sits on hot gear, pulling heat from its top vents and exhausting it rearward at 17 dBA.
Rear-Exhaust Extraction
Pulls hot air out of top ventilation holes and throws it clear behind the unit.
Slimline Low Profile
Slides into shelves and racks where an upward-blowing fan has no room to work.
Runs on USB
Powered by any USB port rated 500 mA or higher, drawing about one watt.
Back-Order
2 Years warranty · 30-day returns
Secure checkout
with
Buy with confidence
-
Talk to a real grower
Not sure it suits your setup? Call our Youngtown team on
0481 526 666.
-
Price Beat Guarantee
Found it cheaper elsewhere? We'll
beat any competitor's price by 5%.
-
Tasmania's own hydroponics shop
Buy online & collect in-store at 2/322 Hobart Rd, Youngtown TAS, usually within the hour.
AC Infinity Multifan USB Centrifugal Blower
Key Highlights
expand_more
Key Highlights
- Centrifugal impeller pulls air from beneath the unit and exhausts it through the rear vents, turning the airflow ninety degrees
- Stands 3.3 cm (1.3 in) tall on its feet, low enough for shelves and racks with no fan clearance above
- Moves 59 m³/h (35 CFM) at 1200 RPM with manufacturer-rated noise of 17 dBA
- Four fixed silicone feet protect the gear surface and preserve the under-body intake gap
- Second USB port on the body chains up to four units from a single power source
- Dual ball-bearing motor rated to 67,000 hours L10 life
- Runs from -18 to 70°C (0 to 158°F) at 35 to 85% relative humidity
Directions for Use
expand_more
Directions for Use
- Place the blower flat on top of the equipment so its underside intake sits over the gear's top ventilation holes, with the rear exhaust vents facing open space.
- Leave the four silicone feet fitted; they protect the equipment surface and maintain the intake gap beneath the unit.
- Plug the USB connector into a dedicated port rated 500 mA or higher.
- Set the inline controller to low, medium or high; the same switch provides the off position.
- To cool multiple stacked units, daisy-chain up to four blowers through the USB port on the body and set the chained units to high.
- Keep the rear exhaust clear and never stack objects on top of the blower.

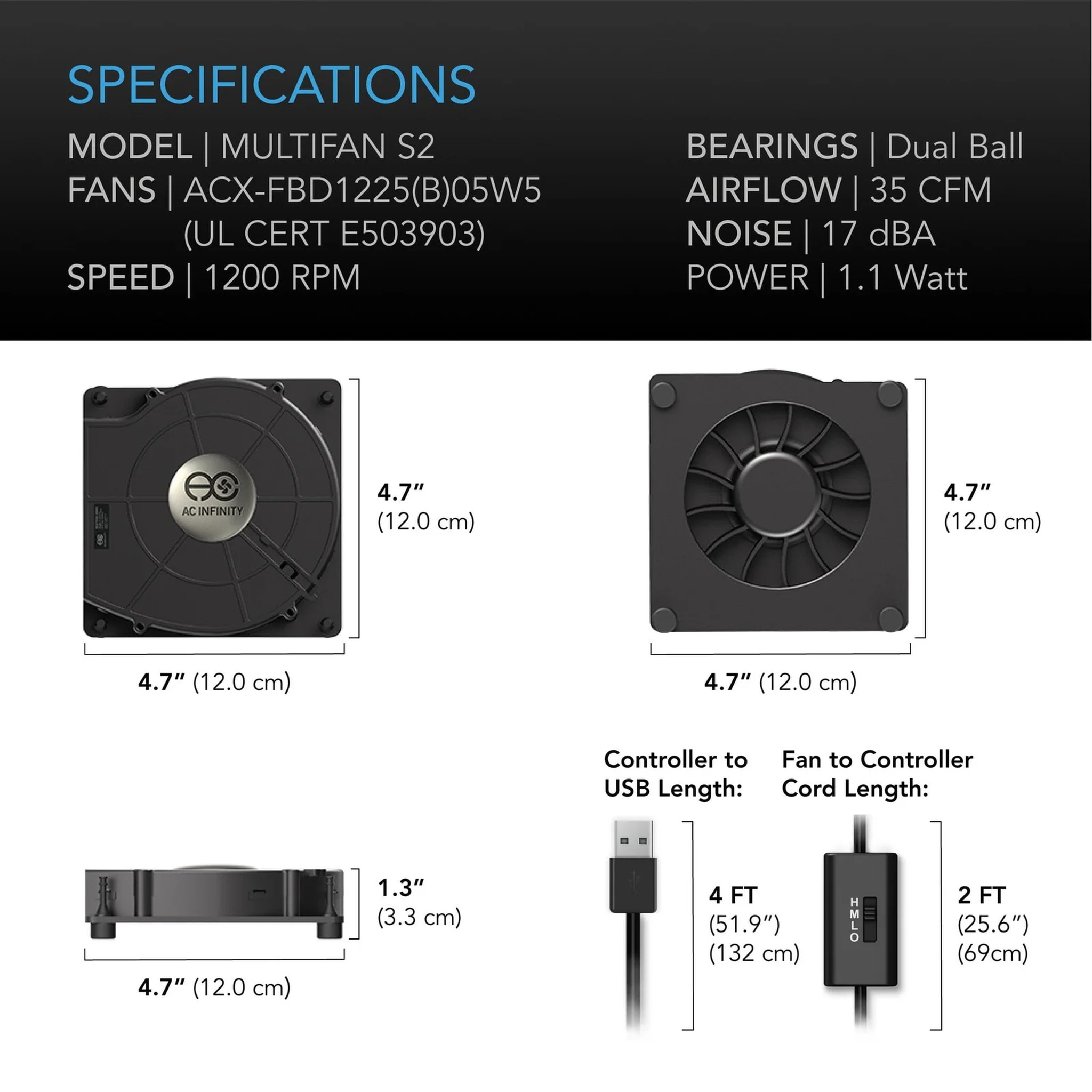

Technical Specifications
expand_more
Technical Specifications
- Product Model AI-MPB140A
- UPC Code 854759004495
- Fan Unit ACX-FBD1225(B)05W5
- Fan Type 120 mm centrifugal; intake underneath, rear exhaust
- Airflow 59 m³/h (35 CFM)
- Noise Level 17 dBA
- Fan Speed 1200 RPM
- Static Pressure 0.84 mm H2O
- Power 1.05 W (0.2 A)
- Power Input USB, 5 V DC (operating range 3 to 7 V DC); requires a port rated 500 mA or higher
- Speed Controller inline 3-speed (off / low / medium / high)
- Daisy-Chaining built-in USB port; up to four units per USB power source
- Bearings dual ball bearings, 67,000 hour L10 rated life
- Body Dimensions 12.0 x 12.0 x 2.5 cm (4.7 x 4.7 x 1.0 in)
- Height with Feet 3.3 cm (1.3 in)
- Feet four fixed anti-vibration silicone feet (non-detachable)
- Cord Lengths 132 cm (4 ft) USB plug to controller; 69 cm (2 ft) controller to blower
- Operating Environment -18 to 70°C (0 to 158°F), 35 to 85% RH
- Certifications UL cUL Recognized E503903 (fan unit, UL-507), CE, RoHS
- Warranty 2 Years
